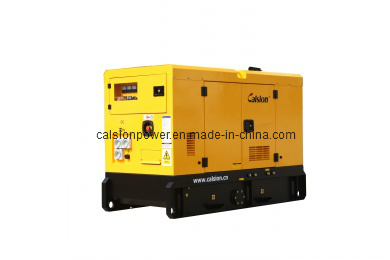

15kVA China Silent/Soundproof Generator
1, OEM, Reliable Quality.
2, CE / ISO Approved.
3, Very Competitive Price.
4, ATS, AMF, Synchronization Optional.
5. Open / Slient / Conatiner / Trailer / Vehicle Type Optional.
Supply Scope of Calsion Quanchai Diesel Generator Set:
1, Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Calsion sales.
2, Faraday Brushless Alternator, Single or double bearings are available, options for all kinds of adaptors and disc plate, IP23, Insulation Class H, AVR Fitted.
3, Power Generator with 8 Working Hours Base Fuel Tank(for the both of open & silent genset ), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4, Power Generator with Delixi Breaker, ABB Breaker for Option
5, Complete Operation/Maintenance Manuals for Power Generator/Engine/Alternator, Power Generator report
6, Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
|
Genset Model |
C15QS |
|
Engine Brand |
QUANCHAI |
|
Engine Model |
N485D |
|
Bore x Stroke (mm) |
85×95 |
|
Cylinder Number & Arrangement |
4 Inline |
|
Displacement ( liter ) |
2.156 |
|
Engine Speed (rpm) |
1500 |
|
Aspiration |
Natural |
|
Exhaust Fan Diameter(mm) |
φ410 |
|
Cooling Method |
Cooling with water tank and fan |
|
Combustion Type |
Electronically Controlled Fuel Injection |
|
Alternator Make |
Faraday |
|
Alternator Model: |
FD1D |
|
Nominal Rating(kW/kVA) |
12.8/16 |
|
Noise Level dB @ LP7M |
69 dB(A) |
|
Exciter Type |
American Basler-aleading global company in electrical excitation system |
|
Alternator Type |
Brushless |
|
AVR Model |
AVC63 |
|
Connection |
3 phrase,4 wire |
|
Protection Class |
IP23 |
|
Insulation Class |
H |
Calsion Power System Co Ltd established in 1996, specialized in generator development, manufacture, marketing and services. The company which covers 20 000 square meters is located in Economic and Technological Development Zone in Hefei, has a professional R&D center, a modern production base and excellent test system, with an annual capacity of 10, 000 units.
Calsion insist 'to the market demand-oriented, technology innovation as the driving force'. Calsion can provide every kind of emergency power system or used to meet various types of power solutions and systems integration building. Products include diesel generators, gasoline generators, gas generators, cooling systems, control systems, distribution systems and other series, including generator sets, including open type, silent type, truck, trailer, mobile generator and other types of stand-alone power Cover 1.5kW-3200kW. Providing users with sales and service through the worldwide network, meanwhile, the products are exported to Southeast Asia, the Middle East, Africa, and Europe, America and other countries and regions. Calsion's products are first-class reliability and durability, which can meet all kinds of harsh environments and high-altitude areas of need. Widely used in national defense, energy, electricity, transportation, communications, finance, medical, tourism, real estate, mines, factories and other fields. Each customer, each project has different needs, from the beginning, we provide the technical support system, find the best solution.
Calsion has a strict quality management system and obtained ISO9001/14001/OHSAS18001 certificate. With strict testing, excellent performance, brilliant quality and world-level technology, we got TER and CE certificate.
