Home Generator Products 152 Kw Copy Stamford Alternator (JDG274G)

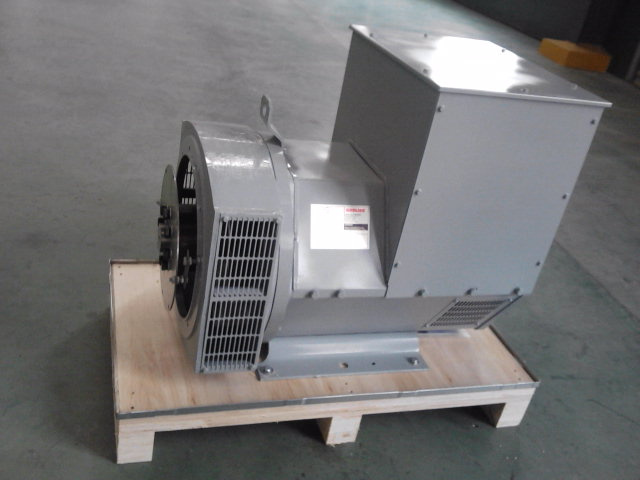

152 Kw Copy Stamford Alternator (JDG274G)

152 Kw Copy Stamford Alternator (JDG274G)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 2/Set
Pay Type: L/C,T/T
Specifications
1) Power range: 152kw
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option

Features
1) A. V. R. (Automatic Voltage Regulator)controlled
2) 12 wire reconnectable winding;
3) 100% famous brand copper wire;
4) 2/3 pitch windings avoid excessive neutral currents;
5) Dynamically balanced rotor and sealed-for-life bearings;
6) Permanent Magnet Generator(PMG) is available as an option;
7) Reliable supplier with Quality Materials, and strict Quality Controller (by QC Dept. )
8) Easily coupled with power networks or other genetator sets,
9) Balance rotor with single or two sealed ball bearings available,
10) Convenient installation and easy maintenance, easy access to terminal, rotating rectifier and coupling bolts,
11) Wide range of flange adaptor and single bearing coupling disc,

Parameters
1) Rated voltage 400V, 110V-690V for option
2) Three phase, single phase for option
3) 50Hz, 60h for option
4) 1500rpm, 1800rpm for option
5) Drip-leak-proof structure: IP22/23 protection class
6) Insulation class H
7) Adjusting rate of stable voltage≤ 1%
8) Transient state voltage≤ -15% - +20%
9) Wave aberration rate of voltage THD≤ 3%
10) Telephone harmony wave factor of telephone THF≤ 2%

Standards&Certifications
1) GODLIKE generators are comformity to International standards of IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
2) GODLIKE generators are Certified of CCC, CE, TUV, EPA, SGS

Solutions
1) Easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc,
2) Widely used in Industry, Commercial, real estate, hospital, hotel, railway, telecommunications, datacenters and mining etc

Warranty:
2 years, Godlike Power DHL new parts for replacement within 3 days upon customer's complaint.
Model 50hz / 1500rpm/3 phase 60 hz/ 1800rpm/ 3 phase
190  ~  454V 110 ~ 240V/230 ~ 690V
KVA KW KVA KW
JDG 184E 22.5 18 30 24
JDG 184F  27.5 22 35 28
JDG 184G 31.3 25 37.5 30
JDG 184H 37.5 30 46.9 37.5
JDG 184J 42.5 34 50 40
JDG 224C 42.5 34 55 44
JDG 224D 50 40 65 52
JDG 224ES 56.25 45 70 56
JDG 224E 60 48 75 60
JDG 224F 72.5 58 93 74.4
JDG 224GS 80 64 100 80
JDG 224G 85 68 103 82.4
JDG 224H 94 75 115 92
JDG 274C 100 80 125 100
JDG 274DS 120 96 146 117
JDG 274D 125 100 150 120
JDG 274ES 140 112 178 142
JDG 274E 150 120 187.5 150
JDG 274F 160 128 206 165
JDG 274G 190 152 225 180
JDG 274H 200 160 255 204
JDG 274J 230 184 300 240
JDG 274K 250 200 312.5 250
JDG 314C 250 200 320 256
JDG 314DS 275 220 344 275
JDG 314D 300 240 375 300
JDG314ESS 312.5 250 387.5 310
JDG 314ES 325 260 419 335
JDG 314E 350 280 440 352
JDG 314FS 380 304 475 380
JDG 314F 400 320 500 400
JDG 354C 450 360 594 475
JDG 354D 500 400 644 515
JDG 354ES 562.5 450 703 562.5
JDG 354E 600 480 750 600
JDG 354FS 625 500 738 590
JDG 354F 670 536 825 660
JDG 354G 700 560 862.5 690
JDG 404B 750 600 938 750
JDG 404C 800 640 1000 800
JDG 404D 910 728 1138 910
JDG 404E 1000 800 1250 1000
JDG 404F 1125 900 1390 1112
JDG 404G 1250 1000 1513 1210
Prod Model: JDG274G
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension: 1040*580*850mm
Weight: 635kg
Cooling Method: Air Cooled
Installation Method: Fixed
Type: Micro-Computer Control Automatic Diesel Generator
Output Type: AC Three Phase
