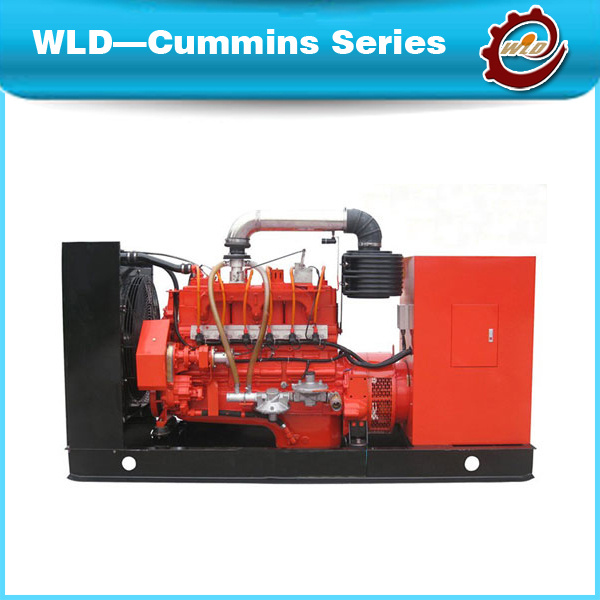

150kw/187.5kVA Cummins gas generator generator Parameter
Genset Specification:
-Genset Modle: HA855-G7
-Dimension: 2400*970*1500mm
-Weight: 2100kg
-Prime Power: 150kw/187.5kVA
-Rated current: 270A
-Rated Voltage: 400/230V
-Speed: 1500/1800rpm
-Frequency: 50/60Hz
-Output Type: AC Three Phase
-Power factor (Cos Phi): 0.8
-Altitude: ≤ 1000 m
-Base Fuel Tank: Eight hours(Standard)
-Standards: JB/T 1403-1999, GB/T 12501-1990
-Warranty: 1 Year or 1500 running hours
Engine Specification:
-Engine model: HA855-G7
-Type of Governor: Electronic governor
-Type: 6 cyclinder in line
-Bore*Stroke: 114× 135mm
-Compression ratio: 17: 1
-Voltage regulation: ± 0.5%
-Fuel consumption rate: 0.5g/kw. H
Alternator Specification:
-Brand: Stamford, Simens, Marathon, Farady at option
-AVR model: R448 V50
-Number of phase: 3
-Overspeed: 2250RPM
-Exciter type: AREP
-Sustained short circuit curren --300% (3 IN): 10s
-Insulation class: H
-protection class IP22
-Total harmonics (TGH/THC): < 3.5 %
-Wave form NEMA = TIF: < 50
-Wave form i. e. C. = THF: < 2%
-Bearing: Single
-Coupling: Direct
Control panel:
-Automatic control panel(AMF), LED display.
-our protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
-Trailer type
-Soundproof / water proof
-ATS(automatic transfer switch)
-water Heater
-Parallel system
-Remote system
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Genset model |
Engine model |
Prime power |
Rated current |
Cyl. |
Bore/ Stroke |
displacement |
oil capacity |
Fuel consumption rate g/kw.h |
Dimension |
Weight |
KW |
KVA |
(L) |
(L) |
(L×W×H)mm |
DC-G30 |
H4B-G |
30 |
37.5 |
54 |
4 |
102×120 |
3.9 |
11 |
0.5 |
1700×720×1200 |
800 |
DC-G50 |
H6B-G |
50 |
62.5 |
90 |
4 |
102×120 |
3.9 |
11 |
0.5 |
1800×750×1200 |
950 |
DC-G80 |
H6BT-G |
80 |
100 |
135 |
6 |
114×120 |
8.9 |
16 |
0.5 |
2250×800×1300 |
1250 |
DC-G100 |
H6CT-G |
100 |
125 |
180 |
6 |
114×120 |
8.9 |
20 |
0.5 |
2300×800×1300 |
1500 |
DC-G120 |
H855-GA |
120 |
150 |
216 |
6 |
114×135 |
8.9 |
24 |
0.5 |
2300×830×1300 |
1700 |
DC-G150 |
HA855-G7 |
150 |
187.5 |
270 |
6 |
114×135 |
8.9 |
24 |
0.5 |
2400×970×1500 |
2100 |
DC-G200 |
HAA855-G7 |
200 |
250 |
360 |
6 |
114×145 |
19 |
28 |
0.5 |
2600×970×1500 |
2500 |
DC-G300 |
HAA19-G6 |
300 |
375 |
540 |
6 |
140×152 |
19 |
38 |
0.6 |
3200×1050×1750 |
3000 |
DC-G400 |
H38-G2 |
400 |
500 |
720 |
12 |
159×159 |
37.8 |
60 |
0.6 |
3300×1400×1970 |
3700 |
DC-G500 |
HA38-G2A |
500 |
625 |
900 |
12 |
159×159 |
37.8 |
60 |
0.6 |
3500×1500×2000 |
4200 |
DC-G600 |
HA38-G5 |
600 |
750 |
1080 |
12 |
159×159 |
37.8 |
60 |
0.6 |
4000×1500×2000 |
5200 |
DC-G800 |
HA50-G3 |
800 |
1000 |
1440 |
16 |
159×159 |
50.8 |
100 |
0.6 |
4500×1750×2450 |
8200 |
DC-G1000 |
HA50-G8 |
1000 |
1250 |
1800 |
16 |
159×159 |
50.8 |
135 |
0.6 |
4500×1800×2350 |
9200 |
