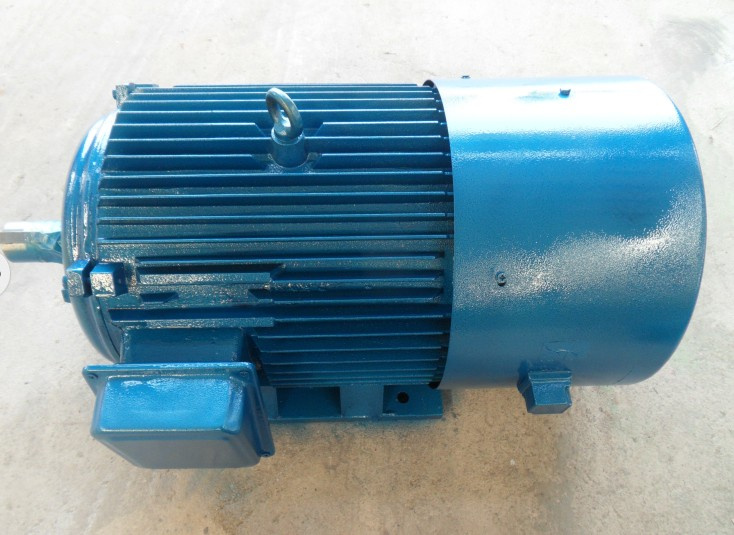

150kw~600kw Permanent Water Generator for Hydro Power Generator

Low speed permanent magnet water generator, leaving out speed-up machine, generating 50 Hz Power at low speed.
High efficient PM rotor, compact structure. No carbon brushes, do not need excitation, no spark, no excitation winding, high rotor intensity, no field control box, sample construction, high performance.
Protection class: IP44, avoid water, mud, dusty getting into the motor, long life, especially suitable for outdoor requirements.
No excitation control-box, sample construct, high performance.
Motors is running efficiently throughout the entire speed range, saving energy.
Using embedded rare-earth magnetic steel, especially suitable for turbulence, impact dynamic and reverse running.
The motor adopts wind-cooling or water-cooling, low temperature, adopts high speed oil-retaining bearing, maintenance-free, high reliability, long life-span.
You can change the motor voltage, speed, Power and other parameters, the out size of the motor can be also changed. You can use splined shaft, dual shaft, flange and other output styles

Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
150 kw	400V	125rpm	48	50Hz	11500Nm	16.9A	93.80%	3900kg
300 kw	400V	250rpm	24	50Hz	11500Nm	16.9A	93.80%	3900kg
450 kw	400V	375rpm	16	50Hz	11500Nm	16.9A	93.80%	3900kg
600 kw	400V	500rpm	12	50Hz	11500Nm	16.9A	93.80%	3900kg
