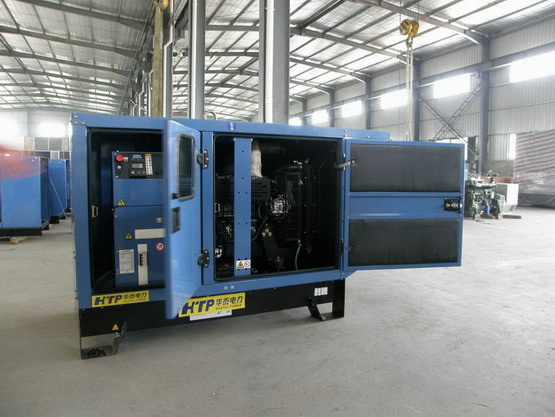

| Diesel Generator Set | |
| GENSET MODEL NOS. | H-C165 |
| Manufacturer | HUATAI POWER |
| Rated speed / frequency | 1500 rpm / 50 Hz |
| Continuous output (KVA /KW ) | 150/120 |
| Standby output (KVA /KW ) | 165/132 |
| Voltage, Phase and wire | 380v/220V, 3 Phase and 4 Wires |
| Rated power factor | 0.8 (lagging ) |
| Dimension(L*W*H) (mm) | 3550 x 1250x 1850(Silent) |
| Net Weight(kg) | 3240(silent) |
| Rating Definitions ( Operation at Altitude ≤ 1000m , Ambient temperature ≤ 40’ ) Continuous Power These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. | |
| Diesel Engine | |
| DIESEL ENGINE MODEL | 6BTA5.9-G2 |
| Engine Characters | 6 cylinders in line, 4-cycle ,PT direct injection |
| Engine Rated Power at 1500rpm (kW ) | 163 |
| Engine Standby Power at 1500rpm (kW ) | 180 |
| Aspiration | Turbocharged |
| Speed control system | High precision electrical speed controller system |
| Start mode | 24V DC, electric |
| Engine filter system | Dry air filter type, fuel filter, lube filter |
| Bore(mm) × Stroke (mm) | 102X120 |
| Compress ration | 16.5:1 |
| Fuel consumption (100% load) | 38.6L/H |
| Governor | Electronical |
| Battery Capacity | 120A/Hr |
| Starting/Min temperature | 4 ’ |
| Displacement | 8.3L |
| Cooling Method | Water-cooled |
| Cooling water capacity(L) | 31L |
| Lub oil Capacity (Liters) | 24L |
Fuel type | #0 diesel(natural temperature) |
Exhaust temp-full load prime | 553 ’ |
| ALTERNATOR | |
| ALTERNATOR MODEL | UCI274F |
| Manufacturer | STAMFORD |
| Alternator type | AC Synchronous |
| Excitation | Brushless,self exciting |
| Rated V/HZ/PF | 380V, 50HZ, 0.8lag, 3 phases 4 wires 1500RPM |
| Voltage regulation mode | auto |
| Alternator voltage regulation | ± 5% |
| Rated currency | 231A |
| Efficiency | 0.923 |
| Standards | IEC34-1 |
| Insulation/ Protection class | H/IP23 |
| Telephone influence factor | TIF<50/THF<2% |
| Max. Ambient Temperature | 40 ’ |
| Min. Ambient Temperature | -20 ’ |
| Max. altitude | 1000m |
| Weight | 550kg |
| Type: | Basic Diesel Generator |
|---|---|
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
