125kVA Cummins Industrial Electric Generator specification:
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 12 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF), LED display.
-Four protection systems
-Emergency stop
-DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
Other products we can supply:
As a big diesel generator OEM factory with 19-year export experience. We can provide Electric Generator, Diesel Generator, Portable Generator, Silent Generator, Natural Gas Generator etc. Under the brands of CUMMINS, DEUZT, CAT, SHANGCHAI(SEDC), YUCHAI etc. With power ranging 0.65-3000kVA. AC alternator under the brand of STAMFORD, MARATHON, FARADAY etc. We also offer spare parts for SFH, SEDC and HINO.
Weilida diesel generator brand's fleet includes Perkinsdiesel generator, perkins diesel generator, Catepiller diesel generator, Volvo diesel generator, Deutz diesel generator, Doosan diesel generator and Chinese brand Shangchai diesel generator, Jichai diesel generator, yuChai diesel generator...Which will satisfy with your comments

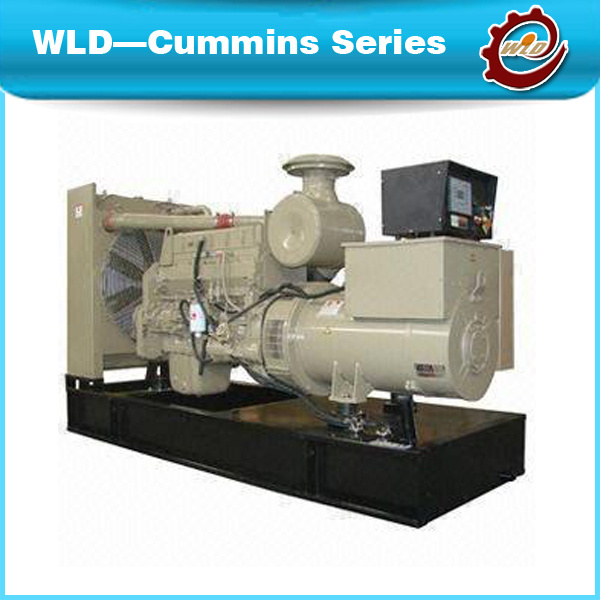

150kva Cummins diesel generator set Specification : |
Genset Modle |
DC120 |
Dimension(mm) |
2150×850×1500 |
Weight(kg) |
1485 |
Prime Power(kw/kva) |
120/150 |
Standby Power(kw/kva) |
132/165 |
Rated current (A) |
216 |
Powerfactor(CosPhi) |
0.8 |
Altitude |
≤1000m |
Base Fuel Tank |
Eight hours(Standard) |
Engine Features: |
Engine model |
6BTAA5.9-G2 |
Type of Governor |
Electronic governor |
Type |
6 cyclinder in line |
Bore*Stroke(mm) |
102*120 |
Compression ratio" |
17:1 |
Voltageregulation |
±0.5% |
fuel consumption rate(g/kw.h) |
≤210g/kw.h |
Alternator Features: |
brand |
Stamford, Simens, Marathon, Farady at option |
Voltage control |
AVR |
Numberofphase |
3 |
Overspeed |
2250RPM |
Excitertype |
AREP |
Insulation class |
H |
protection class |
IP22/IP23 |
Totalharmonics (TGH/THC) |
< 3.5 % |
Waveform NEMA = TIF |
<50 |
Waveform I.E.C. = THF |
<2% |
Bearing |
single |
Coupling |
Direct |
