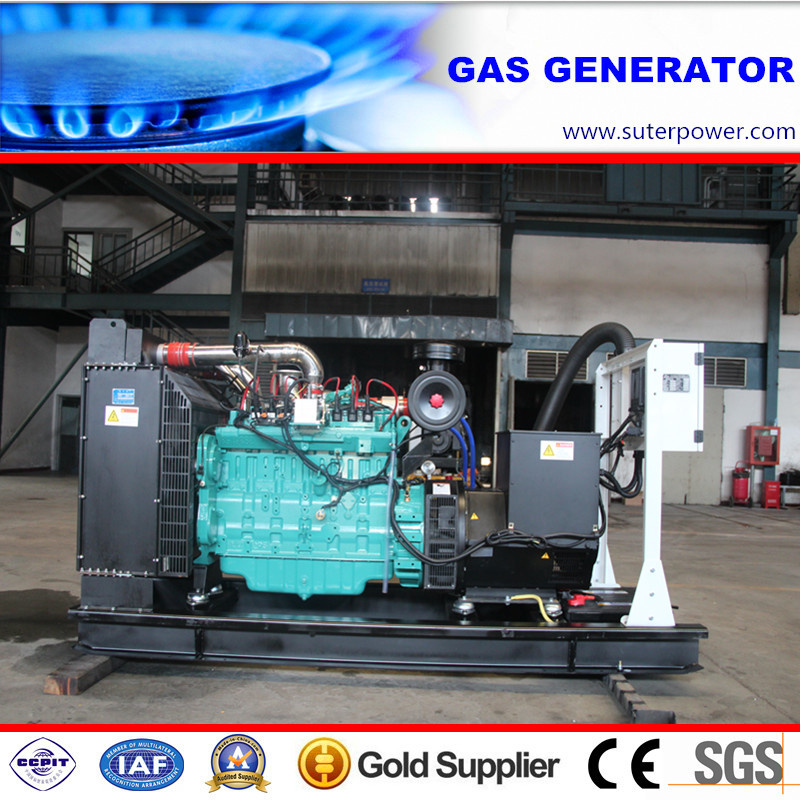

150kVA/120kw Biogas/LNG/CNG/LPG/Natural Gas Generator with CE

150kVA/120kw Biogas/LNG/CNG/LPG/Natural Gas Generator with CE
Price: US $ 34200-36200/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T
At Suter Power,we offer a full line of Gas Generator include LNG Gas Generator,CNG Gas Generator,Biogass Generator and Natural Gas Generator with high quality and built-in-reliablity from 20kW to 120kW.
At Suter Power,we adopt CUMMINS ENGINE BODY with international famous Germany BOSCH engine govenor,USA IMPCO MIXER,ITALY MADAS FILTER and pressure-regulaing Valve etc with our professional engineer team to garantee our Gas Generator quality.
For more information about Gas Generator,please contact .
General Data
Standby Ratings:150 kVA / 120 kW
Prime Rating:138 kVA / 110 kW
Hertz50 Hz
Voltage400 / 230 V
Fuel typeNatural Gas,CBM,Biogas,LNG,CNG
Methane contentMZ >=70
Temp of Mixture cooler< 50ºC
Oxycarbide Nox(mg/Nm3)With Euro Standards(<= 500 mg)
Methane Volume content>=50%
Hydrogen sulfide H2S<=20 mg/Nm3
Start typeDC 24V
Gas consumption
100% Load35.8 Nm3/h
75% Load29.1 Nm3/h
50% Load21 Nm3/h
Test Condition
Air intake temp25ºC
Air intake pressure100Kpa
Fuel typeNatural Gas
Air intake resistance254 mmHg
Exhaust back pressure76 mmHg
Lubricating OilStandard
Features of Gas generators with Cummins Engine body:
1.International Warranty Service
2.Short delivery time, as we always have in stock
3.With ISO9001 & CE certification
4.Durability & Low Noise Cummins Engine
5.Coupled with Stamford alternator or Chinese alternator(Mecc,Leory-Somer,Marthon as optional)
6.International famous brand parts like governor,valve etc
7.Low Exhaust Emission
8.Rigorous test including 50% load,75% load,100% load and 110% load
Gas Engine
Engine ModelJY6C8.3G135
Cylinder Arrangement6 In line
Aspiration MethodTurbocharged
Engine Power at Rated RPM:135 kW at 1500 RPM
Displacement8.3 L
Bore×Stroke114×135 mm
Compression Ratio10.5:1
Exhaust temp496ºC
Gas inlet pressure50-240 mbar
Ignition SystemKINGBAND Engine Control System
GovernorGermany BOSCH
Governor ratio<=1%
Gax Mixing SystemUSA IMPCO MIXER
Spark PlugGermany BOSCH
Fuel FilterItaly MADAS
Pressure-Regulating ValveItaly MADAS
Gas safety electromagnetic valveKINGBAND
Air Intake System
Air Flow Rate110 L/sec
Exhaust System
Max Exhaust Back Pressure76 mmHg
Lubricating System
Mini Oil capacity24 L
Mini Oil pressure207Kpa at full load,69Kpa at idle speed
Oil gradeAbove 15W-40CF
Cooling System
Coolant capacity12 L(only Engine)
Max coolant temp105ºC
Cooling typeWater cooled
Thermostat open temp83-95ºC
Standard configuration Gas generators by Cummins engine:
1) Gas engine
2) Mecc alternator(Stamford,Leory-Somer & China alternator for option)
3) Deepsea DSE7320 or ComAq control panel with AMF fuction,ATS for option
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank
6) Anti-Vibration Mounted System
7) Battery and battery charger
8) Industrial silencer and flexible exhaust hose

Reason 1:
Reliable Manufacturer:
As a specialized gas generator manufacturer, its high quality gas generators have been working well in many fields including railways, oil fields, Schools, hospitals, industries, tall buildings, sea ports and military bases etc.Meanwhile we attach importance to environment protection persistently, and also is one of the few companies which strictly follow ISO14001 Environmental Management System in diesel generators manufacturing industry.Nowadays, with great enthusiasm and persistence efforts, all of us are working toward the goal of being one leading enterprise in the international lines
Reason 2:
High quality:
As a specialized gas generator manufacturer, we have a quality control and inspection system to monitor the whole process from raw materials to delivery, only raw materials that passed our sophisticated tests can be put into production.Before products departure, each diesel generator must be tested with no load, with load, overload.Our quality system is even stricter than both domestic and abroad standards:GB/T2820, GB1105, YD/T502, ISO8525-3, ISO3046, ISO8525.
Reason 3:
Low cost:
As a specialized gas generator manufacturer, we have good long-term relationship with our reliable Engine & Alternator partner.Meanwhile, most parts of diesel generator are manufactured by ourselves, we design and manufacture control system, soundproof canopy, trailer etc according to our clients' needs.
Reason 4:
After-sell service:
1.We are available for a 24-hour Tel or Email service, you can leave us a message whenever you want.
2.We provide one-year or 1000 hours running Guarantee for all the products we supplied.
3.We would like to send our technicians abroad for installing the generator sets if required.
Adhering to the motto of "24hrs Power Supply", we will always stay with your needs.
Prod Model: JY6C8.3G135
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Body: Cummins
Genset Power: 150kVA/120kw
More Certificate: UL, Cu
Voltage: 400 / 230 V
Methane Content: Mz >=70
Gas Source: Gas
Certification: CSA
Suter Power Company is one of the leading world-wide producer and exporter for power generators, Industry washing machinery and ATV/UTV etc. We have obtained the ISO9001: 2008 Quality Management System, ISO14001 Environmental Management System and CE certificate. Suter Power's ATV/CUV with American EPA and European ECE E-MARK certificate.

Suter Power utilizes in its manufacturing process, only the highest quality components on the market from the most recognizable manufacturers including but not limited to Cummins, Perkins, Volvo, Mitsubishi, YAMAHA, MAN, Stamford, Leroy Somer and Mecc alte etc. We offer power generator power from 2kW to 2000kW include diesel generator, gasoline generator & gas generator. Suter Power's number one priority is to supplying quality power generators to our customers.

After over 20 years' development, we own large numbers of professional personnel, advanced manufacturing equipment and test facilities with an integrated service system of design, manufacture, installation, debugging, marketing and after-sales service.

Dear Customers and Friends, you are warmly welcome to visit Suter Power and many thanks for your cooperation in future. Let's go forward together in the fields of power generations, industry washing machinery and ATV/UTV for sales promotion, installment, commission and after sale services.
