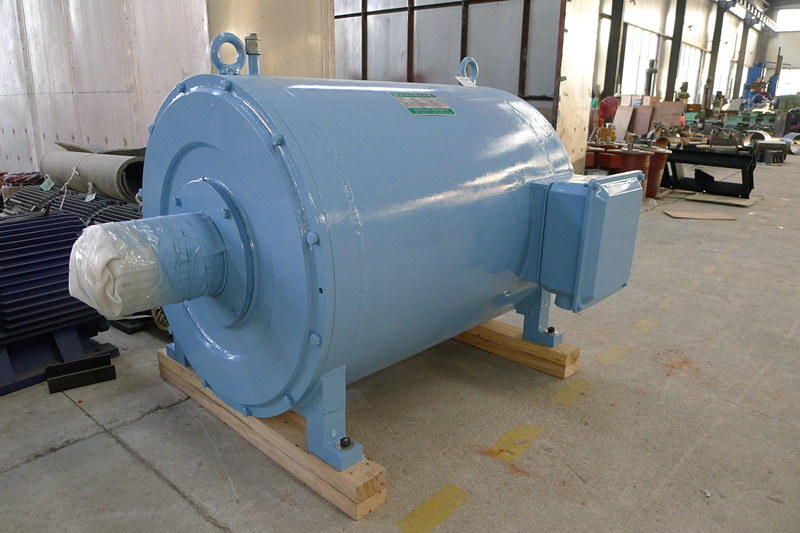

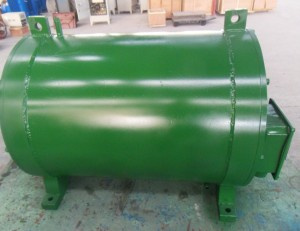

High efficiency permanent magnet generator from 1kw to 1000kw, 1500rpm or low rpm. Direct drive, no need excited.
Our company is specialized in supply of wind generator, solar panel, electric motors, street lamp and so on in global market. Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
| Power | Voltage | 50Hz Speed | Current | Power factor | Efficiency | Rated torque | Peak torque | Model | Length | Weight |
| 0.2kw | 220V | 1500RPM | 0.59A | 0.98 | 91.00% | 1.27Nm | 2.5N. m | Y80-4M | 295 | 5kg |
| 0.5kw | 220V | 1500RPM | 1.49A | 0.98 | 91.00% | 3.18Nm | 6N. m | Y80-4M | 295 | 6kg |
| 0.8kw | 220V | 1500RPM | 2.38A | 0.98 | 91.10% | 5.09Nm | 10N. m | Y80-4M | 295 | 7kg |
| 1 kw | 220V | 1500RPM | 2.98A | 0.98 | 91.20% | 6.37Nm | 13N. m | Y80-4L | 295 | 7.5kg |
| 1.5kw | 220V | 2000RPM | 4.47A | 0.98 | 91.30% | 7.12Nm | 15N. m | Y80-4L | 295 | 9kg |
| 2kw | 220V | 3000RPM | 5.96A | 0.98 | 91.40% | 6.37Nm | 13Nm | Y80-4L | 295 | 5kg |
| 2.5kw | 220V | 3500RPM | 7.45A | 0.98 | 91.50% | 8.28Nm | 16Nm | Y80-4L | 295 | 6kg |
| 3 kw | 220V | 4500RPM | 8.95A | 0.98 | 91.60% | 6.37Nm | 13Nm | Y80-4L | 295 | 7kg |
| 4 kw | 220V | 6000RPM | 11.93A | 0.98 | 91.60% | 6.37Nm | 13Nm | Y80-4L | 295 | 9kg |
| 1 kw | 220V | 1500RPM | 2.9A | 0.98 | 91.50% | 6.37Nm | 12Nm | Y90-4M | 340 | 20kg |
| 1.5kw | 220V | 1500RPM | 4.4A | 0.98 | 91.60% | 9.55Nm | 20Nm | Y90-4L | 340 | 22kg |
| 2 kw | 220V | 1500RPM | 5.8A | 0.98 | 91.60% | 12.7Nm | 25Nm | Y90 -4L | 340 | 25kg |
| 2.5 kw | 220V | 1500RPM | 7.3A | 0.98 | 93.50% | 35.0Nm | 65Nm | Y100-4M | 475 | 20kg |
| 3 kw | 220V | 1500RPM | 8.7A | 0.98 | 93.60% | 47.8Nm | 100Nm | Y100-4L | 515 | 22kg |
| 4 kw | 220V | 1500RPM | 11.7A | 0.98 | 93.60% | 70.0Nm | 150Nm | Y100-4L | 515 | 25kg |
| 8kw | 380V | 7000RPM | 13.2A | 0.98 | 93.60% | 10.7Nm | 20Nm | Y100-4L | 475 | 25kg |
| 4 kw | 380V | 1500RPM | 6.8A | 0.98 | 92.80% | 25.5Nm | 50Nm | Y112-4M | 400 | 33kg |
| 5 kw | 380V | 1500RPM | 8.4A | 0.98 | 93.00% | 31.8Nm | 60Nm | Y112-4L | 400 | 26kg |
| 5.5 kw | 380V | 1500RPM | 9.2A | 0.98 | 93.10% | 35.0Nm | 70Nm | Y112-4L | 400 | 36kg |
| 6 kw | 380V | 1500RPM | 10.1A | 0.98 | 93.20% | 38.2Nm | 80Nm | Y112 - 4L | 400 | 30kg |
| 5.5 kw | 380V | 1500RPM | 9.1A | 0.98 | 93.50% | 35.0Nm | 65Nm | Y132-4M | 475 | 65kg |
| 7.5 kw | 380V | 1500RPM | 12.4A | 0.98 | 93.60% | 47.8Nm | 100Nm | Y132-4L | 515 | 76kg |
| 11kw | 380V | 1500RPM | 18.1A | 0.98 | 93.60% | 70.0Nm | 150Nm | Y132-4L | 515 | 83kg |
| 4.5 kw | 380V | 1000RPM | 9.1A | 0.98 | 93.50% | 35.0Nm | 65Nm | Y132-4M | 475 | 65kg |
| 5.5 kw | 380V | 1000RPM | 9.0A | 0.98 | 93.60% | 47.8Nm | 100Nm | Y132-4L | 515 | 76kg |
| 7.5kw | 380V | 1000RPM | 12.2A | 0.98 | 93.60% | 70.0Nm | 150Nm | Y132-4L | 515 | 83kg |
| 13 kw | 380V | 1500RPM | 21.2A | 0.98 | 93.50% | 82.8Nm | 200Nm | Y160-4M | 605 | 103kg |
| 15 kw | 380V | 1500RPM | 24.5A | 0.98 | 93.50% | 95.5Nm | 200Nm | Y160-4M | 605 | 110kg |
| 18.5 kw | 380V | 1500RPM | 30.2A | 0.98 | 93.60% | 117.8Nm | 240Nm | Y160-4L | 650 | 117kg |
| 20kw | 380V | 1500RPM | 32.6A | 0.98 | 93.60% | 127.3Nm | 270Nm | Y160-4L | 655 | 121kg |
| 22kw | 380V | 1500RPM | 35.8A | 0.98 | 93.60% | 140Nm | 280Nm | Y160-4L | 660 | 125kg |
| 22 kw | 380V | 1500RPM | 35.7A | 0.98 | 93.50% | 140.1Nm | 290Nm | Y180-4M | 670 | 175kg |
| 25 kw | 380V | 1500RPM | 40.6A | 0.98 | 93.60% | 159.2Nm | 330Nm | Y180-4L | 670 | 182kg |
| 30 kw | 380V | 1500RPM | 48.5A | 0.98 | 93.60% | 191.0Nm | 400Nm | Y180-4L | 710 | 190kg |
| 35 kw | 380V | 1500RPM | 56.2A | 0.98 | 93.50% | 222.8Nm | 450Nm | Y200-4M | 775 | 250kg |
| 37 kw | 380V | 1500RPM | 59.6A | 0.98 | 93.60% | 235.7Nm | 480Nm | Y200-4M | 775 | 260kg |
| 40 kw | 380V | 1500RPM | 64.5A | 0.98 | 93.60% | 254.7Nm | 520Nm | Y200-4M | 775 | 275kg |
| 45 kw | 380V | 1500RPM | 71.2A | 0.98 | 93.50% | 286.5Nm | 580Nm | Y200-4M | 815 | 285kg |
| 50 kw | 380V | 1500RPM | 80.0A | 0.98 | 93.60% | 318.3Nm | 630Nm | Y225-4L | 815 | 300kg |
| 55 kw | 380V | 1500RPM | 88.1A | 0.98 | 93.60% | 350.2Nm | 710Nm | Y225-4L | 845 | 320kg |
| 60 kw | 380V | 1500RPM | 96.1A | 0.98 | 93.50% | 382Nm | 770Nm | Y250-4M | 605 | 403kg |
| 75 kw | 380V | 1500RPM | 120.2A | 0.98 | 93.60% | 477.5Nm | 960Nm | Y250-4M | 650 | 415kg |
| 80 kw | 380V | 1500RPM | 127.9A | 0.98 | 93.60% | 509.3Nm | 1050Nm | Y250-4M | 650 | 423kg |
| 18.5 kw | 1140V | 375RPM | 30.4A | 0.98 | 93.00% | 471.1Nm | 800Nm | Y250-4M | 650 | 413kg |
| 22 kw | 1140V | 375RPM | 36.3A | 0.98 | 93.30% | 560.2Nm | 1000Nm | Y250-4M | 650 | 413kg |
| 90 kw | 380V | 1500RPM | 143.6A | 0.98 | 93.50% | 573Nm | 1200Nm | Y280-4M | 1000 | 560kg |
| 110 kw | 380V | 1500RPM | 175.4A | 0.98 | 93.60% | 700.3Nm | 1480Nm | Y280-4M | 1000 | 610kg |
| 130 kw | 380V | 1500RPM | 207.2A | 0.98 | 93.60% | 827.7Nm | 1700Nm | Y280-4M | 1000 | 620kg |
| 150 kw | 380V | 1500RPM | 238.6A | 0.98 | 93.50% | 955Nm | 2000Nm | Y280-4M | 1050 | 660kg |
| 180 kw | 380V | 1500RPM | 284.8A | 0.98 | 93.60% | 1146.0Nm | 2200Nm | Y280-4L | 1050 | 680kg |
| 200 kw | 380V | 1500RPM | 315.8A | 0.98 | 93.60% | 1273.3Nm | 2500Nm | Y280-4L | 1050 | 690kg |
| 250 kw | 380V | 1500RPM | 395.6A | 0.98 | 93.50% | 1591Nm | 3000Nm | Y315-4M | 1310 | 1100kg |
| 280 kw | 380V | 1500RPM | 443.1A | 0.98 | 93.60% | 1782Nm | 3400Nm | Y315-4L | 1340 | 1170kg |
| 300 kw | 380V | 1500RPM | 474.8A | 0.98 | 93.60% | 1910Nm | 3600Nm | Y315-4L | 1340 | 1220kg |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
