13X Molecular Sieve for Air Seperation

13X Molecular Sieve for Air Seperation
Price: US $ 1400-1500/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Ton
Pay Type: L/C,T/T,D/P,Western Union
Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. It will adsorb molecules with a kinetic diameter of less than 9 Angstrom (0.9 nm) and exclude those larger.
It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen.

Typical Chemical Formula
Na2O. Al2O3. (2.8± 0.2) SiO2. (6~7)H2O
SiO2: Al2O3 ≈ 2.6-3.0

Application
1) Removal of CO2 and moisture from air (air pre-purification) and other gases.
2) Separation of enriched oxygen from air.
3) Removal of mercaptans and hydrogen sulphide from natural gas.
4) Removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams (LPG, butane, propane etc. )
5) Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams).
6) Removal of n-chained compositions from aromatics.
7) Production of bulk oxygen in PSA units.
8) Production of medical oxygen in small scale oxygen concentrators

Regeneration:
JINCHENG molecular sieve Type 13X can be regenerated by either heating in the case of thermal swing processes; Or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 13X molecular sieve, a temperature of 250-300° C is required. A properly regenerated molecular sieve can give moisture dew points below -100° C, or mercaptan or CO2 levels below 2 ppmv.
The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process

Size

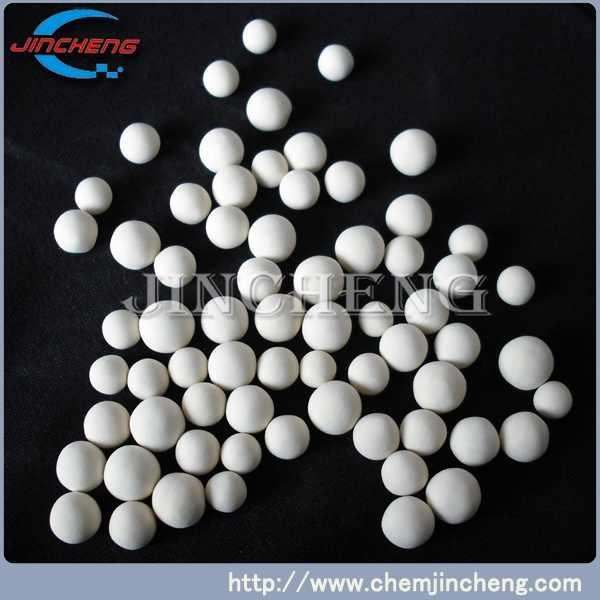

13X - Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh), 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6, 3.2.

Attention
To avoid damp and pre-adsorption of organic before running, or must to be reactivated
ItemUnitTechnical data

Shape
 PelletSphere

Diameter

mm

1.5-1.7

3.0-3.3

1.7-2.5

3.0-5.0

Size ratio up to grade

%

≥98

≥98

≥96

≥96

Bulk density

g/ml

≥0.61

≥0.61

≥0.64

≥0.64

Wear ratio

%

≤0.10

≤0.20

≤0.10

≤0.10

Crushing strength

N

≥30/cm

≥45/cm

≥25/piece

≥65/piece

Static water adsorption

%

≥23.5

≥23.5

≥23.5

≥23.5

Static CO2 adsorption

%

≥18

≥18

≥18

≥18

Water content, as shipped

%

≤1.5

≤1.5

≤1.5

≤1.5
Prod Model: 13X
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1.7-2.5mm, 3-5mm
Certificate: ISO9001
Type: 13X
Shape: Beads
Sorbent: Molecular Sieves
Desiccant: Chemical Desiccant
Kind: Molecular Sieve Desiccant
Shenzhen Jincheng Chemical Packing Co., Limited was established in 1989, which has rich technical force and advanced equipments. Products including: Insulating Glass Desiccant, Activated Alumina, Ceramic Balls, Molecular Sieve, Silica Gel, Activated Carbon, Alumina Balls, all kinds of chemical packings with material of ceramic, plastic and metal. Porducts are tested and certificated by the public authority of quality testing & inspection. We have implemented a quality assurance program based on the formalized requirements of ISO9001, and our customers are not only from domestic market, but also from worldwide such as South America, Asia, Europe, Africa and Middle East.

Our company has fully developed the spirit of "Teamwork, Dedication, Honesty, Practical, Innovation and Initiative", created an atmosphere of "Embarking on people" and "Respecting the talent, knowledge and characteristics of staff", and implemented the quality principle of "Accurate Design, Meticulous Production & Excellent Service". Keep pace with the times, build up long-term relationships with the partners, make every effort to attract first class staff from home and abroad, strive for the prosperous future of Jiangxi Jincheng.

If you are interested please feel free to send your inquiry for more detailes.
