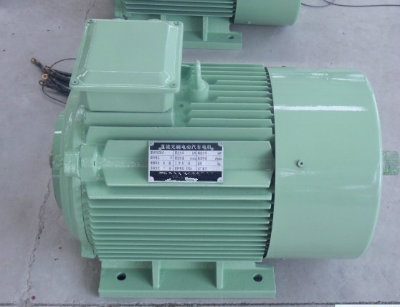

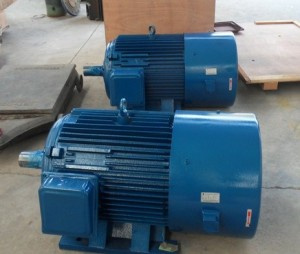

13kw-22kw-1500rpm Permanent Magnet Wind Generator

13kw-22kw-1500rpm Permanent Magnet Wind Generator
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Brushless structure. Compose speed regulation system with variable frequency. It can realize speed regulation system under constant torque, which is much improved comparing with other existing variable frequency speed regulation motors.

Motor with high efficiency, especially can operate efficiently in the whole speed range, saving energy and reducing long-term operating costs. The cost of the motor can be taken back in one and a half year by saving power.

The motor and variable frequency converters compose speed regulation system. It can operate in the same pace of the frequency. Do not have slip difference problem, high control accuracy.

Without encoders or rotary transformers, motors can compose open loop control systems with frequency converters. Motor connect with converter only by 3 power cables, improving the reliability, especially suitable for bad outdoor environments such as oil fields, mines or other circumstances which require high reliability.

With encoders or rotary transformers, the motors and frequency converters can compose closed loop control system, having high accuracy of speed control, especially suitable for the situations which have special requirements of speed, such as numerical control machines.

The voltage is 220V or 380V, 50Hz, 3 phase, F insulation, B3 or B35 installations, Protection class: IP54.

Motor's power factor is nearly 1, improving the Q factor of the network. Do not need power factor compensators.

Small electric current, saving power transmission and distribution capacity, extending the system operation life.

Can achieve soft startup, soft stop, stepless speed regulation. The speed can be customized according to the requirements of users.

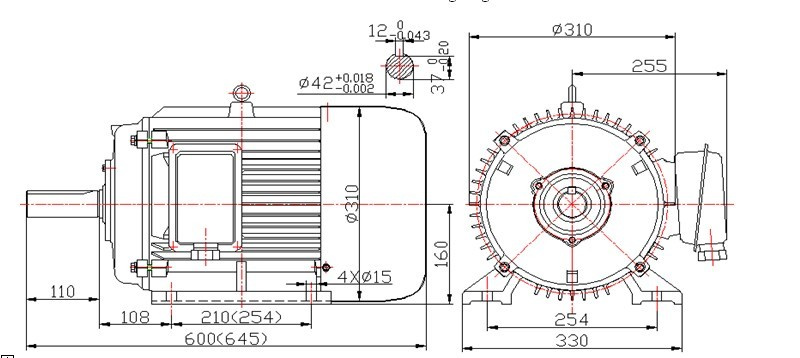

PowerVoltage50Hz SpeedCurrentPower factorEfficiencyRated torquePeak torqueModelLengthWeight
13 kw380V1500RPM21.2A0.9893.5%82.8Nm200NmY160-4M605103kg
15 kw380V1500RPM24.5A0.9893.5%95.5Nm200NmY160-4M605110kg
18.5 kw380V1500RPM30.2A0.9893.6%117.8Nm240NmY160-4L650117kg
20kw380V1500RPM32.6A0.9893.6%127.3Nm270NmY160-4L655121kg
22kw380V1500RPM35.8A0.9893.6%140Nm280NmY160-4L660125kg




Prod Model: YGDL
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Axis Type: Horizontal
Phase: 3 Phase
Certification: CE, ISO
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Power: 10-100kw
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
