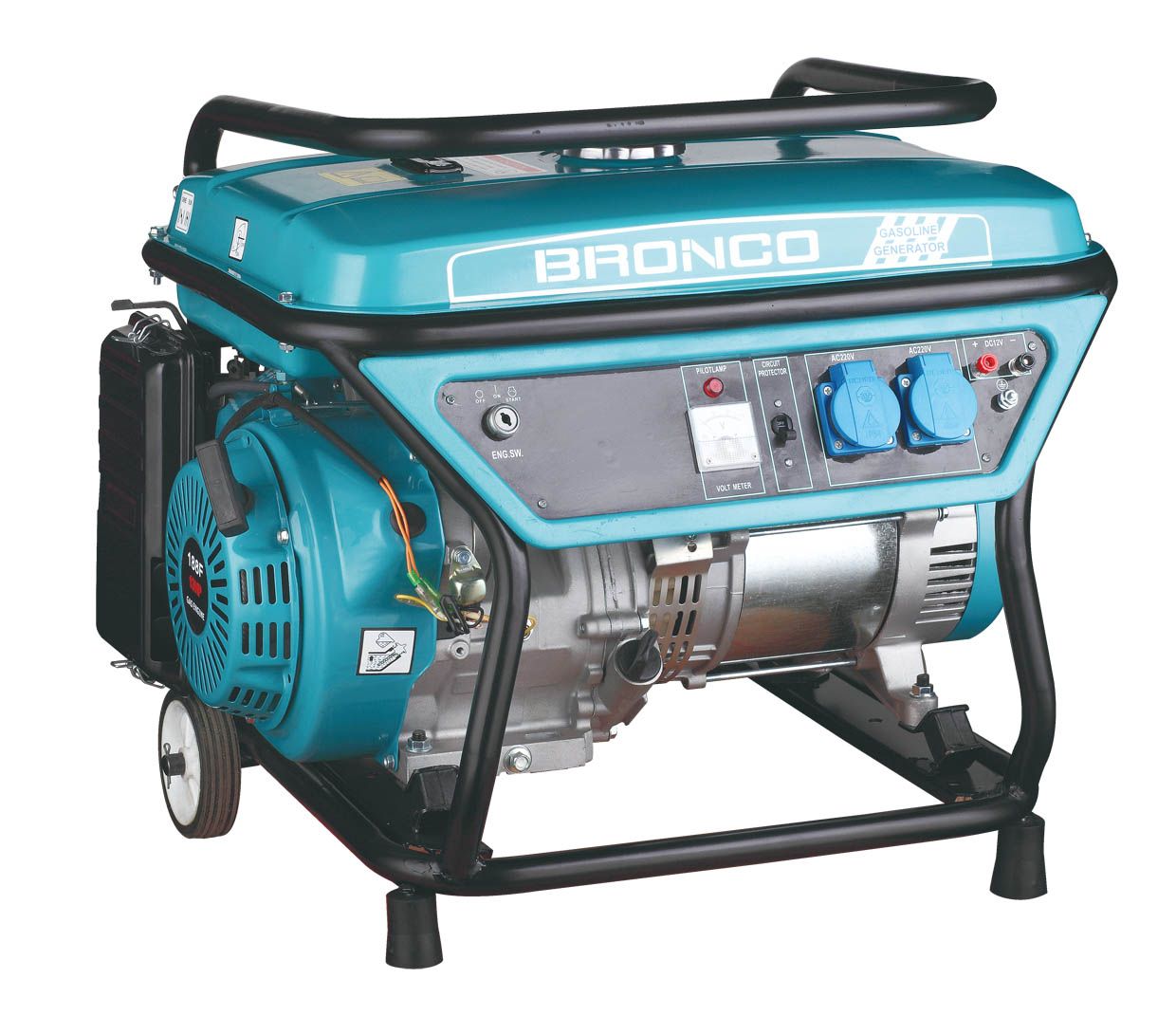

Electric Gasoline Generator
Parameter Code Name: BN6500C
Generator Rating Frequency(Hz) 50/60
Rating Voltage(v) 220, 130 110, 240
Rating Power 2.0 3.0
Power Factor 1.0
DC Welding Amp Range: 50-190A
Practicable Welding Slice: Diameter 2.0-5.0mm
Rating Output Of Welding: 140A, 26V
Rating Load Duration Rate: 50%
Engine Type 188F
Category Forced Air-cooled Four Stroke, Top-installed Gasoline Engine
Exclusion Of Cylinder(cm3) 389
The Max. Outpup Power(hp/rpm) 13/3600
Start System Recoil/E-Start
Capacity Of Fuel Tank(L) 17
Consumption Of Fuel(L/h) 2.70
Consecutive Working(h) 9
Noise(at 7 M)(dB) 74
Capacity Of Engine Oil 1.1
Dimension Set Dimension(mm3) 685 * 515 * 550
Packing Dimension(mm3) 700 * 530 * 565
Net Weight(kg) 88
Standard
Equipment Large Capacity Fuel Tank YES
Large Capacity Muffler YES
Fuel Gauge YES
Voltmeter YES
Oil Alert YES
Automatic Voltage Adjuster YES
AC Circuit Breaker YES
Purchasing Four-wheel Dolly Kit YES
REMARK
COLOUR: As requirements
SPECIFICATIONS |
Model |
BN6500C(E) |
BN8000C(E) |
Engine |
188F |
190F |
Type |
1-cylinder,4-stroke,Air-cooled gasoline engine |
Work capacity |
389cc |
407cc |
Max.output |
13hp |
15hp |
Ignition system |
Non-contact transistor |
Starting system |
Recoil/Electric |
Fuel tank capacity |
25L |
Continous operating time |
10 hours |
Engine oil system capacity |
1.1L |
Phase |
Single phase |
Generator |
|
|
A.C.frequence |
50Hz or 60Hz |
Rated Voltage |
220-240V |
Max.A.C.output |
5.5kW |
6.5KW |
Rated A.C.output |
5.0kW |
6.0KW |
Size and weight |
|
|
Overall dimension |
690*525*550MM |
690*525*550MM |
Dry weight |
79/83KGS |
78/82KGS |
Quantity:136sets/20ft,292sets/40hq |
Delivery:25-30days |
Payment terms:By T/T or by L/C at sight. |
Bronco (Zhejiang) Electric Machinery Manufacturing Co., Ltd. is located in the beautiful Taizhou Economic Development Zone, where occupies an area of 40, 000 square meters.
BRONCO is a company that combines the development, manufacturing, and marketing of gasoline generators, diesel generators, water pumps, air compressors.
We possess advanced production testing equipment and a modern quality management system, and have always implemented comprehensive quality control through strict adherence to ISO9001 standards. Furthermore, our products have also passed GE, CE, EMC certification.
The company has adopted horizontal integration, and product development is both supported by scientific research institutions and LED by the demands of the market. We actively incorporate advanced technology, materials and production processes so as to constantly develop new products - some of which already meet the highest standards within China.
Our products are sold throughout the world in regions such as Europe, America, the Middle East, Southeast Asia, and Africa, where we have built up a complete sales network. In Dubai, the economic heart of the Middle East, we have created a sales branch, and have won the trust and support of customers through our outstanding products and consummate service.
