| Price: | US $ 9500-12000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

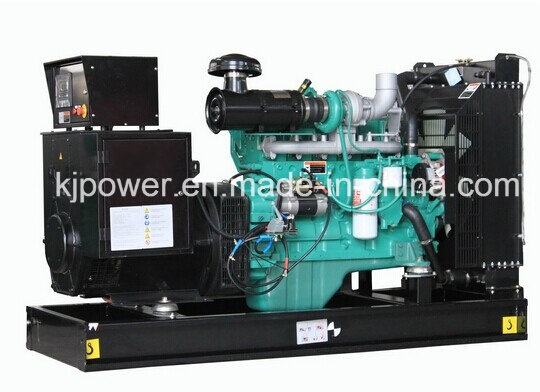

DIESEL GENERATOR SET | Diesel GenSet Model | KJ-C160 |
| Prime power (KW/KVA) | 108/135 | |
| Standby power (KW/KVA) | 120/150 | |
| Rated voltage(V) | 230/400 | |
| Rated current (A) | 194.4 | |
| Frequency(Hz) | 50 | |
| Rated Rotary Speed (RPM) | 1500 | |
| Power factor | 0.8 | |
| Power supply mode | 3 phase, 4wire | |
| Starting method | 24V DC | |
ENGINE | Diesel Engine | Cummins |
| Model | 6BTAA5.9-G2 | |
| Engine prime power (KW/KVA) | 120/150 | |
| Engine standby power(KW/KVA) | 132/165 | |
| Cylinder Qty. | 6 | |
| Bore(mm) *Stroke (mm) | 102*120 | |
| Compression rate | 16.8: 1 | |
| Cooling liquid volume (L) | 23.6 | |
| Displacement(L) | 5.9 | |
| Lubricant capacity (L) | 17.3 | |
| Cooling method | Water cooled | |
| Intake method | Turbocharged& air to air cooled | |
ALTERNATOR | Alternator Features: 1. Kaijie, ENGGA, Stamford, Leroy Somer, Marathon 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤ ± 1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adaptors and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof | |
| Prod Model: | KJ-C160 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: | 50Hz 135kVA Cummins Generator |
| Frequency: | 50Hz, 60Hz for Option |
| Rated Voltage: | 400/230V, Various Voltage Available |
| Controller: | Smartgen 6110 (Deepsea for Option) |
| Function Option: | ATS, AMS, Synchronization, High Voltage, etc |
| Generator Type: | Open Type/Silent Type /Container Type/Trailer Type |
| Quality Standard: | ISO9001 |
| Alternator: | Kaijie Leroy Somer, Stamford and Engga for Option |
| Power: | 108kw/135kVA |
| Export Market: | Globally |
| Type: | Basic Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
