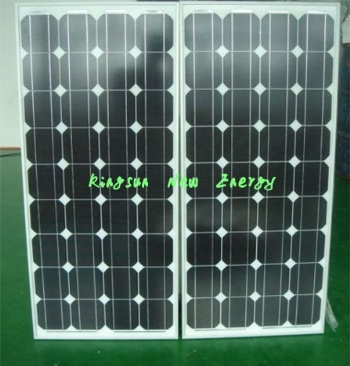

130W Mono-Si Solar Modules/Panels (QY-Modules)

Brand: Kingsun New Energy
Standard: 3W~240W (Special standard is available)

Shen Zhen Kingsun New Energy Tech. Co., Ltd promises to customers all over the world: We are the first-class within the same business in the production of the battery modules technology and equipments. We have the best quality and the most reasonable price.

Working Principle
The current from the sunshine to the solar battery plates begin to recharge the battery through the invert controller and convert into the DC/AC for the use of the appliance, or through the grid inverter directly to the power supply network. Solar photovoltaic system was made of the solar cells (group), solar controller and batteries (group). If the output power is AC 220v or 110v, the inverter is needed.

Kingsun New Energy brand battery plate components conventional configuration: Solar unit is a device of single power available, which is equivalent to a battery of about 0.5v, while battery plate components were the equivalent of batteries group of more batteries serial or parallel connectivity.

The number of components usually depends on the system voltage (battery voltage). Usually, it is the1.4-1.5 times compare to the battery voltage.

More Product Features
1. High-efficiency silicon solar cells, more power in peak hours through cells
2. Optimized module performance with Nominal Voltage 24/18/12V DC
3. Bypass diodes to avoid hot-spot effect, cells are embeded in a sheet of TPT and EVA
4. 3.2mm high transmission low-iron, tempered glass, unique esthetic appearance of cells
5. Attractive, stable, heavy duty anodized aluminum frames with convenient mounting-access, for standing against high wind-pressure and snow load
6. The backside frames are equipped with drainage holes. So we eliminate the risk that rain or snow water may accumulate in the frame lumen and freeze or even bend the frame in cold season
7. 25 years limited power warranty

Solar Modules Applications
1. Design for grid-connected power plants up to 1000V DC
2. Ideal also for use in large stand-alone system for battery charging

Some factors should be clear while designing Solar PV Power Supply System
1. Factual power and average working hours of every load per day (Household electric appliance)
2. Average sunlight hours of the location where the PV power supply system will be installed
3. How many days do you want the PV system to work normally, if it is raining every day
4. Consider local weather situation and landform situation

We design and develop a optimum solar PV power system for you based on these factors.

Characteristics & Temperature Coefficients
