> > > DIESEL GENERATING SETS(380/220 V-50Hz/1500rpm) |
BRAND / MODEL |
QCUAN / QCGFVV-QZ130 |
Power
P. F
(COS =0.8) |
Prime |
KVA |
130 |
KW |
104 |
Standby |
KVA |
143 |
KW |
114 |
Output voltage: |
380/220V
(or 400/230V, 440/254V, 220/110V) |
Rated Frequency/Speed: |
50Hz/1500rpm
(or 60Hz/1800rpm) |
Standby: |
Continuous running at variable load for duration of an emergency. No overload is permitted on these ratings. In accordance with ISO 3046. |
Prime: |
Continuous running at variable load for unlimited periods with 10% overload available for 1 hour in any 12 hour period. In accordance with ISO 8528, ISO 3046. |
> Dimensions & Dry Weight: |

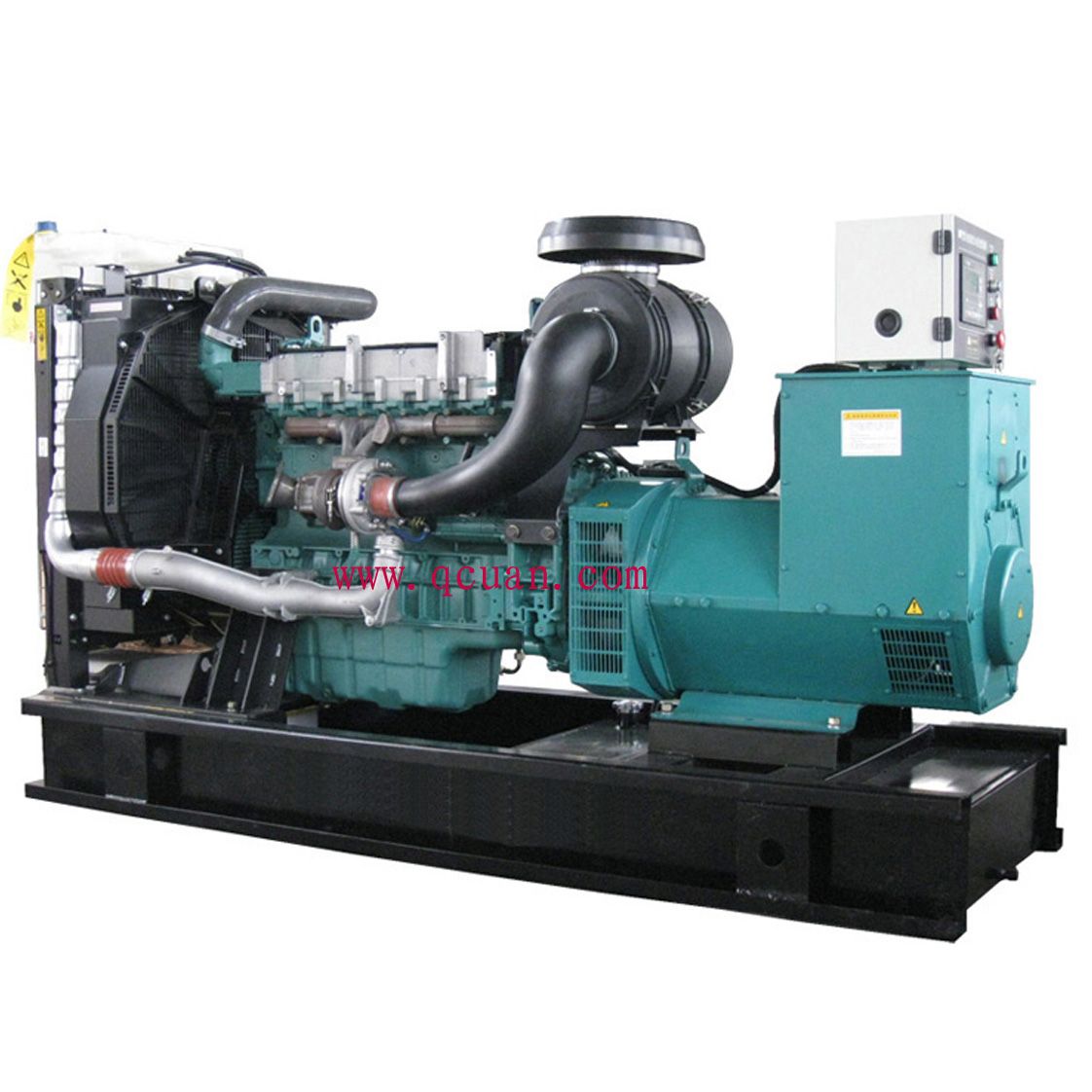

OPEN TYPE |
Dimensions(LxWxH): |
2080(mm)× 750(mm)× 1450(mm) |
Net Weight: |
1250kg |
SILENT TYPE |
Dimensions(LxWxH): |
3000(mm)× 1240(mm)× 1760(mm) |
Net Weight: |
2070kg |
Standard configuration Brief:
> ENGINE: VOLVO PENTA (VOLVO Engine Co. Ltd. )
> ALTERNATOR: Leroy somer, Stamford, Marathon or Chinese local brands(option)
> single bearing alternator IP23, insulation class H/H;
> Radiator 50 centigrade max, fans are driven by belt, with safety guard;
> Controller: Deepsea, Woodward, Comap, Smartgen(option);
> Dry type air filter, fuel filter, oil filter, coolant filter;
> 12/24V D. C. to start the motor and charge alternator;
> Breaker: MCCB, Acb;
> Starter battery (with lead acid) including Rack and Cables;
> Fuel connection hoses;
> Ripple flex exhaust pipe, exhaust siphon, flange, Industrial capacity exhaust silencer;
> Steel chassis and efficient shock absorber;
> Operation manuals and circuit diagram documents. |
> > > ENGINE DATA |
Brand / Model: |
VOLVO, TAD532GE, 4-cycle |
Air Intake System: |
Turbocharged and air intercooled |
Fuel System: |
Direct inspection fuel pump |
Cylinder Arrangement: |
4 in line |
Displacement Capacity: |
4.76L |
Bore and Stroke: |
108*130(mm) |
Compression Ratio: |
18: 1 |
Rated Hz/RPM: |
50Hz/1500rpm |
Max. Standby Power at Rated: |
129KW/175HP |
Governor Type: |
EDC4 |
> Exhaust System |
Exhaust Gas flow: |
23.2m3/min |
Exhaust Temperature: |
532 centigrade |
Max Back Pressure: |
5 kPa |
> Air Intake System |
Max Intake Pressure: |
3.5kPa |
Consumption: |
8.03m3/min |
Air Flow: |
174 m3/min |
> Fuel System |
100%( Prime Power) Load: |
22.7 L/h |
75%( Prime Power) Load: |
17 L/h |
50%( Prime Power) Load: |
11.3L/h |
> Oil System |
Total Oil Capacity: |
13 L |
Oil Consumption: |
≤ 4 g/kw. h |
Engine Oil Tank Capacity: |
11 L |
oil Min-Pressure at Rated RPM: |
450-480 kPa |
> Cooling System |
Total Cool fluid Capacity: |
20.2 L |
Thermostat Temperature: |
83-95centigrade |
Max Water Temperature: |
105 centigrade |
> > > ALTERNATOR DATA |
Products comply with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards. |
Brand / Model: |
Leroy somer, Stamford or Marathon |
Number of Phase: |
3 |
Connecting Type: |
3 Phase and 4 Wires, “ Y” type connecting |
Amount of Bearing: |
1 |
Power Factor: |
0.8 |
Protection Grade: |
IP23 |
Altitude: |
≤ 1000m |
Rated Hz/RPM: |
50Hz/1500rpm |
Exciter Type: |
Brushless, self-exciting |
Voltage control mode: |
AVR(Automatic Voltage Regulator) |
Insulation Class, Temperature Rise: |
H/H |
Radio interference: |
Meet the BS800 and VDE G, N |
Telephone Influence Factor (TIF): |
< 50 |
Telephone harmonic Factor (THF): |
< 2% |
Steady Voltage adjustment rate: |
≤ ± 1% |
Generator Capacity: |
104KW/130KVA |
Generator Efficiencies: |
95.20% |
Standard Temperature Rise: |
125 -163° C Continuous |
Cooling method: |
Direct drive centrifugal blower fan |
Air Cooling Flow: |
0.514 m³ /s |
> > > DIESEL GENERATING SETS DATA |
Voltage Regulation Range: |
≥ ± 5% |
Steady Voltage adjustment rate: |
≤ ± 1% |
Instantaneous Voltage Warp (100% Sudden Reduce): |
≤ +20% |
Instantaneous Voltage Warp (Sudden increase): |
≤ -15% |
Voltage Stable Time (100% Sudden Reduce): |
≤ 4 S |
Voltage Stable Time (Sudden Increase): |
≤ 4 S |
Steady Frequency Reduce rate: |
0-5%(Adjustable) |
Frequency Waving rate: |
≤ 0.8% |
Instantaneous Frequency Warp(100% Sudden reduce): |
≤ +10% |
Instantaneous Frequency Warp (Sudden Increase): |
≤ -7% |
Frequency Recovery Time (100% Sudden Reduce): |
≤ 3 S |
Frequency Recovery Time (Sudden Increase): |
≤ 3 S |
Open Type/silent type Noise: |
95 dB/75dB |
Emission standard: |
Europe II |
> > > OPTIONAL EQUIPMENTS CONTROL |
> Diesel Engine System |
> Accessories |
~ Oil heater |
~ Fuel tank |
> Alternator |
~ Automatic filling system |
~3/4 Pole Output Circuit Breaker |
~ Fuel-water separator filter |
~ Anti-condensation Heater |
~Low fuel level alarm |
> Panel |
~ Residential silencer |
~ Charge ammeter |
~ Enclosure or sound proof canopy |
~ATS Transfer Switch 3 Pole |
~ Trailer |
~ ATS Transfer Switch 4 Pole |
~ Manual oil drain pump |
~ Earth Fault, single set |
~ Tool kit for maintenance |
> > > Authentication information: |
(1)European Safety Standard: CE Certificate
(2)ISO9001: 2000 Quality Control System
(3)ISO14001-2000 environmental management system certification
(4)SGS(Societe Generale de Surveillance S. A. ) |
