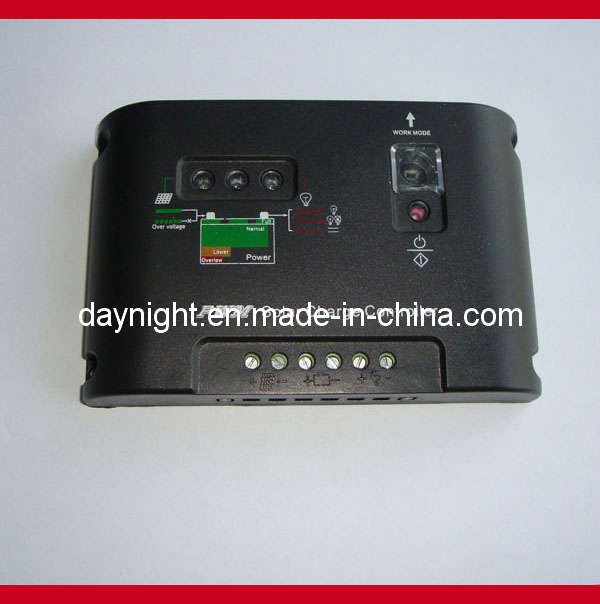

Specifications
Type: 9101-10 9101-15 9101-20
Rated charging current: 10A 15A 20A
Rated load current: 10A 15A 20A
Work voltage: 12V; 12V/24V AUTO
Over load, short circuit protection Over load protection action: 1.25times rated load current in 60-sec, 1.5 times rated load current in 5-sec; Short circuit protection action: >=3times rated load current
No load current: < =6mA
Charging circuit voltage drop: < =0.26V
Load circuit voltage drop: < =0.15V
Over voltage protection: 17V, x2/24V
Work temperature: Industry stage: -35° Cto +55° C
Boost charge voltage: 14.6V; X2/24V(keep 10-min) (Only applied when overdischarge appears)
Direct charge voltage: 14.4V; X2/24V(keep 10-min)
Float charge voltage: 13.6V; X2/24V(keep working until drop to the point of charge return voltage action)
Charge return voltage: 13.2V; X2/24V
Temperature compensation: -5mv/2V(Boost charge, Direct charge, Float charge, charge return voltage)
Lower voltage indicate: 12.0V; X2/24V
Over discharge voltage: 11.1V no load-real-time modified voltage by the discharge rate; X2/24V
Over discharge return voltage: 12.6V; 2/24V
Control mode: PWM charge mode
We mainly supply high quality LED emergency light and solar rechargeable product. We have many customers from South American, Euope, Asia, Africa more than 30 countries and area. Our compay is a reliable and faithful supplier, we ensure our best service and good quality products. Our loaction is a very very newly- developing city (CiXi city), which is near to Shanghai and HangZhou.
Most of our products are approved by CE, most of them are saving -energy products, green products!
Welcome to our company for trade cooperation! We have achieved good performance up to now, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
