Unit Type | Alternator |
Part Type | UNIT |
Voltage | 12 |
Amperage | 55 |
Pulley Class | V1 |
Regulator | IR |
Manufacturer | BOSCH |
Brief | MERCEDES 1972-85 1-V PULLEY 67MM OD 17MM ID SEARCH: 490360 490361(LATER VERSIONS) SEARCH: 490373 (65 AMP) SEARCH: 490376 (70 AMP) SEARCH: 494115(ISKRA VERSION) |

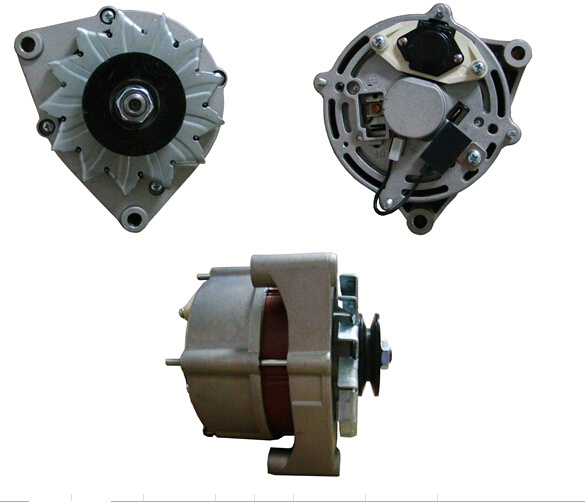

Detailed | 490359 - Older Version and 490360 and 490359B- Newer Version (Case Styles). There are Other OEM No.' s That Cross Into These Two PIC Numbers Also. This is a 55A Internally Regulated Alternator for Many Mercedes Benz Models. The 13153 (65A) Looks Identical to the 13056. Always Match Pulley Needs As They May Be Single or Double V-Groove. The Spread Between the Two Mounting Holes is the Same on the 13056 and the 13153 (170mm) But is 10mm Greater on the 13154 14820 and 14824 (180mm). |
MFG# | MFG NAME |
---|
ABO0201 | ARROWHEAD |
BAL80X | ARROWHEAD (OEM) |
13056 | LESTER |
220-140 | PIC |
321-1252 | AC DELCO |
334-1043 | AC DELCO |
02489526 | ANDRE NIERMANN |
13056 | BBB |
13056 | BBB NEW |
186-0157 | BECK ARNLEY |
0-120-489-061 | BOSCH |
0-120-489-526 | BOSCH |
0-120-489-527 | BOSCH |
0-120-489-556 | BOSCH |
0-120-489-623 | BOSCH |
0-120-489-683 | BOSCH |
0-120-489-786 | BOSCH |
0-120-489-828 | BOSCH |
0-120-489-932 | BOSCH |
0-120-489-933 | BOSCH |
110358 | CARGO |
110730 | CARGO |
10463695 | DELCO REMAN |
DRA1080 | DELCO REMAN (EUROPE) |
DRA2800 | DELCO REMAN (EUROPE) |
A-625 | DIXIE |
13056 | EXCEL |
CA69IR | HC PARTS |
CA87IR | HC PARTS |
13142 | LESTER (OLD) |
14058 | LESTER (OLD) |
14775 | LESTER (OLD) |
LRA00823 | LUCAS ELECTRICAL EUROPE |
004-154-18-02 | MERCEDES BENZ |
004-154-44-02 | MERCEDES BENZ |
004-154-46-02 | MERCEDES BENZ |
005-154-39-02 | MERCEDES BENZ |
005-154-58-02 | MERCEDES BENZ |
005-154-67-02 | MERCEDES BENZ |
005-154-77-02 | MERCEDES BENZ |
005-154-78-02 | MERCEDES BENZ |
005-154-79-02 | MERCEDES BENZ |
006-154-30-02 | MERCEDES BENZ |
47-2891 | MINNPAR |
13056 | MPA |
13-8811 | NAPA |
213-8811 | NAPA POWER PREMIUM PLUS |
13-8811 | NAPA POWER SUPREME |
A512 | USA INDUSTRIES |
VA132 | VALEO SHORT |
VA326 | VALEO SHORT |
1-1355-01BO | WAI |
90-15-6077 | WILSON |
90-15-6267 | WILSON |
90-15-6077 | WILSON NEW |
ALT10117 | WOOD AUTO |
13056 | WORLDWIDE |
MAKE | TYPE | MODEL | YEAR | ENGINE |
---|
MERCEDES BENZ | Auto and Light Truck | 230 SERIES (GAS) | 1974 | 2.3L |
MERCEDES BENZ | Auto and Light Truck | 230 SERIES (GAS) | 1975 | 2.3L |
MERCEDES BENZ | Auto and Light Truck | 230 SERIES (GAS) | 1976 | 2.3L |
MERCEDES BENZ | Auto and Light Truck | 230 SERIES (GAS) | 1977 | 2.3L |
MERCEDES BENZ | Auto and Light Truck | 230 SERIES (GAS) | 1978 | 2.3L |
MERCEDES BENZ | Auto and Light Truck | 240 SERIES (DIESEL) | 1974 | 2.4L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 240 SERIES (DIESEL) | 1975 | 2.4L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 240 SERIES (DIESEL) | 1976 | 2.4L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 240 SERIES (DIESEL) | 1977 | 2.4L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 240 SERIES (DIESEL) | 1978 | 2.4L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 240 SERIES (DIESEL) | 1979 | 2.4L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 240 SERIES (DIESEL) | 1980 | 2.4L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 240 SERIES (DIESEL) | 1981 | 2.4L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 280 SERIES (GAS) | 1973 | 2.8L |
MERCEDES BENZ | Auto and Light Truck | 280 SERIES (GAS) | 1974 | 2.8L |
MERCEDES BENZ | Auto and Light Truck | 280 SERIES (GAS) | 1975 | 2.8L |
MERCEDES BENZ | Auto and Light Truck | 280 SERIES (GAS) | 1976 | 2.8L |
MERCEDES BENZ | Auto and Light Truck | 300 SERIES (DIESEL) | 1975 | 3.0L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 300 SERIES (DIESEL) | 1976 | 3.0L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 300 SERIES (DIESEL) | 1977 | 3.0L (Diesel) |
MERCEDES BENZ | Auto and Light Truck | 450 SERIES (GAS) | 1973 | 4.5L |
MERCEDES BENZ | Auto and Light Truck | 450 SERIES (GAS) | 1974 | 4.5L |
MERCEDES BENZ | Auto and Light Truck | 450 SERIES (GAS) | 1975 | 4.5L |
MERCEDES BENZ | Auto and Light Truck | 450 SERIES (GAS) | 1976 | 4.5L |
MERCEDES BENZ | Auto and Light Truck | 450 SERIES (GAS) | 1977 | 4.5L |
MERCEDES BENZ | Auto and Light Truck | 450 SERIES (GAS) | 1978 | 4.5L |
MERCEDES BENZ | Auto and Light Truck | 450 SERIES (GAS) | 1979 | 4.5L |
MERCEDES BENZ | Auto and Light Truck | 450 SERIES (GAS) | 1980 | 4.5L |
AEP Number | AEP (OEM) | PART TYPE |
---|
BRG0012 | ND949100-0350 | BEARING |
BRG0016 | 35-4000E | BEARING |
ABO7501 | | BRUSH |
ABO7502 | | BRUSH |
ABO7504 | | BRUSH |
| | BUSHING - MOUNTING |
| | BUSHING - MOUNTING |
| | BUSHING - MOUNTING |
| | BUSHING - MOUNTING |
| | BUSHING - MOUNTING |
| | BUSHING - MOUNTING |
| | DIODE |
| | DIODE |
| | PLUG CODE |
| | PULLEY |
| | PULLEY |
ABO1201 | | RECTIFIER |
| | RECTIFIER (HD) |
ABO6000 | B30064 | REGULATOR w/BRUSHES |
ABO6011 | | REGULATOR w/BRUSHES |
ABO6007 | B30091 | REGULATOR w/BRUSHES |
ABO6011 | | REGULATOR w/BRUSHES |
| | ROTOR |
| | ROTOR |
| B1123433004 | SCREW - REGULATOR ATTACH |
ABO3500 | | SLIP RING |
ABO4003 | | STATOR |
| | STATOR |
| | TEST LEAD |
