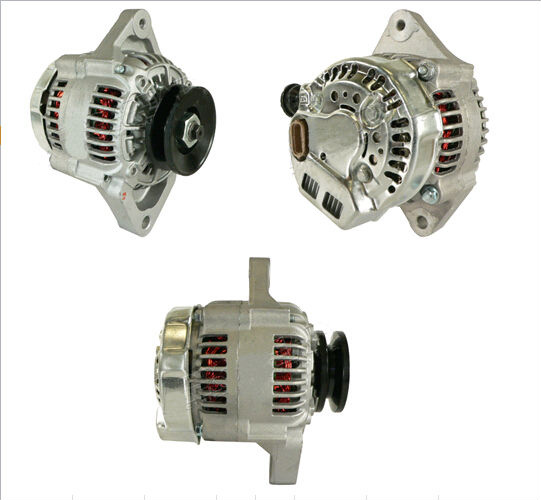

Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 45 |
| Pulley Class | V1 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | DENSO |
| Brief | JOHN DEERE TRACTOR
1-V PULLEY 69mm OD 15mm ID
ADDL INFO: 13mm BELT WIDTH
ADDL INFO: (P-IG-L) OVAL PLUG
SEARCH: 495562 (SAME UNIT - DIFFERENT PULLEY) |
| MFG# | MFG NAME |
|---|
| AND0433 | ARROWHEAD |
| ND101211-2951 | ARROWHEAD (OEM) |
| 1400-0547 | ATLANTIC |
| AND0205 | ARROWHEAD (OLD) |
| 12352 | LESTER |
| 290-5161 | PIC |
| 022951 | ANDRE NIERMANN |
| 12352 | BBB HD |
| 101211-2950 | DENSO |
| 101211-2951 | DENSO |
| A-80052 | DIXIE |
| 146-06132 | DIXIE NEW |
| 400-52131 | J & N |
| AM809216 | JOHN DEERE |
| LVA12467 | JOHN DEERE |
| M809216 | JOHN DEERE |
| TY25242 | JOHN DEERE |
| LRA03097 | LUCAS ELECTRICAL EUROPE |
| X612352 | MPA HD |
| P186N | MPA SMALL MOTOR |
| 612352 | NAPA HD |
| VV11962677210 | NEW HOLLAND |
| 463715 | TUCKER ROCKY |
| 90-29-5422 | WILSON |
| 90-29-5422 | WILSON HD |
| 119626-77210 | YANMAR |
| CASE | Excavators - Compact | CX31B | 05-On | Yanmar 3TNV88 |
| CASE | Excavators - Compact | CX36B | 05-On | Yanmar 3TNV88 |
| CASE | Excavators - Compact | CX50B | 05-On | Yanmar 4TNV88 |
| JOHN DEERE | Excavators - Compact | 35D | All | Yanmar 3TNV88 |
| JOHN DEERE | Excavators - Compact | 35G | All | Yanmar 3TNV88F |
| JOHN DEERE | Excavators - Compact | 50D | All | Yanmar 4TNV88 |
| JOHN DEERE | Tractor Loaders | 110 TLB | All | Yanmar 4TNE84 |
| JOHN DEERE | Tractor Loaders | 110 TLB | All | Yanmar 4TNV88 |
| JOHN DEERE | Tractors - Utility | 1026R | All | Yanmar 3TNV76 |
| JOHN DEERE | Tractors - Utility | 3120 | All | Yanmar 29.5HP Dsl |
| JOHN DEERE | Tractors - Utility | 3320 | All | Yanmar 32.8HP Dsl |
| JOHN DEERE | Tractors - Utility | 3520 | All | Yanmar 37.1HP Dsl |
| JOHN DEERE | Tractors - Utility | 3720 | All | Yanmar 44.0HP Dsl |
| JOHN DEERE | Tractors - Utility | 4105 | All | Yanmar 40.5HP Dsl |
| JOHN DEERE | Tractors - Utility | 4200 | All | Yanmar 26HP Dsl |
| JOHN DEERE | Tractors - Utility | 4210 | All | Yanmar 28HP Dsl |
| JOHN DEERE | Tractors - Utility | 4300 | All | Yanmar 32HP Dsl |
| JOHN DEERE | Tractors - Utility | 4310 | All | Yanmar 32HP Dsl |
| JOHN DEERE | Tractors - Utility | 4400 | All | Yanmar 35HP Dsl |
| JOHN DEERE | Tractors - Utility | 4410 | All | Yanmar 35HP Dsl |
| JOHN DEERE | Tractors - Utility | 4500 | All | Yanmar 39HP Dsl |
| JOHN DEERE | Tractors - Utility | 4510 | All | Yanmar 39HP Dsl |
| JOHN DEERE | Tractors - Utility | 4600 | All | Yanmar 43HP Dsl |
| JOHN DEERE | Tractors - Utility | 4610 | All | Yanmar 44HP Dsl |
| JOHN DEERE | Tractors - Utility | 4700 | All | Yanmar 48HP Dsl |
| JOHN DEERE | Tractors - Utility | 4710 | All | Yanmar 48HP Dsl |
| NEW HOLLAND | Excavators | E30B | 06-On | |
| NEW HOLLAND | Excavators | E35B | 08-On | Yanmar 3TNV88 28.43HP Dsl |
| NEW HOLLAND | Excavators | E50B | 08-On | Yanmar 4TNV88 39.3HP Dsl |
| JOHN DEERE | Utility Vehicle (UTV) | Pro Gator 2020 | All | Yanmar 26HP Gas |
| JOHN DEERE | Utility Vehicle (UTV) | Pro Gator 2020A | All | Yanmar 879cc Gas |
| JOHN DEERE | Utility Vehicle (UTV) | Pro Gator 2030 | All | Yanmar 23.5HP Dsl |
| JOHN DEERE | Utility Vehicle (UTV) | Pro Gator 2030A | All | Yanmar 1115cc Dsl |
| AEP Number | AEP (OEM) | PART TYPE |
|---|
| BRG0015 | ND949100-2951 | BEARING |
| AND7501 | ND021660-0390 | BRUSH |
| AND1301 | ND021620-2201 | BRUSH HOLDER |
| | | CASTING - D.E. |
| | ND021501-5250 | CASTING - S.R.E. |
| | | CASTING - S.R.E. |
| | ND021551-2370 | COVER - SRE FRAME |
| IHW2612 | ND021506-0070 | DUST SHIELD - SRE BRG |
| | | PLUG CODE |
| | | PULLEY |
| AND1210 | ND021580-3340 | RECTIFIER |
| AND6070 | ND126000-1800 | REGULATOR |
| AND3034 | ND021200-5141 | ROTOR |
| | ND949044-4270 | THRU BOLT |
We control the raw material with strict standard, especially for the copper wire. We use 10# steel and good magnet materials.
Production Equipment:
The armature and stator are produced by automatic equipment.
Inspection equipment:
We have more than 60 quality inspection equipment. We can inspect all items according to starter GB standard and analyze the quality differences.
Armature, stator, solenoid switch and the starter assembly are all 100% inspected.
Whole set laboratory equipment:
We have whole set laboratory equipment for the starter performance test.
Market share:
We are No 1 for single cylinder diesel engine starter production in China. The annual selling quantity is more than 400000 sets.
Experiences:
Plentiful Experience to ensure quality
Most of our workers are with more than 10 years even 20 years experiences.
Our R&D engineers are also with more than 20 years experiences.
9. After-sales service:
Good and fast response for after- sale Services
Once we receive quality problems complaint, we will reply customer within 5 hours, if domestic customers, we our engineers will go to solve the problem in the spot as quick as possible.
Competitive price ------
Over 90% parts produced by our own factory
Regular Starters, Next Day Delivery.
Save Money Repair it, Do not replace it.
1 year warranty
100% brand new product
Major product family:
Alt: CS, AD, ND, Ford, SI, Leece Neville, Marelli, Bosch, Valeo, Mitsubishi, Lucas, etc.
Str: Ford PMGR, PG260D/G/L/F1/F2/M, Bosch, Valeo, Mitsubishi, etc.
Market (%):
North America 60%; Middle East 15%; Europe 15%; Local 10%.
We are specialized in Auto alternator and starter motor since 2000. Quality first, price second. Usually, our alternator and starter motor can match with each other smoothly in the same model Vehicle.
Our company boasts a high-quality management team from top to bottom for the purpose of an efficient operation system. We control every part and every working procedure strictly because we regard product quality as a basis of our corporate development. Based on the original ISO9001: 2000 International Quality Management System, all links of our production and management are strictly guided by the standard of ISO/TS16949
Ningbo Hi-Tech Altering Motor Co., Ltd.
Factory established 1996.
Specialized in Heavy Duty diesel alternator and starter motor.
Warranty is one year after operation.
Delivery is 45 days after confirming the order.
NingBo Hi-Tech Altering Tech. Co., Ltd. Locates in Ningbo Hi-tech Zone, east of China and we are having specialized in alternator and starter motor industry since 2000. We have a full set of advanced equipments for production, inspection and testing. Now its annual production capacity is one million auto alternators and half a million auto starters. The company has a powerful R&D capability, which ensures it lead position of the manufacturing profession in the speed & quality of new products development.
The main products of ALTERING currently have over 50 series ( over 500 part numbers ) of auto alternators and auto starters, such as, PMGR, LUCAS, MARELLI, BOSCH, VALEO and so on, which are sold to America, Europe, Middle East, Southeast Asia, etc...We turnover ranks high in the manufacturing profession. The company is making efforts to expand business of aftermarket and OEM as well. Up to now, We have been a supplier of several domestic vehicle manufacturers.
We pursues the corporate philosophy of "quality first, prestige first" all the time, and keeps developing more and more new products. We welcome peoples of all circles to visit or call for business cooperation.
