Specifications
Advanced SPWM and CPU control technology
Import power module main circuit
OEM service and custom- made
CE/ROHS/ISO9001

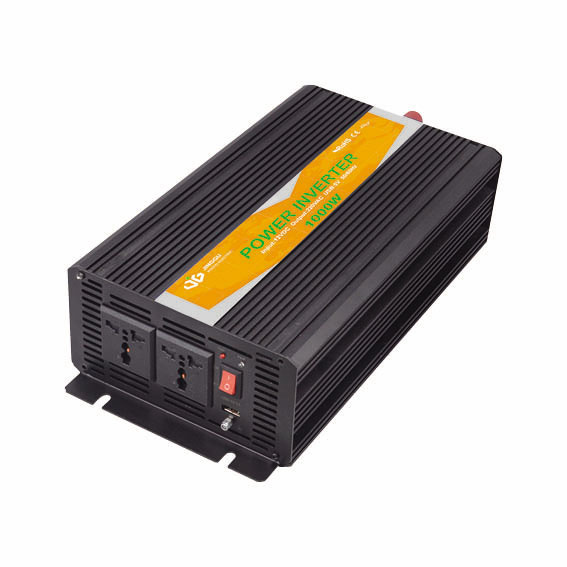

Pure Sine Wave Inverter
Pure sine wave inverter adopts USA advanced SPWM and CPU control technology with imported power module main circuit. It can convert the DC power to AC power with the features as voltage stabilization, frequency stability, low noise and purify pure sine wave AC power supply. The product has low output waveform distortion, high conversion efficiency, strong anti-jamming performance, with small size, light weight, simple operation, no pollution and so on advantages. It is widely used in all kinds of: the microcomputer system, communication system, household, aviation,emergency, communications, industrial equipment, satellite communications equipment, military vehicle, ambulance, police cars, ships, solar and wind power field where need emergency backup power supply place to form EPS emergency power supply system.
| model | JGS-300W | JGS-500W | JGS-600W | JGS-800W | JGS-1000W | JGS-1200W |
| Rated Power | 300W | 500W | 600W | 800W | 1000W | 1200W |
| Peak Power | 600W | 1000W | 1200W | 1600W | 2000W | 2400W |
| Input Voltage | 12VDC/24VDC | 12VDC/24VDC/48VDC |
| AC Voltage | 110VAC/220VAC | 110VAC/220VAC |
| USD Outlet | 5V 500mA | 5V 1A |
| Frequency | 50/60HZ±0.5 |
| Wave Form | Pure Sine Wave |
| Soft Start | Yes |
| Protection Function | Bat.Low voltage Alarm&Shut Down,Over Temperature,Over Voltage,Short Circuit,Revers Polarity |
| The Fuse | Built-in |
| Inverter Size(L*W*H) | 247*168*91mm | 280*210*143mm | 280*210*140 | 300*210*140mm | 360*220*145mm | 360*220*145 |
| Gross Weight | 1.1KGS | 2.25KGS | 2.25KGS | 2.6KGS | 3.65KGS | 3.5KGS |
| Package Size | 460*380*475mm | 585*430*300mm | 585*430*300 | 605*425*285mm | 460*370*465mm | 460*370*465 |
| Quantity/Ctn | 16PCS | 8PCS | 8PCS | 8PCS | 6PCS | 6PCS |
| Package Weight | 18.2KGS | 17.8KG | 18.2KGS | 20.8KGS | 23KGS | 21.2KGS |
| Package Type | Color Box |
| Warranty | 1 Year |
|
|
|
|
|
|
|
|
| model | JGS-1500W | JGS-2000W | JGS-2500W | JGS-3000W | JGS-4000W | JGS-5000W | JGS-6000W |
| Rated Power | 1500W | 2000W | 2500W | 3000W | 4000W | 5000W | 6000W |
| Peak Power | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| Input Voltage | 12VDC/24VDC/48VDC |
| AC Voltage | 110VAC/220VAC |
| USD Outlet | 5V 1A |
| Frequency | 50/60HZ±0.5 |
| Wave Form | Pure Sine Wave |
| Soft Start | Yes |
| Protection Function | Bat.Low voltage Alarm&Shut Down,Over Temperature,Over Voltage,Short Circuit,Revers Polarity |
|
|
|
|
|
|
| The Fuse | Built-in |
| Inverter Size(L*W*H) | 440*220*145mm | 440*220*145mm | 410*290*240mm | 410*290*240mm | 518*290*240mm | 518*290*240mm | 518*290*240mm |
| Gross Weight | 4.5KGS | 5.15KGS | 9.1KGS | 9.3KGS | 12KGS | 14.5KGS | 16KGS |
| Package Size | 460*370*465mm | 460*370*465mm | 410*290*240mm | 410*290*240mm | 518*290*240mm | 518*290*240mm | 528*310*250mm |
| Quantity/Ctn | 4PCS | 4PCS | 1PCS | 1PCS | 1PCS | 1PCS | 1PCS |
| Package Weight | 19KGS | 21.5KGS | 9.1KGS | 9.3KGS | 12KGS | 14.5KGS | 16KGS |
| Package Type | Color Box |
| Warranty | 1 Year |
Zhejiang Leren Transformer Co., Ltd Is a high and new technology enterprise in China producing electric transformer mainly.
Our company was found in 2000 and located in Yueqing City, Zhejiang Province, which is a professionally electric city in China.
Zhejiang Leren Transformer Co., Ltd is specialized in producing Electric Transformer such as Oil immersed transformer, Dry type transformer, Mining transformer etc.
We export our Transformers to the worldwide market such as America, Europe, Africa, Middle East and Southeas of Asia etc., and our products share very good reputation in these countries.
As an ISO9001: 2008 quality system approvedcompany, Leren is known for its high quality products
The Transformers also complies with IEC standard and other international standards.
Zhejiang Leren Transformer Co., Ltd will continue to play an active role in the electric industry and to explore new opportunities of business with people all over the world on the principle of equality and mutual benefit.
