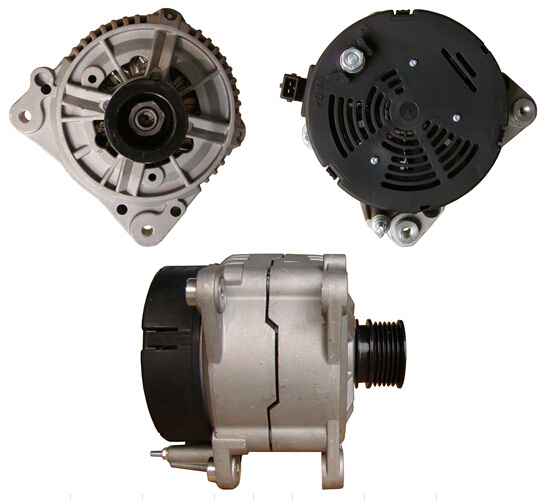

| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 120 |
| Pulley Class | S6 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | BOSCH |
| Brief | VOLKSWAGEN PASSAT 1.9L DSL 1996-97
6-GROOVE PULLEY
ADDL INFO: 12:00 PLUG - SITS OFF SRE COVER
ADDL INFO: D+ - DF PLUG
SEARCH: 490586 (90A VERSION - SAME PULLEY) |
| Detailed | This is Very Similar in Appearance to the Later 13382'
s the Only Difference is That This Unit May Use a Different Rectifier and Regulator (The Plug is D+-DF Instead of D+-W ). The Housings and Pulley Seem to Be the Same as the 13382. |
| MFG# | MFG NAME |
|---|
| ABO0059 | ARROWHEAD |
| 13622 | LESTER |
| 220-272 | PIC |
| 02505011 | ANDRE NIERMANN |
| 13622 | BBB |
| 13622 | BBB NEW |
| 186-0516 | BECK ARNLEY |
| 0-123-505-011 | BOSCH |
| 0-123-515-014 | BOSCH |
| 0-123-515-018 | BOSCH |
| 111988 | CARGO |
| DRA9090 | DELCO REMAN (EUROPE) |
| A-6442 | DIXIE |
| 13622N | EMS |
| 10444 | EXCEL |
| 95VW-10300-ABA | FORD |
| CA1089IR | HC PARTS |
| 400-24029 | J & N |
| LRB00385 | LUCAS ELECTRICAL EUROPE |
| 15980 | MPA |
| A2538 | USA INDUSTRIES |
| 437392 | VALEO REMAN |
| 565727 | VALEO SERVICE |
| 566205 | VALEO SERVICE |
| 566206 | VALEO SERVICE |
| 028-903-018B | VOLKSWAGEN |
| 028-903-025S | VOLKSWAGEN |
| 1-2385-01BO | WAI |
| 90-15-6335 | WILSON |
| 90-15-6335 | WILSON NEW |
| ALT10166 | WOOD AUTO |
| 13461 | WORLDWIDE |
| MAKE | TYPE | MODEL | YEAR | ENGINE |
|---|
| VOLKSWAGEN | Auto and Light Truck | GOLF | 1997 | 1.9L (Diesel) |
| VOLKSWAGEN | Auto and Light Truck | GOLF | 1998 | 1.9L (Diesel) |
| VOLKSWAGEN | Auto and Light Truck | JETTA | 1996 | 1.9L (Diesel) |
| VOLKSWAGEN | Auto and Light Truck | JETTA | 1997 | 1.9L (Diesel) |
| VOLKSWAGEN | Auto and Light Truck | JETTA | 1998 | 1.9L (Diesel) |
| VOLKSWAGEN | Auto and Light Truck | PASSAT | 1996 | 1.9L (Diesel) |
| VOLKSWAGEN | Auto and Light Truck | PASSAT | 1997 | 1.9L (Diesel) |
| VOLKSWAGEN | Auto and Light Truck | PASSAT | 1997 | 1.9L (Diesel) |
| AEP Number | AEP (OEM) | PART TYPE |
|---|
| BRG0005 | ND949100-2250 | BEARING |
| BRG0016 | 35-4000E | BEARING |
| ABO7503 | | BRUSH |
| ABO7507 | | BRUSH SET |
| | | PLUG CODE |
| ABO5043 | | PULLEY |
| | | PULLEY |
| | | RECTIFIER |
| | | RECTIFIER |
| ABO6075 | | REGULATOR w/BRUSHES |
| | | ROTOR |
| ABO3502 | | SLIP RING |
| | | STATOR |
| ABO4029 | | STATOR |
| | | STATOR |
| | | TEST LEAD |
| ABO2202 | | TOLERANCE RING |
