Home Generator Products 12V 120A Alternator for Bosch BMW Lester 13986 0124515105

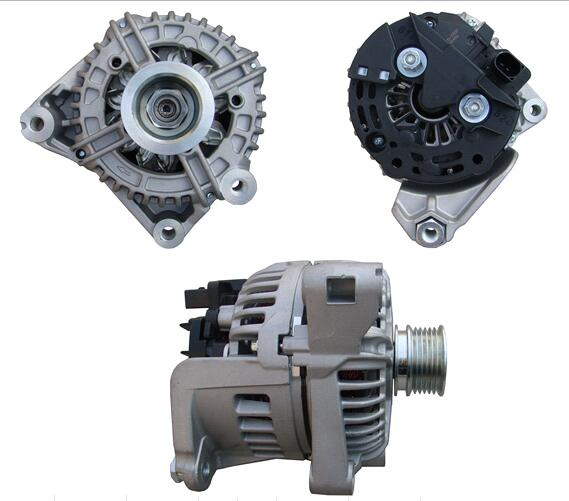

12V 120A Alternator for Bosch BMW Lester 13986 0124515105

12V 120A Alternator for Bosch BMW Lester 13986 0124515105
Price: US $ 70/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 20/Piece
Pay Type: T/T
Unit TypeAlternator
Part TypeUNIT
Voltage12
RotationCW
Amperage120
Clock2
Pulley ClassS6
RegulatorIR
Fan TypeIF
ManufacturerBOSCH
BriefBMW Z4 2.5L 2003-06
BMW Z4 3.0L 2003-05
BMW 325 SERIES 2.5L 2004
6-GROOVE PULLEY
ADDL INFO: 2-PIN PLUG - 2:00 POSITION
ADDL INFO: B+ STUD AT 3:00
SEARCH: 491143 (150 AMP VERSION)
DetailedThis is a 120A Bosch Alternator for the 2003 BMW Z4 with Both the 2.5L and 3.0L Engines. The 11083 is the Same Unit (Same DE Frame CE Frame Pulley etc.) But Rated at 150A.
MFG#MFG NAME
ABO0257ARROWHEAD
13986LESTER
220-5155PIC
13986BBB
13986BBB NEW
186-1113BECK ARNLEY
12-31-7-519-618BMW
0-124-515-105BOSCH
A-6437DIXIE
10722EXCEL
LRA02844LUCAS ELECTRICAL EUROPE
213-9650NAPA POWER PREMIUM PLUS
13-9650NAPA POWER SUPREME
A2986USA INDUSTRIES
13986NWAI
90-15-6457WILSON
90-15-6457WILSON NEW
12440WORLDWIDE
MAKETYPEMODELYEARENGINE
BMWAuto and Light TruckZ420032.5L
BMWAuto and Light TruckZ420033.0L
BMWAuto and Light TruckZ420042.5L
BMWAuto and Light TruckZ420043.0L
BMWAuto and Light TruckZ420052.5L
BMWAuto and Light TruckZ420053.0L
BMWAuto and Light TruckZ420062.5L
AEP NumberAEP (OEM)PART TYPE
BRG0005ND949100-2250BEARING - ROLLER
BRG0007BF00M990405BEARING - ROLLER
BRG001635-4000EBEARING - ROLLER
  COVER - RECTIFIER
  PLUG CODE
ABO5047 PULLEY
ABO1119 RECTIFIER
ABO6095BF00MA45219REGULATOR w/BRUSHES
ABO3025 ROTOR
ABO3502 SLIP RING
ABO4033 STATOR
  TEST LEAD
  THRU BOLT
ABO2205BF00M146901TOLERANCE RING

We control the raw material with strict standard, especially for the copper wire. We use 10# steel and good magnet materials.
Production Equipment:

The armature and stator are produced by automatic equipment.

Inspection equipment:

We have more than 60 quality inspection equipment. We can inspect all items according to starter GB standard and analyze the quality differences.

Armature, stator, solenoid switch and the starter assembly are all 100% inspected.

Whole set laboratory equipment:

We have whole set laboratory equipment for the starter performance test.

Market share:

We are No 1 for single cylinder diesel engine starter production in China. The annual selling quantity is more than 400000 sets.

Experiences:
Plentiful Experience to ensure quality
Most of our workers are with more than 10 years even 20 years experiences.
Our R&D engineers are also with more than 20 years experiences.

9.  After-sales service:
Good and fast response for after- sale Services
Once we receive quality problems complaint, we will reply customer within 5 hours, if domestic customers, we our engineers will go to solve the problem in the spot as quick as possible.
Competitive price ------

Over 90% parts produced by our own factory

Regular Starters, Next Day Delivery.
Save Money Repair it, Do not replace it.
1 year warranty
100% brand new product

Major product family:
    Alt: CS, AD, ND, Ford, SI, Leece Neville, Marelli, Bosch, Valeo, Mitsubishi, Lucas, etc.
    Str: Ford PMGR, PG260D/G/L/F1/F2/M, Bosch, Valeo, Mitsubishi, etc.
 Market (%):
     North America 60%; Middle East 15%; Europe 15%; Local 10%.


We are specialized in Auto alternator and starter motor since 2000. Quality first, price second. Usually, our alternator and starter motor can match with each other smoothly in the same model Vehicle.

Our company boasts a high-quality management team from top to bottom for the purpose of an efficient operation system. We control every part and every working procedure strictly because we regard product quality as a basis of our corporate development. Based on the original ISO9001: 2000 International Quality Management System, all links of our production and management are strictly guided by the standard of ISO/TS16949

Prod Model: Lester 13986 0124515105
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Alternator: 12V 120A
Rotation: Cw
Output Tested: 12.8V
Regulator Voltage Set Point: 14.5 ± 0.3 V
Net Weight: 6.575 Kg
Rectifier Structure: Six Tubes
Current Level: 9(',≥90A)
Bonding Type Of Magnetic Field Winding: Inner Bonding
Brushless Alternator Type: Magnetizing Type
Voltage Adjuster Type: Electromagnetic Vibratory
Voltage: 12V
Head Cover Position: Front
Brand: Bosch
Type: Alternator
Structure: Cw
Ningbo Hi-Tech Altering Motor Co., Ltd.
Factory established 1996.
Specialized in Heavy Duty diesel alternator and starter motor.
Warranty is one year after operation.
Delivery is 45 days after confirming the order.

NingBo Hi-Tech Altering Tech. Co., Ltd. Locates in Ningbo Hi-tech Zone, east of China and we are having specialized in alternator and starter motor industry since 2000. We have a full set of advanced equipments for production, inspection and testing. Now its annual production capacity is one million auto alternators and half a million auto starters. The company has a powerful R&D capability, which ensures it lead position of the manufacturing profession in the speed & quality of new products development.

The main products of ALTERING currently have over 50 series ( over 500 part numbers ) of auto alternators and auto starters, such as, PMGR, LUCAS, MARELLI, BOSCH, VALEO and so on, which are sold to America, Europe, Middle East, Southeast Asia, etc...We turnover ranks high in the manufacturing profession. The company is making efforts to expand business of aftermarket and OEM as well. Up to now, We have been a supplier of several domestic vehicle manufacturers.

We pursues the corporate philosophy of "quality first, prestige first" all the time, and keeps developing more and more new products. We welcome peoples of all circles to visit or call for business cooperation.
