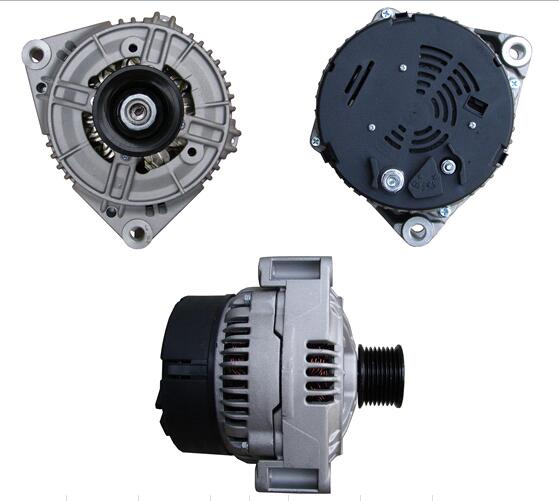

12V 115A Alternator for Bosch John Deere Lester 12370 0123512500

Unit Type	Alternator
Part Type	UNIT
Voltage	12
Rotation	CW
Amperage	115
Pulley Class	SD8
Regulator	IR
Fan Type	IF
Manufacturer	BOSCH
Brief	JOHN DEERE 8-GROOVE PULLEY 50mm OD ADDL INFO: 70/115 AMP SEARCH: 494229 (ISKRA)
Detailed	Rotor # 0-124-035-504 Stator # 1-125-045-589 Regulator # 1-197-311-552 Rectifier # 1-127-319-806 Pulley # 1-126-601-596 Original Units Had a Long Nexk on the Pulley But Replacement Pulleys Do Not Have This Neck.

MFG#	MFG NAME
ABO0430	ARROWHEAD
BAL5053X	ARROWHEAD (OEM)
IA1095	ARROWHEAD (OEM)
1400-0528	ATLANTIC
1400-0577	ATLANTIC
12370	LESTER
220-5015	PIC
02512500	ANDRE NIERMANN
12370	BBB HD
0-123-512-500	BOSCH
112062	CARGO
A-6349	DIXIE
AL111676	JOHN DEERE
AL114093	JOHN DEERE
SE501827	JOHN DEERE
IA 1095	LETRIKA (ISKRA) AFTERMARKET
LRA01949	LUCAS ELECTRICAL EUROPE
X612370	MPA HD
12370	NAPA HD
90-15-6390	WILSON
90-15-6390	WILSON HD
ALT10298	WOOD AUTO

MAKE	TYPE	MODEL	YEAR	ENGINE
JOHN DEERE	Tractors - Farm	5620	All	JD 4-276 72HP Dsl
JOHN DEERE	Tractors - Farm	5620	All	JD 4-276 72HP Dsl
JOHN DEERE	Tractors - Farm	5720	All	JD 4-276 80HP Dsl
JOHN DEERE	Tractors - Farm	5720	All	JD 4-276 80HP Dsl
JOHN DEERE	Tractors - Farm	5820	All	JD 4-276 88HP Dsl
JOHN DEERE	Tractors - Farm	5820	All	JD 4-276 88HP Dsl
JOHN DEERE	Tractors - Farm	6010	All	All
JOHN DEERE	Tractors - Farm	6010	All	All
JOHN DEERE	Tractors - Farm	6110	All	JD 4-276 84HP Dsl
JOHN DEERE	Tractors - Farm	6110	All	JD 4-276 84HP Dsl
JOHN DEERE	Tractors - Farm	6120	All	JD 4-276 80HP Dsl
JOHN DEERE	Tractors - Farm	6120	All	JD 4-276 80HP Dsl
JOHN DEERE	Tractors - Farm	6210	All	JD 4-276 90HP Dsl
JOHN DEERE	Tractors - Farm	6210	All	JD 4-276 90HP Dsl
JOHN DEERE	Tractors - Farm	6220	All	JD 4-276 90HP Dsl
JOHN DEERE	Tractors - Farm	6220	All	JD 4-276 90HP Dsl
JOHN DEERE	Tractors - Farm	6310	All	All
JOHN DEERE	Tractors - Farm	6310	All	All
JOHN DEERE	Tractors - Farm	6310S	All	All
JOHN DEERE	Tractors - Farm	6310S	All	All
JOHN DEERE	Tractors - Farm	6320	All	All
JOHN DEERE	Tractors - Farm	6320	All	All
JOHN DEERE	Tractors - Farm	6320L	All	All
JOHN DEERE	Tractors - Farm	6320L	All	All
JOHN DEERE	Tractors - Farm	6410	All	All
JOHN DEERE	Tractors - Farm	6410	All	All
JOHN DEERE	Tractors - Farm	6410S	All	All
JOHN DEERE	Tractors - Farm	6410S	All	All
JOHN DEERE	Tractors - Farm	6420	All	All
JOHN DEERE	Tractors - Farm	6420	All	All

JOHN DEERE	Tractors - Farm	6420L	All	All
JOHN DEERE	Tractors - Farm	6420L	All	All
JOHN DEERE	Tractors - Farm	6510	All	All
JOHN DEERE	Tractors - Farm	6510	All	All
JOHN DEERE	Tractors - Farm	6510S	All	All
JOHN DEERE	Tractors - Farm	6510S	All	All
JOHN DEERE	Tractors - Farm	6520	All	All
JOHN DEERE	Tractors - Farm	6520	All	All
JOHN DEERE	Tractors - Farm	6520L	All	All
JOHN DEERE	Tractors - Farm	6520L	All	All
JOHN DEERE	Tractors - Farm	6610	All	All
JOHN DEERE	Tractors - Farm	6610	All	All
JOHN DEERE	Tractors - Farm	6620	All	All
JOHN DEERE	Tractors - Farm	6620	All	All
JOHN DEERE	Tractors - Farm	6810	All	All
JOHN DEERE	Tractors - Farm	6810	All	All
JOHN DEERE	Tractors - Farm	6820	All	All
JOHN DEERE	Tractors - Farm	6820	All	All
JOHN DEERE	Tractors - Farm	6910	All	All
JOHN DEERE	Tractors - Farm	6910	All	All
JOHN DEERE	Tractors - Farm	6920	All	All
JOHN DEERE	Tractors - Farm	6920	All	All
JOHN DEERE	Tractors - Farm	7220	All	All
JOHN DEERE	Tractors - Farm	7220	All	All
JOHN DEERE	Tractors - Farm	7320	All	All
JOHN DEERE	Tractors - Farm	7320	All	All
JOHN DEERE	Tractors - Farm	7420	94-On	All
JOHN DEERE	Tractors - Farm	7420	94-On	All
JOHN DEERE	Tractors - Farm	7520	94-On	All
JOHN DEERE	Tractors - Farm	7520	94-On	All

AEP Number	AEP (OEM)	PART TYPE
BRG0016	35-4000E	BEARING
BRG0078	BF00M990434	BEARING
ABO7503		BRUSH
ABO7507		BRUSH SET
	B1125500645	COVER - RECTIFIER
HDW5117		NUT
ABO5054	B1126601596	PULLEY
ABO5034	920650	PULLEY
ABO1299		RECTIFIER
ABO6078		REGULATOR w/BRUSHES
ABO3025		ROTOR
ABO3502		SLIP RING
ABO4046	B1125045567850	STATOR
		TEST LEAD
	B1120591509	TOLERANCE RING

We control the raw material with strict standard, especially for the copper wire. We use 10# steel and good magnet materials.

Production Equipment:

The armature and stator are produced by automatic equipment.

Inspection equipment:

We have more than 60 quality inspection equipment. We can inspect all items according to starter GB standard and analyze the quality differences.

Armature, stator, solenoid switch and the starter assembly are all 100% inspected.

Whole set laboratory equipment:

We have whole set laboratory equipment for the starter performance test.

Market share:

We are No 1 for single cylinder diesel engine starter production in China. The annual selling quantity is more than 400000 sets.

Experiences:
Plentiful Experience to ensure quality
Most of our workers are with more than 10 years even 20 years experiences.
Our R&D engineers are also with more than 20 years experiences.

9.  After-sales service:
Good and fast response for after- sale Services
Once we receive quality problems complaint, we will reply customer within 5 hours, if domestic customers, we our engineers will go to solve the problem in the spot as quick as possible.
Competitive price ------

Over 90% parts produced by our own factory

Regular Starters, Next Day Delivery.
Save Money Repair it, Do not replace it.
1 year warranty
100% brand new product

Major product family:
    Alt: CS, AD, ND, Ford, SI, Leece Neville, Marelli, Bosch, Valeo, Mitsubishi, Lucas, etc.
    Str: Ford PMGR, PG260D/G/L/F1/F2/M, Bosch, Valeo, Mitsubishi, etc.
 Market (%):
     North America 60%; Middle East 15%; Europe 15%; Local 10%.


We are specialized in Auto alternator and starter motor since 2000. Quality first, price second. Usually, our alternator and starter motor can match with each other smoothly in the same model Vehicle.

Our company boasts a high-quality management team from top to bottom for the purpose of an efficient operation system. We control every part and every working procedure strictly because we regard product quality as a basis of our corporate development. Based on the original ISO9001: 2000 International Quality Management System, all links of our production and management are strictly guided by the standard of ISO/TS16949
