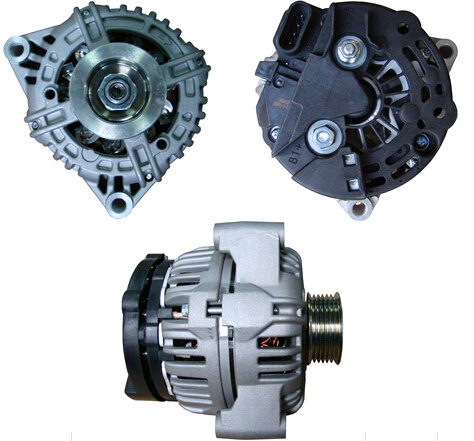

12V 105A Alternator for Bosch Chevrolet Lester 11073 0124325133

Unit Type	Alternator
Part Type	UNIT
Voltage	12
Rotation	CW
Amperage	105
Pulley Class	S6
Regulator	IR
Fan Type	IF
Manufacturer	BOSCH
Brief	CHEVROLET ASTRO, EXPRESS VAN 4.3L 2005 GMC SAFARI, SAVANA VAN 4.3L 2005 CHEVROLET MONTE CARLO (SOUTH AMERICA) 6-GROOVE CONV. PULLEY 57mm OD ADDL INFO: B+ 12:00 - PLUG 11:00 (POINTS REARWARD) ADDL INFO: TAG SAYS 105A - 100A IN SMALLER LETTERS SEARCH: 547150 (105A - B+ 8:00 and PLUG 11:00 - POINTS REARWARD) SEARCH: 491277 (105A - B+ 12:00 and PLUG 11:00 - POINTS REARWARD) SEARCH: 491279 (100A - B+ 4:00 and PLUG 8:00 - POINTS REARWARD) SEARCH: 491280 (105A - B+ 9:00 and PLUG 8:00 - POINTS REARWARD) SEARCH: 491281 (100A - B+ 9:00 and PLUG 8:00 - POINTS OUT TO SIDE) SEARCH: 491282 (105A - B+ 12:00 and PLUG 11:00 - POINTS OUT TO SIDE)
Detailed	There are Basically 6 Different Versions of This Alternator Depending on the Plug Location, and Whether It Points Rearward or Out to the Side. There are 4 Versions Pointing Rearward and 2 Versions Pointing Out to the Side. Of the 4 Versions Pointing Rearward, There are 2 Different Plug Positions, and Each Position May Have the Battery Stud Either on the Left Side of the Rectifier, or on the Right Side. It is Quite Possible That Many oof These Versions Can Be Interchanged, as They are All Electrically the Same, and Have the Same 6-Groove Pulley. This is a 105A Bosch Alternator Used on the 2005-On Chevrolet Astro and Express and GMC Safari and Savana Vans. Also Note That the Tag on the Back of the Alternator says 105A in Large white Letters Yet Also Says 100A Below That. It May Actually Be a 100A Rated Alternator. The 11073 and 11076 are Basically the Same Unit, and Should Be Able to Be Used Interchangeably. Besides the 5 Amp Differences Between the Units, There is Also a Slight Battery Terminal and Plug Location Difference Which Has Not Been a Factor in Those Trucks Observed. Also, From All Outward Appearances, These Bosch Units Mentioned Above Appear to Be Versions of the Delco 8291 Also Used on Chevrolet / GMC Light Trucks. All Units Have a Similar Mounting, Use the 4-Pin Plug and Have a Conventional 6-Groove Pulley.

ABO0242	ARROWHEAD
11073	LESTER
220-5207	PIC
11073	BBB
11073	BBB NEW
0-124-325-133	BOSCH
A-6495	DIXIE
11073N	EMS
8224	EXCEL
15124532	GENERAL MOTORS
213-9628	NAPA POWER PREMIUM PLUS
A3073	USA INDUSTRIES
11076N	WAI
1-2583-01BO	WAI
90-15-6432	WILSON
90-15-6465	WILSON
90-15-6465	WILSON NEW
12750	WORLDWIDE

MAKE	TYPE	MODEL	YEAR	ENGINE	UnitType	AEP	LESTER
CHEVROLET	Auto and Light Truck	ASTRO VAN	2005	4.3L(262) V6	Alternator	ABO0242	11073
CHEVROLET	Auto and Light Truck	EXPRESS VANS	2005	4.3L(262) V6	Alternator	ABO0242	11073
CHEVROLET	Auto and Light Truck	EXPRESS VANS	2005	4.8L(294) V8	Alternator	ABO0242	11073
CHEVROLET	Auto and Light Truck	EXPRESS VANS	2005	5.3L(323) V8	Alternator	ABO0242	11073
CHEVROLET	Auto and Light Truck	EXPRESS VANS	2005	6.0L(364) V8	Alternator	ABO0242	11073
GMC	Auto and Light Truck	SAFARI VAN	2005	4.3L(262) V6	Alternator	ABO0242	11073
GMC	Auto and Light Truck	SAVANA VANS	2005	4.3L(262) V6	Alternator	ABO0242	11073
GMC	Auto and Light Truck	SAVANA VANS	2005	4.8L(294) V8	Alternator	ABO0242	11073
GMC	Auto and Light Truck	SAVANA VANS	2005	5.3L(323) V8	Alternator	ABO0242	11073
GMC	Auto and Light Truck	SAVANA VANS	2005	6.0L(364) V8	Alternator	ABO0242	11073

AEP Number	AEP (OEM)	PART TYPE
BRG0005	ND949100-2250	BEARING
BRG0007	BF00M990405	BEARING
BRG0016	35-4000E	BEARING
		BEARING RETAINER
		CASTING - D.E.
		CASTING - S.R.E.
		PLUG CODE
		PULLEY
ABO1118		RECTIFIER
ABO6066	BF00M145330	REGULATOR w/BRUSHES
		ROTOR
ABO3502		SLIP RING
		STATOR
		TEST LEAD
