| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Amperage | 100 |
| Pulley Class | S7 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | MARELLI |
| Brief | LAND ROVER DEFENDER 90 4.0L 1997
LAND ROVER DISCOVERY 4.0L 1996-98
7-GROOVE PULLEY 52mm OD
SEARCH: 486461 (DIFFERENT PULLEY AND B+ STUD) |

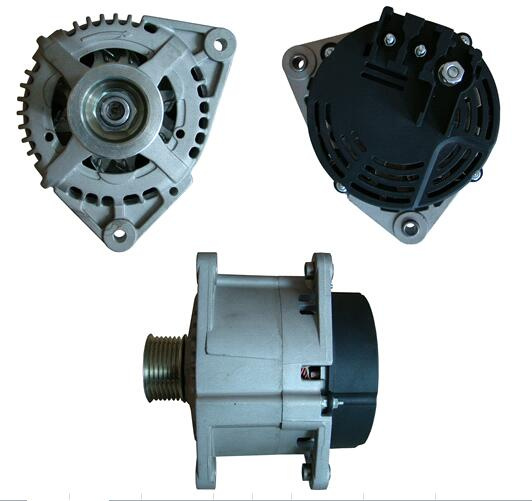

| Detailed | This is a 100A Marelli Alternator for the 1997 Land Rover Defender and 1996-98 Land Rover Discovery. This Unit Uses a 7-Groove Serpentine Pulley. There are Three Studs on the Back at 9:00 - B+ D+ And w. The 13725 is Very Similar - the Main Difference is the Type of 7-G Pulley Used (the 13725 Has a Much Larger O.D. Pulley). These Pulleys will Transfer Between Units BUT in a Change in 8/2004 Lester Has Decided to Bring Back the 13727 as a Good Number Because There is Also a Difference in the Battery Stud Between the Two Units - the 13725 is 6mm while the 13727 is 8mm. Also the Back Cover is Held on with 3 Screws on the 13725 and 4 Screws on the 13727 (Helps with Identification) So while the 13727 Had Been Superseded to the 13725 as of 11/2001 it is Now a Good Number Again (8/2004). The 13726 is the 120A Version of the 13727 (Same Pulley and B+ Stud). |
MFG#MFG NAME
|
| AMM0014 | ARROWHEAD |
| 13727 | LESTER |
| 202-124 | PIC |
| 13727 | BBB |
| 13727 | BBB NEW |
| 186-0860 | BECK ARNLEY |
| BAO3182 | BOWERS |
| 112025 | CARGO |
| 211-0141 | DENSO FIRST TIME FIT |
| A-472 | DIXIE |
| 10460 | EXCEL |
| A13727 | IAT |
| AMR4247 | LAND ROVER |
| LRB00283 | LUCAS ELECTRICAL EUROPE |
| 63321353 | MARELLI |
| 63341353 | MARELLI |
| 15946 | MPA |
| 13-9461 | NAPA |
| 213-9461 | NAPA POWER PREMIUM PLUS |
| 13-9461 | NAPA POWER SUPREME |
| A2053 | USA INDUSTRIES |
| VA586 | VALEO SHORT |
| 1-2128-02MM | WAI |
| 90-19-2509 | WILSON |
| 90-19-2509 | WILSON NEW |
| ALT12026 | WOOD AUTO |
| 13435 | WORLDWIDE |
MAKETYPEMODELYEARENGINE
|
| LAND ROVER | Auto and Light Truck | DEFENDER 90 | 1997 | 4.0L |
| LAND ROVER | Auto and Light Truck | DISCOVERY | 1996 | 4.0L |
| LAND ROVER | Auto and Light Truck | DISCOVERY | 1997 | 4.0L |
| LAND ROVER | Auto and Light Truck | DISCOVERY | 1998 | 4.0L |
AEP NumberAEP (OEM)PART TYPE
|
| BRG0007 | BF00M990405 | BEARING |
| BRG0024 | B1120905533 | BEARING |
| | | PLUG CODE |
| AMM5001 | | PULLEY |
| AMM1217 | | RECTIFIER |
| AMM1223 | | RECTIFIER |
| AMM1220 | | RECTIFIER |
| AMM6013 | | REGULATOR w/BRUSHES |
| | | ROTOR |
| | | STATOR |
| | | TEST LEAD |
