Description:
1.3-25KW series ordinary diesel generating sets have been provided with high quality water-cooled (condenser) diesel engines, engines can work well in every condition.
2. Structure of generating set:

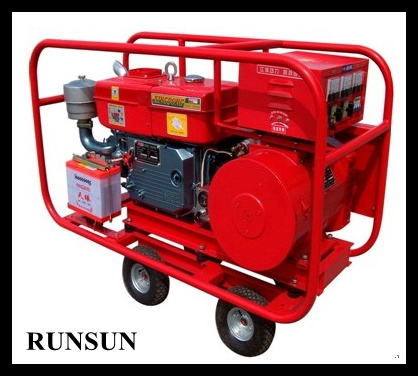

Engine has been coupled with alternator though V-belt or coupled directly with the alternator, both have been installed on the basis of anti-shock pad, the gensets has been fixed on the frame of steel pipes which has 4 wheels.
3. Easy to operate and maintain control panel capacitor type voltage regulator, no-fuse circuit breaker, over-current protectionm wheeled design, double-shaft balance design, electric start
Other maintain performance
1. Voltage steady-state regulation± 1%, fluctuation ratio 1.5; Transient-statere gulation± 10%; Steady Time 5S; Frequency Steady-state regulation 5%
2. The noise of gensets should be no more than 80dB(a)
|
Gen-set Model |
3KW |
5KW |
8KW |
10KW |
12KW |
15KW |
20KW |
24KW |
|
Diesel Engine |
Model |
175 |
180 |
195 |
1100 |
1105 |
1115 |
1125 |
1135 |
|
Starting System |
Hand cranking /electric starting |
|
Type |
Horizontal, Single-Cylinder, Four-Stroke, Water-Cooled |
|
12Hours Rated output(kw/ps) |
4.4/6 |
5.6/8 |
8.8/12 |
10.6/15 |
13.2/18 |
14.7/20 |
19.7/27 |
23.5/32 |
|
Fuel consumption (gl/KW.h) |
292.3 |
257 |
257 |
257 |
246.2 |
248.2 |
252.6 |
254.7 |
|
Cooling Type |
Evaporation (Radiator) |
|
Rated Speed |
1500/1800 |
|
Alternator |
Model |
ST-3KW |
ST-5KW |
ST-8KW |
ST-10KW |
ST-12KW |
ST-15KW |
ST-20KW |
ST-24KW |
|
STC-3KW |
STC-5KW |
STC-8KW |
STC-12KW |
STC-12KW |
STC-15KW |
STC-20KW |
STC-24KW |
|
Rated Freq.(Hz) |
50/60 |
|
Rated Voltage (V) |
230/115V Or 400/230V |
|
Rated Current (A) |
13/5.4 |
16.6/7 |
21.8/9 |
34.8/14.4 |
43.5/18.1 |
52.1/21.7 |
27.1 |
30 |
|
Rated Output (kW) |
3 |
4 |
5 |
8 |
10 |
12 |
15 |
18 |
|
Power Factor |
1 |
|
0.8 |
|
Excitation |
Harmonic Excitation or phase compound |
|
Phase connection |
1-phase or 3phase 4 wire |
|
Gen-Sets |
Dimensions(mm) |
1140X620X790 |
1520X720X990 |
1520X720X990 |
1520X720X990 |
1570X730X990 |
1570X730X990 |
1690 X 790 X 1050 |
1690 X 790 X 1050 |
|
Net Weight(kg) |
170 |
280 |
350 |
380 |
400 |
420 |
680 |
720 |
