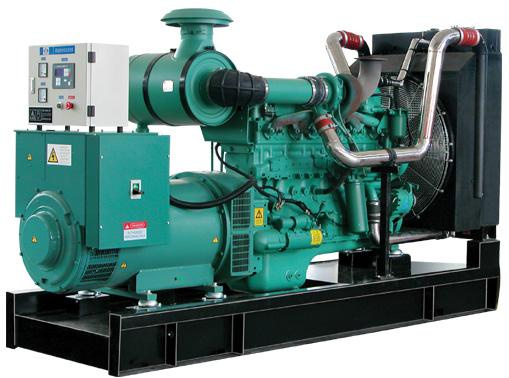

125kVA Cummins Diesel Generator Set
Genset Model: BCX125
Integrated parts:
1, engine with all fittings, 3 filtering and electrica system;
2, genretor
3, control system
4, radiator
5, power switch
6, base frame
Scattered parts:
1, exhaust gas system: Muffler, exhaust elbow, corrugated tube etc;
2, accumulator and cable
3, damping parts
4, data encloCummins Series Genset/Diesel Generator/Diesel Genset/Diesel Generator Set/Generating Set Power From 20KVA up to 1250KVA, with compacted structure and best configuration.
OEM CUMMINS Powered Diesel Generator Sets with its high reliability, low use and maintenance cost win the loyalty of many customers in the field of Army, transportation engineering system and mine industries. Established in 1919, headquartered in Columbus, Indiana, (USA) Cummins Inc. Serves customers in more than 160 countries and territories through its network of 680 Company-owned and independent distributor locations and more than 5, 000 dealer locations.
As the largest foreign engine investors of China, Cummins possess Chongqing Cummins Engine Co., Ltd (produce M, N, K series engine) and Dongfeng Cummins Engine Co., Ltd (produce B, C, L series engine ) and produce CUMMINS engines with globally uniform quality standards.
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets.
1, DCEC Cummins Diesel Engine
2, Stamford / Leroy Somer / Marthon Alternator
3, CE Approved
4, One Year Warranty
|
GenSet Model |
BCX100 |
|
Continuous Output |
100KW / 125KVA |
|
|
|
Engine Brand & Model |
Cummins 6BTA5.9-G2 |
|
Type |
Water-cooled, 4-stroke, Natural Engine |
|
No. of cylinder |
6 |
|
Bore x Stroke |
114x135mm |
|
Engine power |
110kw |
|
Compression ratio |
17.5: 1 |
|
Fuel consumption |
≤ 208g/kw. h |
|
Displacement |
5.9L |
|
Engine speed |
1500rpm |
|
Steady Speed Drop |
≤ 1% |
|
Lubricant Capacity |
16.4L |
|
Coolant Capacity |
11L Engine Only |
|
Starting system |
D. C. 24V electric start |
|
Cooling way |
Positive Water Cooling Cycle |
|
|
|
Alternator Brand & Model |
Stamford UCI274D |
|
Frequency |
50HZ |
|
Voltage |
380/220V |
|
No. of phases |
3 |
|
Excitation |
brushless |
|
Insulation class |
H |
|
Power factor |
0.8 |
|
Protection Grade |
IP23 |
|
Altitude |
≤ 1000m |
|
Voltage Regulation, Steady State |
≤ ± 1% |
|
|
|
Control Panel - Standard equipped or LCD digital control module |
|
Options: ATS, Base Fuel Tank |
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
