We are the professional generator manufacturer with OEM factory in Guangzhou
Many style generators are stock available
10kVA 25kVA 30kVA 60 kVA 80kVA 100kVA 125kVA 150kVA 200kVA 250kVA 300kVA 1000kVA available
Specifications
1.1250kVA 16 cylinder water cooled generator with canopy
2. Generator Super silent 65 DB
3. Auto panel
4. Four Protection
Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 50kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice (brushless with AVR)
1. Stamford Newage
2. Leroy Somer
3. Marathon
4. Leateck

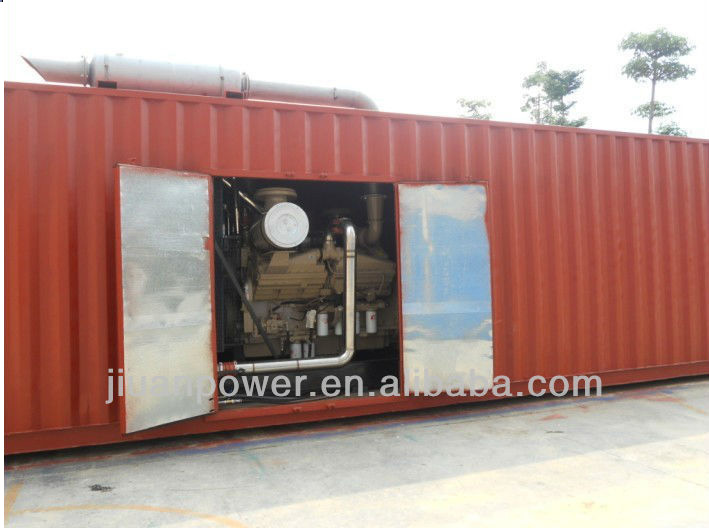

Diesel Generator Set 1250KVA |
Generator Specifications | Generator Model | CDC1000KVA/1250KW |
Generator Prime Power | 1000KW/1250KVA |
Generator Standby Power | 1100KVA/1375KW |
Generator Engine Model | CCEC Brand New Cummins |
Generator Alternator | Stamford;Marathon;Leroy Somer;Faraday;Stamford copy |
Canopy for Choice | Super silent;Silent;Open frame;Trailer |
Controller | Smartgen or Deepsea |
Dimensions (L*W*H) | 4500*1800*1900mm=15.39CBM |
20FT/40HQFT Container | 2PCS/4PCS |
Generator Warranty | 1800 hours or 1 year subject to the ealier one. |
Generator MOQ | 1PCS |
Certificate | SGS;Cummins Authorized Factory;TUV;Soncap |
Payment | T/T or Cash |
Please give detail needs in your inquiry, so that we can make power solutions for you. |
MODEL | CDC1000KW/1250KVA |
Powered by Cummins Engine |
Prime Power (50HZ) | 1000kw/1250KVA |
Standby Power (50HZ) | 1100kw/1375KVA |
Power Factor | 0.8 (Lagging) |
Phase Wires | 3-phases 4-Wires |
Start Model | Electric |
Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
Engine Model | CCEC Cummins KTA50-G3 4-Cycle |
Cylinders | 16 |
Cylinder Arrangement | V |
Bore x Stroke(mm) | 159X 159 |
Compression Ratio | 13.9:1 |
Speed | 1500rpm |
Cooling Method | Water – cooled |
Starting Method | 24V DC electrical start |
Full Load Diesel Consumption (L/H) | 231 |
Engine Displacement (L) | 37.8 |
Inspiration (L) | Turbocharged Intercooled |
Lube Volume (L) | 177 |
Coolant Volume (L) | 300 |
Noise (Db) | ≤ 80 |
Alternator Model | Newage Stamford LVI634G or Leadtech LTG404H |
Alternator Power | 1000KW/1250KVA Brushles with AVR |
Voltage | 380/220V,400/230V,415/240V,220/127V |
Protection | IP23 |
Voltage Regulation | ±4% |
Insulation Class | H |
Voltage Control | AVR |
Net Weigh (KGS) | 6700 |
Dimensions (L x W x H) mm | 4500*1800*1900 |
Controller | Smartgen 6110 or Deepsea 7320 |
Standard | Muffler * 2PCS |
| Battery 120A * 2 PCS |
Optional | ATS (auto transfer switch) |
| AMF(auto mains failure) |
| Containerized |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
