Home Generator Products 1250kVA/1000kw Diesel Generator Set Powered by Perkins Engine

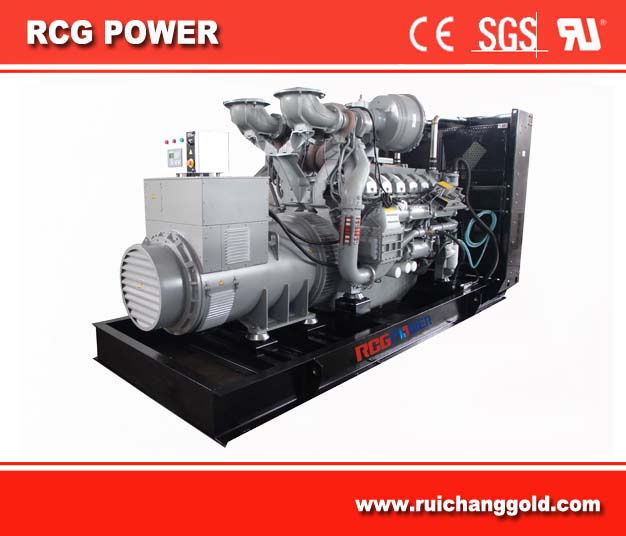

1250kVA/1000kw Diesel Generator Set Powered by Perkins Engine

1250kVA/1000kw Diesel Generator Set Powered by Perkins Engine
Price: US $ 2000-999999/Piece
Trade Terms: FOB,CIF,others
Min Order: 1/Piece
Pay Type: L/C,T/T
MODEL
R-P1250

PRIME POWER (KVA/KW)
1250/1000
STANDBY POWER(KVA/KW)1375/1100
Rated voltage(V)400/230
Rated speed(rpm)1500
Rated frequency(Hz)50
Power factor0.8
Ambient temperature(ºC)40
Altitude(m)1000
Connection type3 phase  4 wires
ENGINE MANUFACTURER
PERKINS

Model
4012-46TWG2A
Rated Power(kW)1166
No. of cylinders & configuration12 vee form
Method of operation4-stroke
Speed regulationElectric governor
Starting systemDC 24V Electronic start
Cooling methodClosed-circuit cooling system
Total displacement(L)45.842
Compression ratio13.6:1
Bore×Stroke(mm)160×190
100% Load fuel consumption(L/h)≤259
ALTERNATOR MANUFACTURERSTAMFORD
Number of Phase3
Connection Type3Phase and 4Wires
Number of Bearing1
Power Factor0.8
Protection GradeIP23
Terminal12
Winding/ Pitch100% Copper   2/3 Pitch
Cooling FanCast alloy aluminum
Exciter TypeBrushless, Self-Exciting
Insulation Class, Temperature RiseH/H
Telephone Influence Factor( TIF)TIF <50 / THF<2%
Total Harmonic TGH/THC<1.5% at no load / <5% at load
Voltage Regulation, Steady State≤±1%
Sustained Short-Circuit Current300%(3 in):10s
CONTROL SYSTEMDSE SERIES


1). Alternator
Original Stamford & Marathon & Siemens Alternator with brushless self-excited, AVR, H Class Insulation, IP23 Protection.

2). Control System
Adopt the top brand Deepsea controller( DSE510, DSE5210, DSE5320, DSE5220 etc) and ComAP Controllers( MRS-10, MRS-16. MRS-15 etc) with manual, automatic & remotely operation for the users.

3). Test & Commissioning
Each generator has been got through 2 hous load test for running 0%, 25%, 50%, 75%, 100% and one hours overload test

4). Standard Accessories:
Standard radiator mounted on skid, common steel frame, circuit breaker, damper, exhaust pipe, battery, shock pad, operation manual, silencer, test report and certificate

5). Warranty
All equipment is warranted for a period of 1000 hours or 12 months fro mthe date of commissioning.

6). Certificate: ISO9001: 2000, BS4999, BS5000, BS5514, CE, EPA, ISO4001: 2004

7). Package: Standard exporting Plywood Case
Prod Model: R-P1250
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand: Perkins
Alternator Brand: Stamford
Using: Marine Generator
Model: R-P1250
Power / Capacity: 1000kw / 1250kVA
Engine Model: 4012-46twg2a
Alternator Model: Lvi634G1
Frequency: 50Hz
Voltage: 400/230V
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Speed: 1500rpm
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd., established in 1982, is a manufacturer of a wide variety of diesel generator sets and portable power supplies. We are able to offer high quality diesel generator sets with imported engines, trailer-mounted power stations, mobile and container power stations, and even bunker power generator sets.

Our products are suitable for such industries as defense, telecommunications, transportation and natural resources. Additionally, buildings including hospitals, banks, and offices may use our power stations as either a mobile or stationary backup power supply. We accept special orders from clients and are able to meet all kinds of special technical requirements.

As a Sino-foreign joint-venture (Ruichang Gold Co., Ltd. Hong Kong and Wuxi Ruichang Electro Equipment Plant), we aim for the highest quality standards. We are ISO9001 certified and our products are manufactured according to strict internal quality control standards.

Our company principle is "Customers and credibility first" and always provide superior services and free consultation. Whether your inquiries are regarding product selection, systems integration, generator room designs or other technical details we will be happy to assist you with your needs.

We welcome both new and existing customers to come take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
