1200W Wind Turbine Generator
MAX Series Small Wind turbine Characteristics:
Low start-up wind speed
Low wind speed serie small wind turbine for home generate more than 60% effective power than the same rotor diameter wind generator annually.
High-efficient Generator
Three-phase permanent magnet synchronous wind generator, more than 10% of the efficiency of ultra-GB, starting resistance, only be 1/3 of the GB limit, motor insulation rating class H insulation.
Innovative Noise Reduction Technology
Start and product electricity at the 1.5m/s, noise only at 40dB at 13m/s/.
Perfect Wind Wheel System
The wind turbine wheel are made of a low temperature resistance, aging high strength compound material, can cope with a variety of complex wind conditions, charge wind energy into electrical energy efficiently and sustainably...
Unique Design Of The Rudder
Wind Generator rudders are ale to respond to the wind speed and wind direction flexibly, enhancing the efficiency of power generation.
The details about the wind turbine

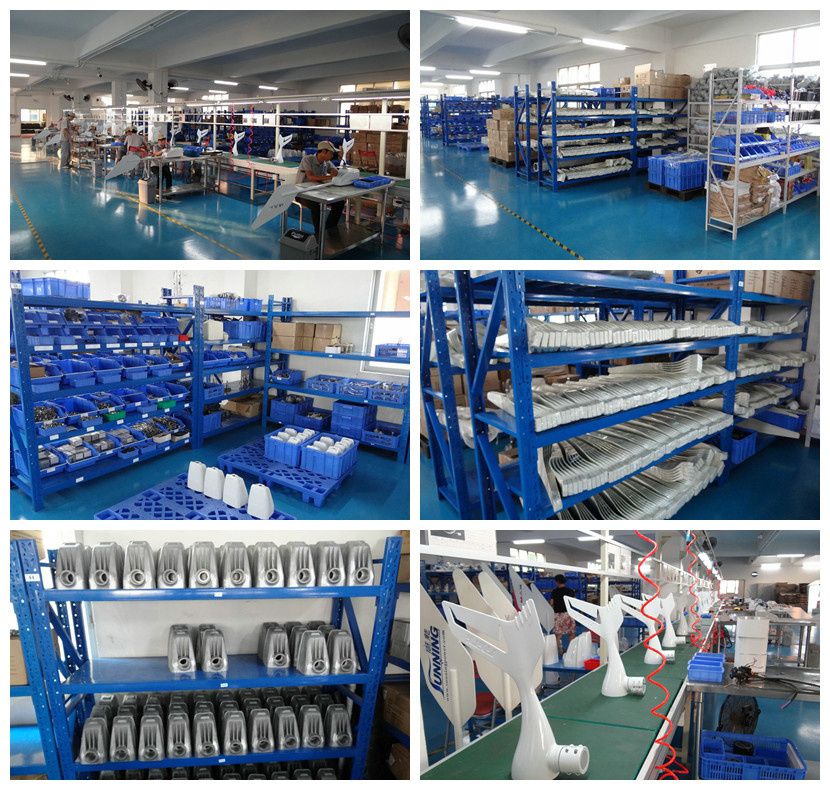

our factory
MAX 1200W Wind Turbine Technical Specifications |
Rated output power | 1200W |
Maximum outpower | 1300W |
Start-up wind speed | 1.5M/S |
Cut-in wind speed | 2.0M/S |
Rated voltage | 48V/110V |
Rated RPM | 650 |
Rated wind speed | 12M/S |
Rated current | 25/11A |
Rotor diameter | 2.0M |
Body | Cast aluminum |
Blades | 5 PC Nylon Fiber |
Overspeed Protection | The controller of Electromagnetic braking magnetic damping and blades stall |
Working temperature | -40°c~120°c |
Survival Wind Speed | 35 m/s |
Type of generator | Brushless three phase permanent magnet generator |
Connection | Flange connection |
Controller | PWM controller |
Certificate | ISO9001:2008 CE RoHs |
Warranty | 3 year limited warranty |
Guangzhou SUNNING Wind Power Generator Co., Ltd is a high energy saving technology company which focus on research, development, production and sales of small wind turbine. OEM service is available. With years experience, advanced technology, professional team and long standing friendly relationship with domestic and overseas cooperation, we make a great contribution into energy saving and environmental protection business. Our company achieve the non-pollution goal through our perfect after-sale service and rational price system. The system in widely used in street, landscaping, Residential lighting, monitoring, the communication base station, sailboat, etc. The occasion is a time when the global renewable energy universal application, wind and solar energy industry has entered the era of rapid development, the company is willing to work with the community of people with lofty ideals to a win-win situation, seek common development, and create a better tomorrow. WEBSITE: Www. Sunningwind. COM
