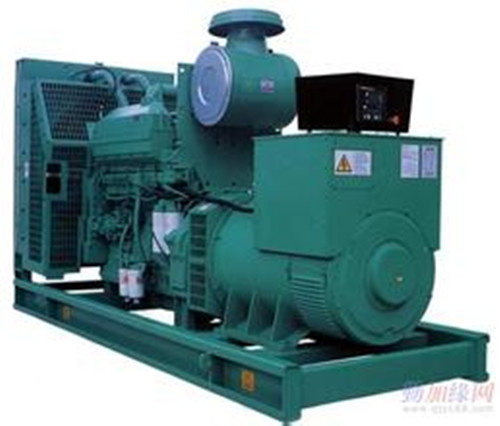

1200kw Cummins Kta50-G3 Diesel Generator Set

1200KW Cummins diesel generator backup configuration and technical parameters
Configuration: Cummins Power with "Baifa" Motor
Conditions of use:
Not more than 2500 meters above sea level, the power is not reduced.
Ambient temperature: -25 ~ + 50 ºC
Indoor use ventilated conditions
Non-corrosive gases and non-conductive dust place
First, the Cummins diesel generator BF-K1200 Basic configuration:
1. Cummins water-cooled diesel engine
2.24V DC starter motor and alternator
3. Electronic governor
4. Single-bearing generators, level H
5. Standard voltage 400 / 230V, 50Hz
6. Exciter / voltage adjustment torque Match
7. The fuel filter and oil filter, oil-water separator
8. The oil drain valve
9. Often contained air filter
10. Annex provides a muffler (9 db)
11. Random starting battery installation
12. The digital control system as standard automation
Digital control engine speed
Digital voltage regulator
AC output analog and digital instrument display
Battery Monitoring System
Smart Start control system
Advanced service capabilities
Network communication
13. The connection between the use of damping chassis and engines and generators
14. The operation and maintenance manual
15. Standard configuration label
Second, the engine specifications:
1. Cummins KTA50-G3 Engine
2. Inline direct injection
3. Number of cylinders: 12 cylinders
4. Engine type: Water-cooled, four-stroke
5. Aspiration: Turbocharged, intercooled
6. Features: Two valves per cylinder, cast-cylinder crankshaft, cast iron body
7. Start System: 24VCD negative ground, charging generator rated current of 35 AMPS, at ambient temperature zero starting current 450 AMPS
8. Fuel system: 24VCD stop the oil solenoid valve: Fuel pump with spin filter, fuel pump with mechanical governor with double fuel lines and fittings, standard oil-water separator
9. Filter: Dry air with resistance indicator, full flow oil filter Spin
10. Cooling system: Standard 50 degrees tank, oil cooler, drain valve
Third, the generator specifications
1. Rated Power: 1200KW
2. Rated current: 2160A
3. Rated frequency: 50Hz
4. Rated voltage: 400/230
5. Rated speed: 1500 / min
6. Power Factor: 0.8
7. Transmission: High elastic soft drive
8. Excitation mode: Brushless excitation
9. Anti-falling objects design
10. H grade insulation, protection class IP22
11. IC 01 Cooling System
12. AC exciter and rotating rectifier unit
13. The stator windings with epoxy coating
14. The exciter rotor windings insulated oil and anti-acid treatment
15. Rotor balancing test carried out in accordance with BS5625, maintenance-free bearings result meets 2.5
16. The exciter winding through moisture, oil, anti-acid triple treatment
17. Output windings with 2/3 pitch winding, effectively improve the harmonic and parallel characteristics
Fourth, set technical parameters
1. Unit Model: BF-K1200
2. Rated power: 1200KW
3. Rated current: 2160A
4. Rated frequency: 50Hz
5. Rated voltage: 400/230
6. Rated speed: 1500 / min
7. Start: Electric start
8. Connection mode: Three-phase four-wire
9. Engine Model: KTA50-G3
10. Number of cylinders: 12 cylinders
11. Engine Type: V-type
12. Governor Type: Electronic Speed
13. The intake and cooling: Booster
14. Bore: 159 × 159
15. Displacement: 50L
16. Start the lowest temperature: No auxiliary starting device / -14 ºC
17. Net engine output - common: 1097KW
18. Net engine output - Standby: 1227KW
19. Fuel: Common Hourly 180g / kw.
20. Oil Capacity: 135L
21. Coolant Capacity: 560L
22. The exhaust gas temperature 460 ºC
23. The exhaust gas flow rate: 493 / min
24. Minimum inlet area: 5.35
25. Minimum ventilation area: 5.15
26. Dimensions (C * W * H): 5400 × 2000 × 2300
27. Weight: 11600kg
Fifth, random accessories
1. Diesel random accessories
2. Battery 2
3. Muffler 1 set
4. Diesel Manual 1 set
5. Manual 1 generator set

Automated device (optional item)
1, 704C automatic controller 1 set
2. The ATS cabinet control template is LCD touch-control, and the implementation of 5-15 seconds adjustable switching function.
2, Zhongyinghezi think Meike automatic switch 1
3, 704C diesel generator set controller is mainly referring to Britain's deep-sea DSE5210 design, using the popular DOT matrix LCD diesel generator sets of three-phase voltage, current: The unit frequency, coolant temperature, oil pressure, engine speed, battery voltage, total running time and cause of the malfunction, the real-time monitoring of the status of diesel engines, diesel generator sets to achieve automatic start and stop, offers a variety of automatic protection unit. Increased self-setting automatic start, run time, users can easily detect the timing of regular diesel generators. It provides automatic protection fault-finding, the use of different users, providing two password lock function, reduce the user's manual operation fault.

Service and commitment

Service Outline
Thank you for choosing the Electrical and Mechanical Co., Ltd. Yangzhou Baifa Cummins diesel generator sets. You choose to use Cummins diesel generator sets at the same time, you will get the best service provided by us, and pure supply of spare parts, will also receive this detailed service manual.
Our maintenance engineers and experienced maintenance professional and technical personnel will strictly comply with the service manual related to content, programs, promises to provide you with complete technical support and a diesel generator set applications.
Our services are: The user would like to customer satisfaction. We will solve your application generators, repair and maintenance of all worries.
We can provide users with preventive maintenance programs to reduce machine time to pay a high price. We can determine unusual or urgent need of spare parts inventory in a short time, and timely ordering, supply, so when you need it most to ensure that the parts you need to put in place.
Service agencies:
First-class service organization: Yangzhou Baifa Electrical Co.Ltd
second-class service: Beijing Baifa Kangwo Electrical Equipment Co.Ltd

Tertiary services agencies: Cummins engines and generators in offices around Baifa
Service Mode
Warranty:
Unit any unusual breakdown, we offer free damaged parts, as soon as possible to send replacement parts to the construction site, and provide remote technical and service support. To the unit returned to normal performance.
Remarks:
Defined warranty period: 1, 000 running operating hours or 1 year (whichever occurs first), all due to factory assembled negligence or improper design and use of raw materials and other factors caused the damaged parts or units other faults, can be made for Merchant warranty.
Diesel generators wearing parts, accessories for daily use, human error, negligence, maintenance, etc., are not within the scope of this warranty.
Warranty period
All parts are provided at cost, we continued to provide technical support and services.

Services
Users of our services is to use end-user Cummins generator sets.
When you start to want to purchase power generating equipment or you are using a generator, we offer a wide range of systems and technical services.
To comply with the technical specifications of your generating set to provide free advice.
Ordering from the date of purchase for your help check generator set, positioning, to ensure that your generators put into normal operation in the shortest possible time.
Provide your technical staff training, management and routine maintenance.
Preventive maintenance and repair, so your operating costs under control.
Provide a lot of spare parts and accessories, and maintenance engineers available to provide remote technical assistance for you.
It offers free room design, distribution design, and application specification diesel generator set.
Service Details
Technical service center is on the use of Cummins generators of end-users and pre-sale service of a professional services organization.
Where purchased through authorized dealers generators will always be in our service area of responsibility, from debugging to be delivered on the day the user is entering the shelf life. Pay machine after a shelf life of 12 months. In the meantime, if the unit is in use 1000 hours, we will be treated the same shelf full. But users need to be stored in accordance with our service center proposed concerning diesel generator, maintenance requests.
Users in normal use, as a diesel generator failure, the service center for repair me. We will be compensated for failure damaged parts in accordance with procedures relating to the claim, no charges of any kind.
In the future the service, users can also apply commissioned by the Beijing Power Equipment Co., Ltd. Baifa Kangwo service center for regular maintenance and repair, we commissioned after receiving the application and delivered to the user of a maintenance agreement, confirmed by both parties. Users only need to pay the cost to get regular maintenance and care for my service centers. He asked me not to participate in the application service center for regular maintenance and maintenance user when a device fails, the company will send personnel for maintenance work. Only charge the cost of replacing damaged components and basic services (including travel, accommodation and labor costs) for servicing.
