| Price: | US $ 100000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Money Gram,Western Union |

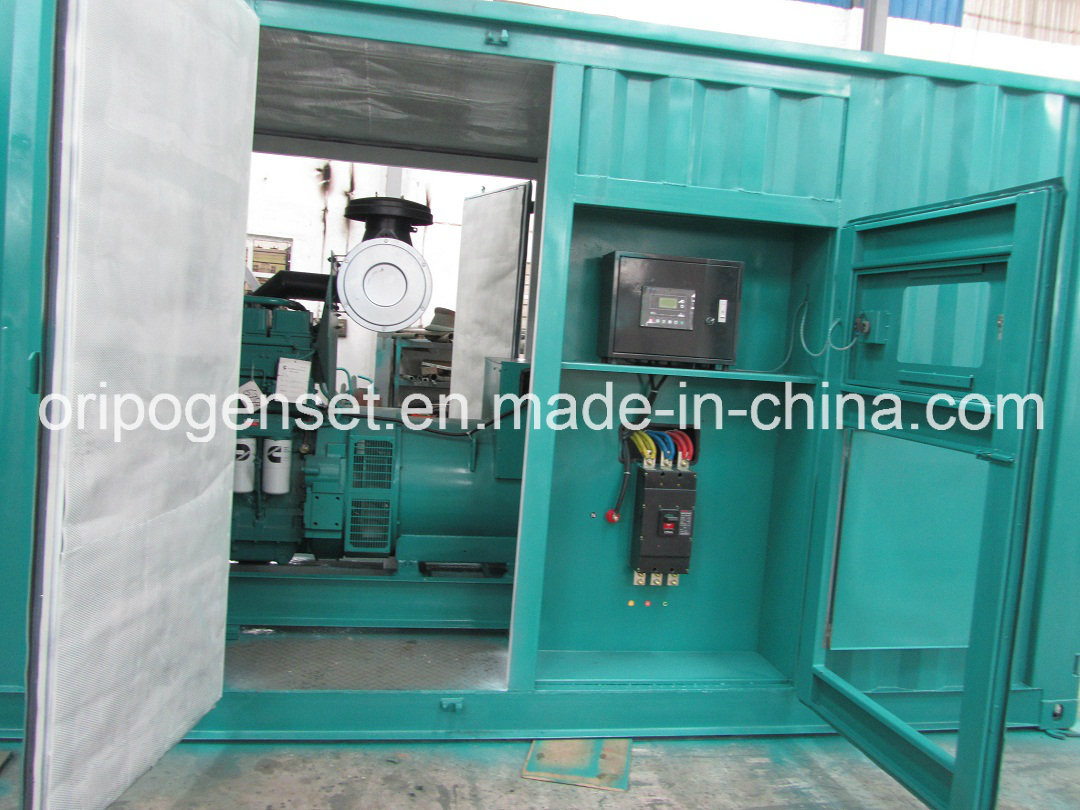

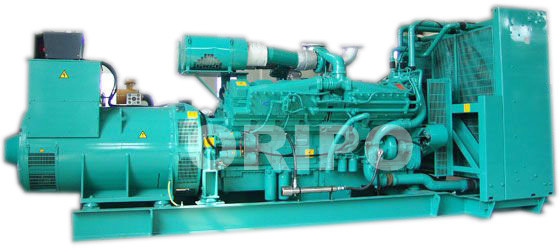

Good Quality Cheap Price 1200kVA Diesel Generator Made In China Factory with CE,ISO, SGS Control Engine of generator power plants: industrial diesel electric power generator
Origin: Manufactured by Chongqing cummins Engine Co., Ltd
Start Model: DC24V electric start
Steady Speed Droop:≤1%
12 cylinders ,in-line,12 stroke
Ac generator head:
Brand: Leadtech
model: LTG274J
Matertials:100%copper
Freqency&Speed:50HZ,1500RPM
Insulation&Protection:H, IP22
Rated Voltage: 230/400V
Frequency regulation: ≤±0.5 %(stable)
Voltage regulator: standard AVR
brushless,self-excited,AC synchronous, single bearing
Auto start control system:
Brand:Smartgen 6110 or Smartgen 6120(with ATS) optional. Customers can also select other brand such as HGM6310, HGM6320, DSE3110, DSE5110, DSE7110 and DSE7210 etc.
(1)Widely used in all types of generator automatic control system for compact structure,advanced circuits,simple connections and high reliability.
(2)LCD display,automatic control, Chinese and English display interface. Can be adjust from front panel, or use the PC through programming interface, also can use a PC via RSR485 interface and monitoring.
(3) Function:high water temperature, low oil pressure, low speed and over load protection,etc.
| GENSET TYPE | open/sound proof/weather proof/trailer/container |
| Genset output power range | 23kva-2000kva |
| Rated voltage | 220/380V,230/400V,240/415V,120/240V 240/416V,254/440V,266/460V,277/480V |
| Frequency | 50/60HZ |
| Power factor | 0.8 |
| Rated speed | 1500/1800rpm |
| Aspiration | Natural/turbocharged |
| Cooling system | Water cooled |
| Governor type | Mechanical/electrical |
| Starting system | 24V DC electric starting |
| output type | AC three phase/single phase |
| Motor | Brushless & self-excited |
| R.R.I.Suppression | BS EN 61000-6-4/BS EN61000-6-2 |
Guarantee and after sale service;
Warranty:One Year or 1000 running hours, whichever comes first. with more than one hundred maintenance shops all over worldwide, it is very easy to find the spare parts and get technology support.
24hours technical support by E-mail
testing :
All generator sets are gone through rigorous testing before being released to the market place, include 50%load,75% load,100% load,110% load and all protection fuctions (over speed, high water temperature, low oil pressure, battery change fail, emergency stop)
| Prod Model: | OCL1200 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Generator Engine: | Cummins Engine or Perkins Engine |
| Alternator: | Leateck, Stamford, Marathon, Leroy Somer |
| Control Panel: | Smartgen, Deep Sea, Comap |
| Genset Type: | Open Type or Silent Generator |
| Capacity Power: | 1200kVA |
| Current: | 2000A |
| Frequency: | 50Hz or 60Hz |
| Type: | Self-Starting Diesel Generator |
| Installation Method: | Portable |
| Stroke: | Sixteen Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
