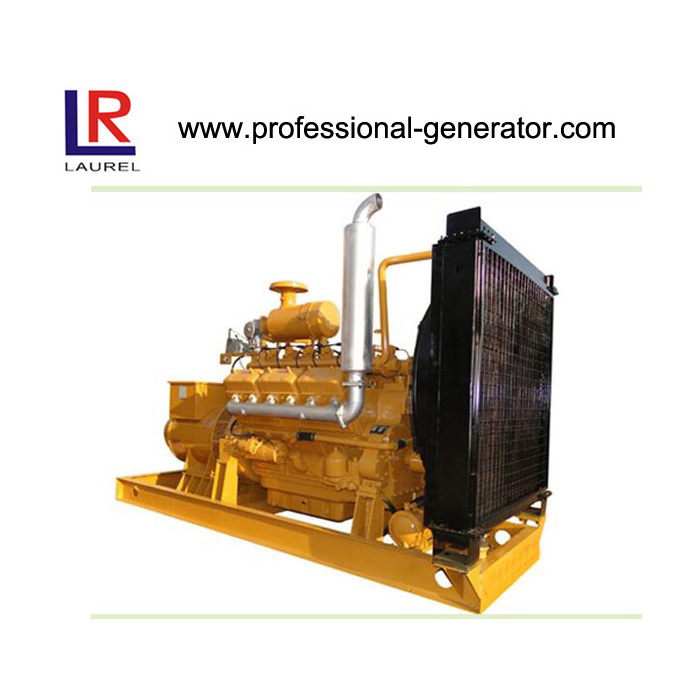

12 Cylinders Bio-gas generator 150KW Electric Start 3 Phase
Product description
Biogas generator sets application
1.Breeding enterprise-biogas generator power
2.Industry- clcohol plant ,starch factory anaerobic sewage treatment
3.refuse landfill-sewage biogas generator power
Requirements for biogas genset
Within 1m from pressure valve of gas intake
1.Gas temperature≤40ºC
2.Pressure 3~20Kpa,pressure changing rate≤1kpa
3.H2S≤200mg/Nm3
4.NH3≥20mg/Nm3
5.CH4 content≥40%,changing rate≤30mg/Nm3
6.Impurity particle size ≤5μm
7.Moisture content ≤40g/Nm3
The product parameters
| Model | LR-150GFZ |
| Engine No. | CW12V135 |
| Gas mix type | Outside |
| Rated power | 150kw |
| Rated voltage | 400v/230v |
| Phase | 3phase4wrie |
| Rated frequency | 50Hz |
| Rated rotation | 1500r/min |
| Rated power factor | 0.8 |
| Rated current | 270A |
| Heat consumption | ≤11.5mj/kw.h |
| Gas pressure | 3-20kpa |
| Cylinder number | 12V type |
| Cylinder diameter | 135mm |
| Cylinder stroke | 150mm |
| Compression ratio | 10:1 |
| Aspiration mode | Naturally aspirated |
| Ignition method | Plug ignition |
| Pressure regulation | Automatic pressure regulation |
| Speed regulation | Electronic speed regulation |
| Lubrication mode | Pressure and splash lubrication |
| Cooling mode | Closed/open cooling |
| Starting mode | 24V electric motor |
| Overhaul period | ≥25000h |
| Noise | ≤105dB(A) |
| Exhaust temperature | ≤650ºC |
| Displacement | 20L |
| Genset dimensions | 4000*1200*1750mm |
| Genset weight | 4000kg |
