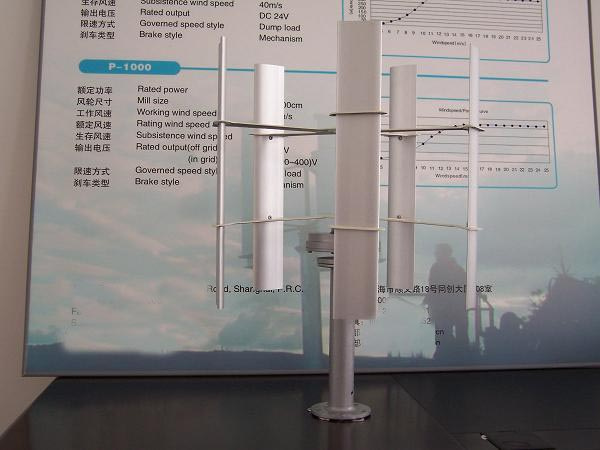

10W Vertical Axis Wind Turbine

10W Vertical Axis Wind Turbine
Price: US $ 134/Piece
Trade Terms: others
Min Order: 1/Piece
Pay Type: T/T
Rated Power: 10W
Max Power: 20W
Rated Wind Speed: 10m/s
Cut-In Speed: 2m/s
Cut-Out Speed: 40m/s
Survival Wind Speed: 40m/s

Mill Diameter: 0.3m
Mill Height: 0.3m
Mill Weight: 2kg
Tower Height & Weight: 0.18m(0.5kg)

Generator Parameters:
Type: PMG 3 Phase
Rated Voltage: AC 18V
Rated Current: AC 0.32A
Protection Level: IP54

Output Voltage: DC 12V

Packing Size: 37cm*37cm*16cm/3kg
Prod Model: P10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Generator Type: Direct-Drive Synchronous Pmg
Protection Level: Ip 54
Rotating Shaft: Vertical
Stress Way Of Blade: Lift Force
Number Of Blade: Multiple-Blade
We are a manufacturer which specialized in vertical axis wind turbine generator (vawt) research, manufacture and selling.

Our vertical axis wind turbine generator (vawt) is from 10W, 300W, 1kw, 3kw, 5kw and 10kw now. They have different market. The small model such as 10W, 300W, are used in streetlight, ad. Lamp or direction lamp etc. The kw class are used in houses, downtown family, telecommunication station etc. Our off grid inverter is according to different requirements of clients to design, such as 230V/50Hz, 110V/60Hz etc. But we don't supply the on grid inverter, our on grid controller can work well with power one's (Italy) on grid inverter.

1kw, 3kw, 5kw, 10kw products use updated technology, that is "aerodynamics" to control the rotating speed of the wind mill when wind speed is over the rated speed. The 1kw, 3kw, 5kw, 10kw have applied the electromagnetic auto-brake system which enables the remote control of the wind turbine. Therefore our products can be used in any area where the wind is very strong, they could still work stablely and continuously. This technics is the base condition of vawt. All of our products are patented and owned by us. All our products have patents which set up a barrier for new entrance.

We have CE certification.

Compare the vawt with hawt. The vawt has no noise and more safety. They have different structure, different use, different marketing. And the development of wind generator is vawt. We have the best advanced vawt technology in this field.
