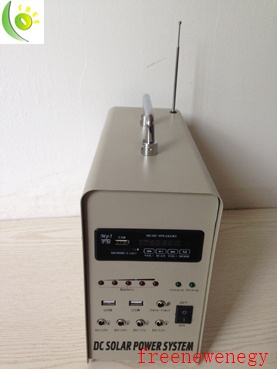

General description of this 10W portable solar system:
Strong and durable,
Easy to carry with handle
Home lighting, outdoor camping
Application of the10W portable solar system:
Charging the mobile phone, DC fans, DC lighting. Specifically for remote area farmers, and herdsmen, post, fieldwork. Camping tourism design, especially outdoor work, mobile office, power failure emergency prerequisite products.
Specification of the 10W portable solar system:
1. Solar panel: 10W
2. Lead-acid battery: 7AH/12V
3. LED lamp: 3W/12V 2pc
4. USB port: 2pcs; DC port: 4pcs
5. Multifunction cable: 1 pcs
6.4SETS/CTN MOQ: 100
Operation Method and Precaution
1. Swithch to "ON", working indicator light wil be turned on, charging function is now working, you could use it to charging and lighting. Swith to"OFF"when you finished.
2. When the battery power is low, the working indicator is off. Please charge as soon as pssible.
3. Plug the solar panel cable into SOLAR INPUT and place the module in sun everyday for efficient charging. RED indictor light shows that it is charging and it turns green when the battery is fully charged.
4. Plug in the LED lamp or CFL light, turn on the switch, you can use it to emergency lighting.
5. This controller box is fr indoor use only, Please keep it in dry and cool condition.
6. When the external short circuit LED to over-current protection, please charge for recovery,
7. Never open the charger with the tools without instruction by specially-assigned technical person.
|
main parts |
specification |
parameters |
quantity |
|
solar panel |
mono/polycrystalline |
10W |
1pc |
|
solar battery |
Free-maintenance lead-acid |
12V/7AH |
1pc |
|
solar control system |
controller |
/ |
|
|
control box |
|
1pc |
|
output |
DC 12V |
3W |
2pcs |
|
USB 5V |
5V/1000mA |
2pcs |
|
reading card acoustics |
Loudspeakers |
/ |
4R/10W |
|
SD, TFT card,UDisk |
/ |
Support2.56M/8G |
|
Infrared Remote Control |
/ |
|
|
Radio |
|
FM87.5-108 |
|
AC Charge |
/ |
|
|
|
High Power LED Lamp:12V/3W 12V/0.25A |
2PCS |
|
PRODUCT(CM) |
19*15*4 CM |
|
PACKING |
4PCS/CARTOM |
50*37.5*33.5 CM |
|
24KG/Carton |
