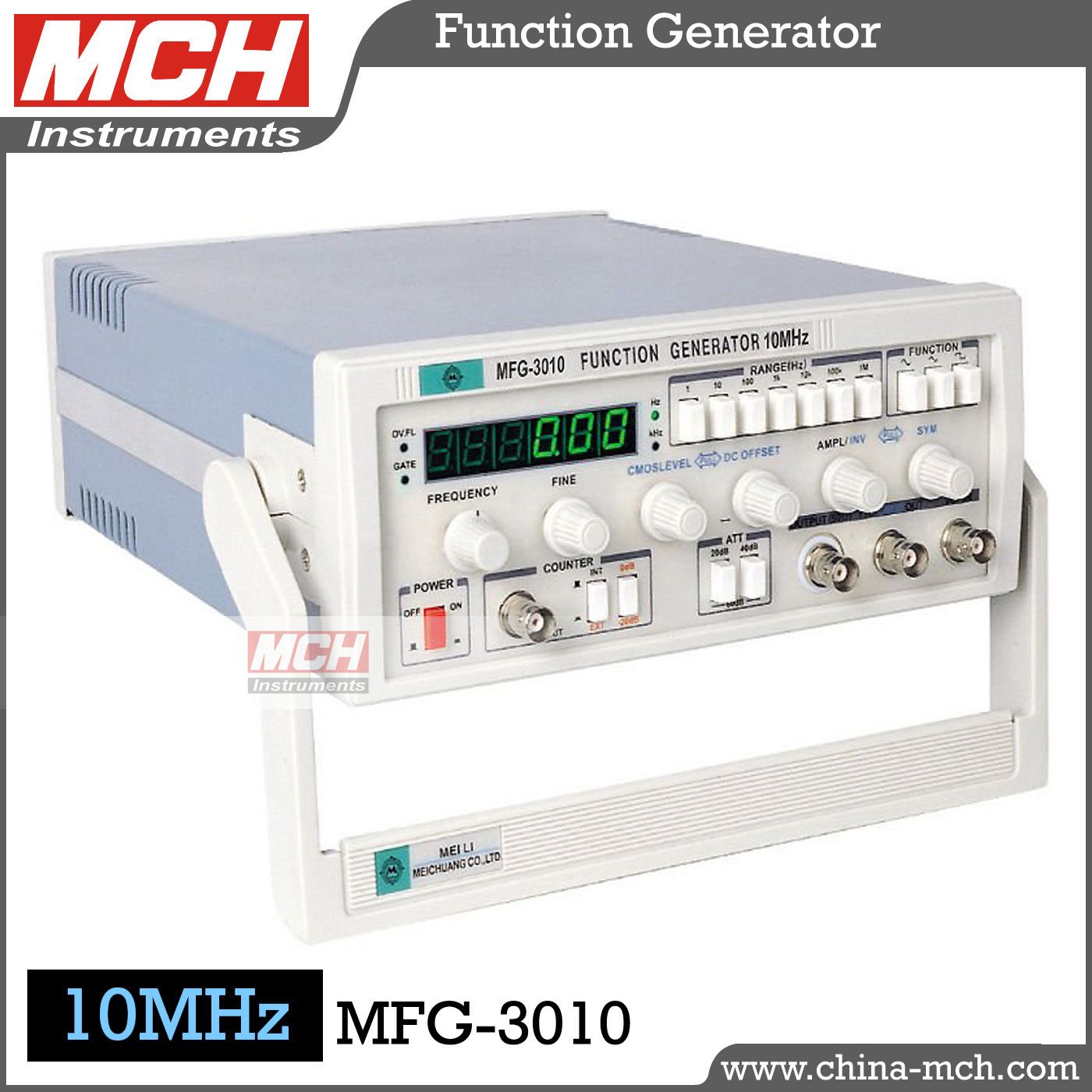

10MHz Portable Function Generator (MFG-3010)
| Price: |
US $ 105-142/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Quick Details of the function generatorsPlace of Origin: Guangdong, China (Mainland)
Brand Name: MEILIModel Number: MFG-3010Packaging & DeliveryPackaging Details: Standard export cartons, 4sets per carton dimension of inner carton: 310*100*260mm weight: 4kg
Delivery Detail: In 20days to large order, supply from stock to small orderSpecifications1.0.1Hz-10MHz frequency
2. Output waveform: Sine, triangle, square, ramp, pulse
3. Voltage control frequency capability
Features:
1.Frequency of models:0.1Hz-2MHz/5Mhz/10Mhz/13Mhz/15MHz
2.Output waveform :sine, Triangle, square, ±Ramp, ±Pulse
3.Voltage control frequency (VCF) capability
4.TTL/CMOS and output synchronous output
5.Less than 1% distortion at 10Hz- 100Khz
6.Less than 0.5dB frequency response at 0.1Hz-100Khz,1Hz-30MHz frequency counter
7.1Hz~30MHz frequency counter
8.AM/FM function optional (model with suffix "A" include this function)
9.FM/Sweep function optional(model with suffix "C" include this function)
Function generator, 0.1Hz-10MHz, model MFG-3010
Feature:
| Feature: MFG-3010 FUNCTION GENERAOTR |
| Model | MFG-3010 |
| Frequency range | 0.1Hz~10MHz |
| Output waveforms | Sine ,triangle, square, positive and negative pulse, positive and negative ramp |
| Output impedance | 50Ω±10% |
| Output Amplitude | Not less than 20Vp-p(open circuit) |
| DC voltage | 0~±10V continuously adjustable |
| Symmetry range | 90:10_10:90 |
| Rising edge of square | Less than 50ns |
| Sine characteristic |
| Distortion | Less than 1% at 10Hz-100KHz |
| Frequency response | 0.1Hz~100KHz:less than±0.5ns
100KHz~2MHz:less than±1dB |
| TTL/CMOS output |
| Level | TTL low level less than 0.4V in pulse wave, high level less than 3.5V
CMOS low less than 0.5V in pulse wave, high level 5V~14V continuously variable |
| Rising time |
| VCF input | Less than 100ns |
| Input voltage | -5V~0V±10% |
| Max. volt-controlled | 1000:1 |
| Input signal | DC-1KHz |
| Frequency counter |
| Measuring range | 1Hz~30MHz |
| Input impedance | Not less than 1MΩ/20pF |
| Sensitivity | 100mVrms |
| Max. input | 150V(AC+DC) |
| Input attenuation | 20Db |
| Accuracy | Less than 0.003%±1digit |
| Line power | 220V/110V±10%;50Hz/60Hz |
| Dimension | 310(W) ×100(H) ×260(D)mm |
| Weight | 4Kg |
| Prod Model: |
MFG-3010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

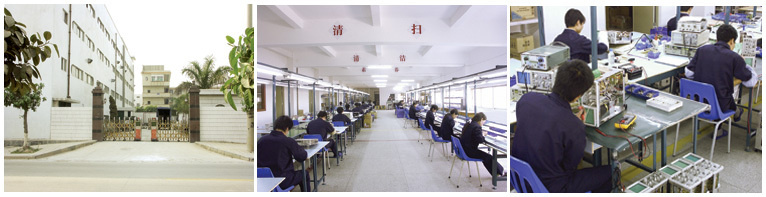

The company was found in 1995. After ten years of development, it has become strong not only in size, but also in production and R&D capability. Quality first, service utmost and economic pricing is our consistent commitment. We look forward to being your long-term partner.
We guarantee products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
1. MCH specializes in manufacturing up to hundred models of measuring instruments whole world since year 1996, such as analogue/digital Oscilloscope, arbitrary Function/Signal Generator, Spectrum Analyzer, Frequency Counter, Millivoltmeter, DC power supply, and etc.
2. All instruments will be attached necessary accessories and one year factory warranty.
3. We can produce large customized order according to customer requirement.
4. Since we are direct producer and seller, you can get fastest customer service.
5. We Promise you a profitable business and timely delivery.
