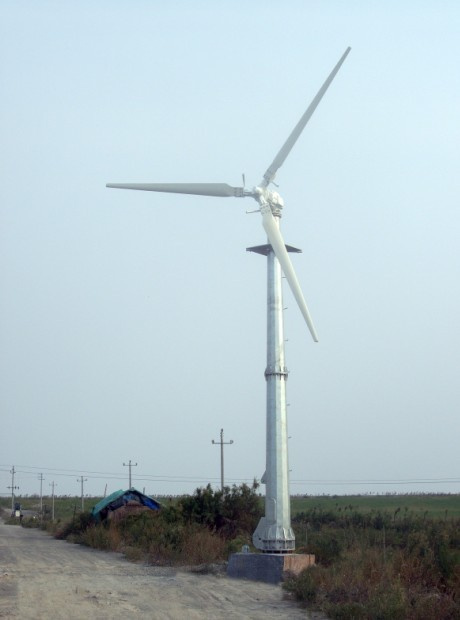

Pitch controlled wind turbine is a technical revolution in small and medium wind turbine industry. Through centifugal pitch controlled mechanism, it adjusts the blade angle according to the wind speed, to guarantee the wind rotor use efficiency at optimumcondition. Meanwhile, the wind rotor never overspeed. Thus the wind rotor use efficiency is high and more electricity generated.2kw, 5kw, 10kw 20kw, 30kw
pitch controlled wind turbine also available
| Model | 10kW |
| Wind rotor diameter (m) | 7.6m |
| Blade material and quantity | Fiber glass reinforced * 3 |
| Rated power / max power (w) | 10000/12000 |
| Rated wind speed (m/s) | 11 |
| Rated rotate speed (rpm) | 220 |
| Working wind speed (m/s) | 3-30 |
| Startup wind speed (m/s) | 2.5 |
| Survived wind speed (m/s) | 60 |
| Working voltage (v) | DC240V/DC500V |
| Speed regulation method | pitch-controlled |
| Stop method | Manual brake/Automatic electrical brake |
| Generator style | Three phase, permanent magnet |
| Wind turbine weight (kg) | 450 |
| AAA Tower height / weight (m/kg) | 12/120 |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
