10kw Silent Generator for Home / Commercial Use
| Price: |
US $ 5380-5700/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |

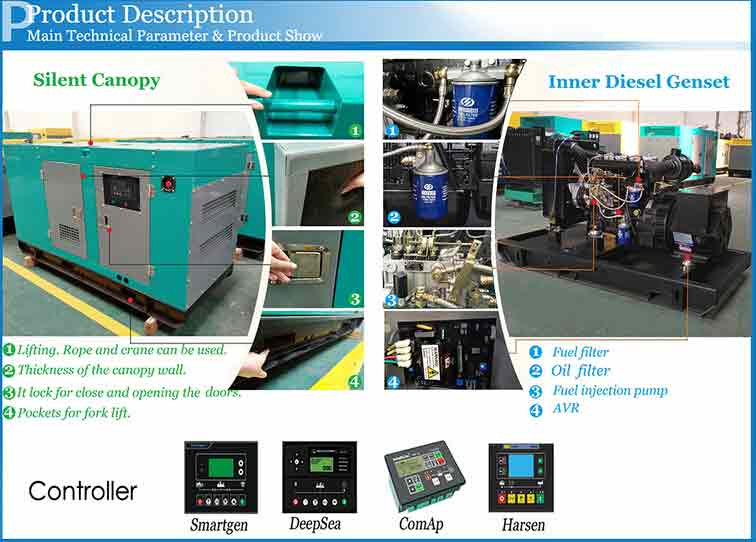

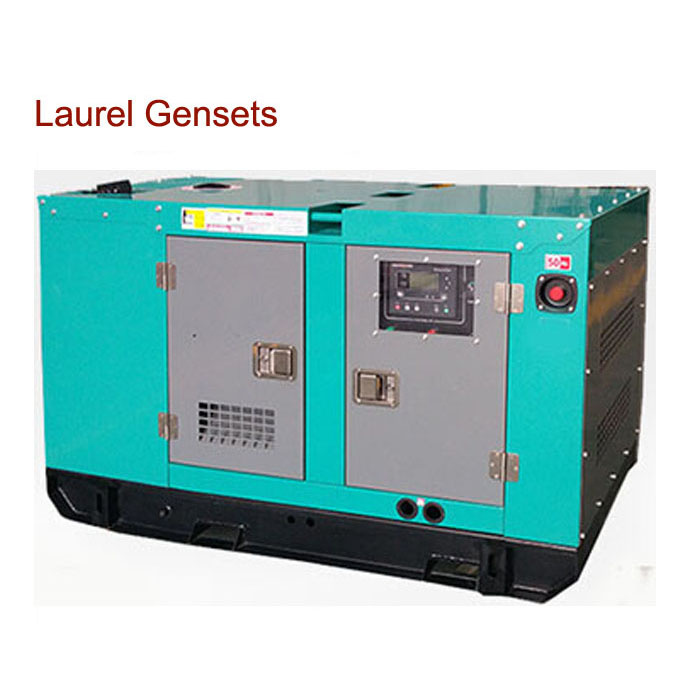

10kW Silent Generator for Home / Commercial Use
Descriptions:
1) Brand-new engine, start motor.
2) Brushless alternator, single bearing, flange connection, IP22, H class insulation , with AVR
3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator, Genset with battery charger of main supply.
5) Circuit Breaker, Exhaust Silencer
6) Copper Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable
8) Skid-mounted bottom 8 hours fuel tank.
9) External recessed emergency stop button for extra safety

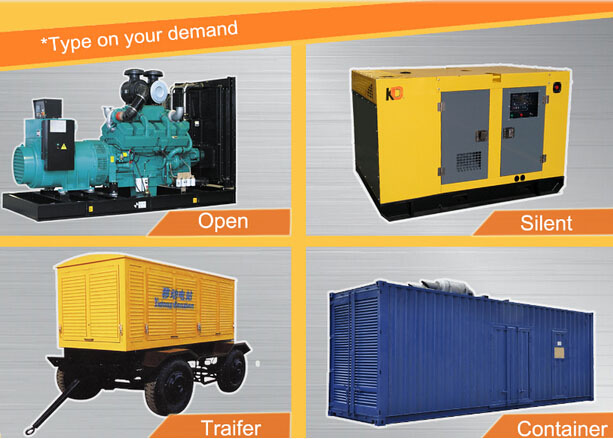

10) Optional: Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system.
Specifications: | | Genset Model | LFYD10 |
| Genset | Power Capacity (kW/kVA) | 10/12.5 |
|
| Rated Voltage (V) | 400/230/110 |
| Rated Current (A) | 18 |
| Rated Frequency (Hz) | 50/60 |
| Rated Speed (rpm) | 1500/1800 |
| Power Factor / Phase | Cos 0.8 Lagging, 3 phase |
| Cooling System | Closed cycle water-cooled with fan,water tank |
| Overall Dimension (L×W×H) (mm) | 1800 x 850 x 1080 |
| Gross Weight (kg) | 650 |
| | Engine Brand | YANGDONG |
Diesel
Engine | Engine Model | YD480D |
| Prime Power (kVA) | 17 kVA |
| Engine Structure | 3 Cylinder,Vertical,Inline,4 stroke |
|
| Bore×Stroke (mm) | 80x90 |
| Displacement (L) | 1.809 |
| Number Of Cylinders | 4 |
| Lube Capacity (L) | 4 |
| Fuel System | PT type fuel injection pump |
| Fuel Consumption (g/kw.h) | ≤240 |
| Lube Consumption (g/kw.h) | 0.5% |
| Rotating Speed (rpm) | 1500/1800 |
| Speed Governing | machinery speed governor |
| Starting Method | By 12V batteries |
| | Alternator Brand | Stamford |
| Alternator | Alternator Model | GR160C |
| Insulation Class | Class H |
| Steady Voltage Regulation | ≤ +/- 0.5% |
| Instant Voltage Ragulation | -15%~+20% |
| Voltage Fluctuation Rate | ≤ +/- 0.5% |
| Steady Frequency Regulation | ≤ +/- 0.5% |
| Instant Frequency Ragulation | -7%~+10% |
| Phase/Connection Type | 3 phase 4 wire/Y type |
| Controller | Controller Brand | Smartgen 6110 |
Packaging Details:
PVC film wrap (free of charge) or wooden case with steel plate( charge will be decided according to the outer silent diesel generator canopy size.)
Delivery Details:
About 7-15days after receiving deposit or L/C.
For technical specification or questions, 24 hours service hot line is available for customers.
Strict test process before ex-factory:
Every product will be tested twice before ex-factory, and our products are 100% ex factory pass rate.
( If the defects liability period, we will not assume the warranty responsibility. )
Advantages
1) The genset canopy can be designed by customers demand free of charge.
2) We can offer number of doors in customer requirement: 2~6 doors.
3) Noise level can be designed by customer demand, standard noise is 70-73DB at 7m. Super silent is 60-65DBat 7m.
4) The material thickness (in customer requirement) :
The steel plates for the canopy (1.5-2) mm
The base & the diesel fuel tank thickness is (3-4) mm
The thickness of the thermal isolation cotton is (5) mm
5) Canopy color can be painted by customer demand for free, the paint done in a similar technique like car painting.
6) All connection components and door locks are stainless steel.
7) We add oil filling inlet with lock.
8) The oil box is separated on the base frame. To make sure there is no oil leakage.
9) The base frame on the top of the silent canopy with forklift mouth is easy to load and discharge.
10) We can paint customer's logo when the order is more then 5 sets.
Our main products:We are engaged in the production and sale of diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc. Guarantee ServiceWe have 34 years of export experience. We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty Holdings products guarantee under this warranty statement. Warranty PeriodWe will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
| Prod Model: |
LFYD10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Laurel |
| Frequency: |
50/60Hz |
| Rated Power: |
10kw/12kVA |
| Certificates: |
ISO |
| Rated Current: |
18A |
| Warranty: |
24 Months or 1200 Operating Hours |
| Rated Voltage: |
230/400V |
| Engine Brand: |
Yangdong Engine |
| Alternator Brand: |
Stamford |
| Control Panel: |
Smartgen |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
| Conditions Of Use: |
Home or Commercial Use |
| Excitation Mode: |
Brushless Self-Exciter |
Guangzhou Laurel & Honesty Holdings, founded in 1981, is professional company focusing on generators and Agricultural machines.
It has been 34 years since our factory was founded. Our main products are diesel generator sets, generators, marine engines, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE, RoHS, GS, TUV etc.
QUALITY GUARANTY POLICY
1. Guaranteed products
All kinds of Generator sets, generators, engines, pumps, control panels and agricultural machines sold by our company, Guangzhou Laurel & Honesty Holdings.
2. Base warranty period
1)The warranty period of generator sets is 2 years or 1200 running hours (the earlier one shall prevail) from the date when the generator set have been delivered from the factory.
2)The warranty period of generators, engines, pumps, control panels and agricultural machines is 1 year or 1000 hours from the date when the goods have been delivered from the factory whichever is coming first, the warranty period will be ended.
3)Any other special stipulation according to the order.
3. Guaranty range
The user shall strictly follow the operation handbook and service statement (included all the products mentioned above) to maintain and keep the equipments, the goods has any malfunctions caused due to the manufacture quality problems in the guarantee period.
4. Limit of guaranty
1)The goods is damaged during transport, Carrier shall take charge of the amends.
2)The goods is damaged due to unsuitable setting or doesn't follow the installation manual which offered by our company.
3)The goods is damaged due to the user doesn't follow the service statement to replace the filter and lube oil in the stated period.
4)The goods is damaged due to the user doesn't use the appointed oil filter, fuel filter, air filter which mentioned in the manual book.
5)The goods is damaged due to the user make bold to replace or use the spare parts or add other equipment on it without our company approbation.
6)The goods is damaged due to disassembly parts from the equipments without our company approbation.
7)The goods is damaged due to unsuitability place, start, warm-up, stop and so on.
8)The goods is damaged due to using disqualification fuel or other substance mixed in the fuel, such as water, impurity, contamination and so on.
9)Our company shall provide free maintenance service for malfunctions caused due to the manufacture quality, but not take charge of any overhead expensed, losing and any fault analysis fee.
. AFTER-SALES SERVICE POLICY
Guangzhou Laurel & Honesty Holdings will meet the needs of consumers as possible. They can expect to enjoy our specialized service from product manufacturing, delivery and installation to the technical support and maintenance during operation process. After receive the feedback of quality problem, we answer the consumers and supply problem solve program in 24 hours. Do our best to supply satisfied service.
You can get the following services:
1. Provide complete qualified products:
Once business cooperation is established, customers will immediately be presented with detailed technical information according to products.
(1)Product information
(2)Engine information
(3)Alternator information
(4)Automatic Start-Stop Systems information
(5)Insulation Protection information
2. Provide complete technical support, including installation and commissioning services:
After the customer receive the goods, we can provide installation and commissioning advisory guidance, and also can assign engineering technologist with installation experience to the scene and guide the on-site installation if necessary.
3. Professional technology personnel training:
If the customer requirements, we will arrange technical personnel training, guidance.
4. Maintenance Service.
5. Supply technology assistance for your whole life.
