High quality and competitive price!!

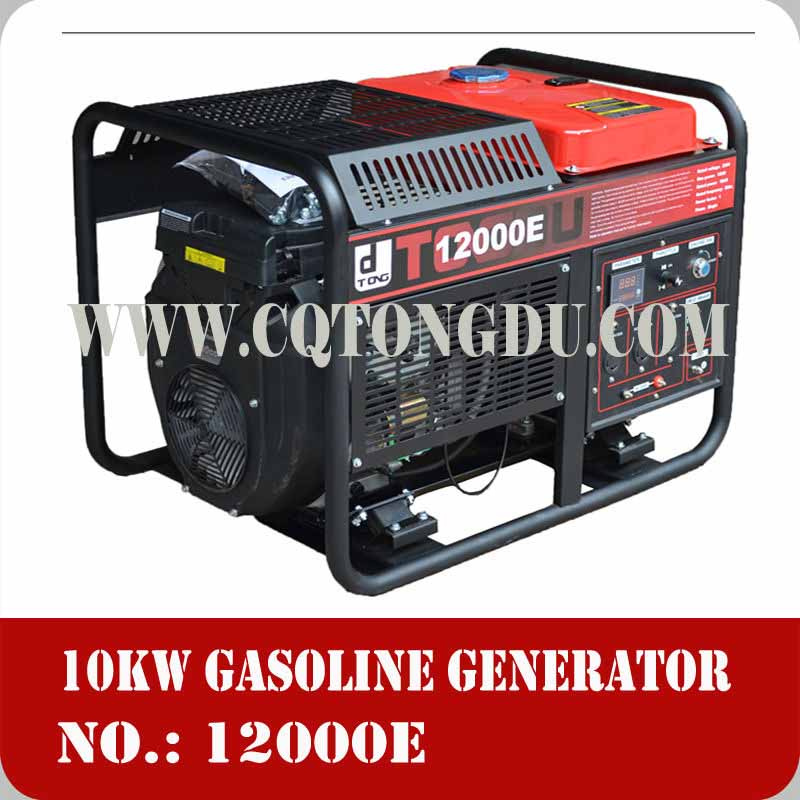

10kw Portable Gasoline Generator with Honda Gx690 Style Engine for sale!!
Features
1. 100% copper wire.
2. AVR, Emergency low oil warning.
3. Air-cooled 4-stroke , low oil and fuel consumption.
4. Painted & frosted surface, special designed arc-shaped bolt.
Specification
| Model | X12000E |
| Engine model | TD2V78 |
| Engine type | Air-cooled,4-stroke,OHV,90° V-twin |
| Bore×stroke mm | 78×72 |
| Displacement ml/cc | 678 |
| Compression ration | 8.5:1 |
| Max power kw/rpm | 14/3600 |
| Rated power kw/rpm | 13.5/3600 |
| Max torque N.m/rpm | 43/3000 |
| Ignition system | Transistorized magneto |
| Starting system | Electric |
| Air cleaner | Paper element |
| Oil capacity L | 1.8 |
| Lowest fuel consumption g/(kw.h) | ≤370 |
| Max power kw | 12 |
| Rated power kw | 10 |
| Rated voltage V 12(DC) | 230/400(AC) |
| Rated circuit A (8.3DC) | 43.5(AC) |
| Voltage regulation | AVR |
| Rated frequency Hz | 50/60 |
| Phase | Single/Three |
| Power factor COSφ | 1/0.8 |
| Material of winding | Copper |
| Insulation level Grade | F |
| Sound pressure level(rated power at 7 meter) dB | 76 |
| Fuel tank capacity L | 26 |
| Continuous work time(at rated power and full tank) hrs | 5.5 |
| Dimension L×W×H mm | 920×690×790 |
| N.W/G.W kg | 155/170 |
| Fuel | Gasoline |
| 20FT,40FT set | 40,84 |
FAQ
Q: Are you a factory or trading company?
A: We are a factory.
Q: Is it all right to make customer brand name?
A: Yes,You can OEM brand name.
Q: What is you deliver time ?
A: Within10~30days.
Q: Where is your factory located ?
A: Our factory is in Chongqing,China.
Q: What are your payment term?
A: T/T,Western Union or L/C.
Any questions,please contact me!!
Website: www.cqtongdu.com
Specialized in producing gasoline engine power, gasoline engine pumps, gasoline generators and various agricultural and forestry machineries, our company is a professional manufacturer with own sales network in both domestic and worldwide markets. Our company produces 400, 000 sets of gasoline power engines, 300, 000 sets of gasoline engine pumps, 200, 000 sets of gasoline generators, and 200, 000 sets of agricultural and forestry machineries annually. We are one of the professional thermo-dynamical manufacturing bases with various products in China.
Ever since 2008, Tongdu general power has realized a 70% increasing in sales. Deeply impressed in mind, our company has always upheld the principle of "quality first, service first, customer first", to develop into a research and development focused, prospective, and professional thermo-dynamical manufacturing enterprise.
