Home Generator Products 10kw Horizontal Wind Turbine Generator for Grid Power

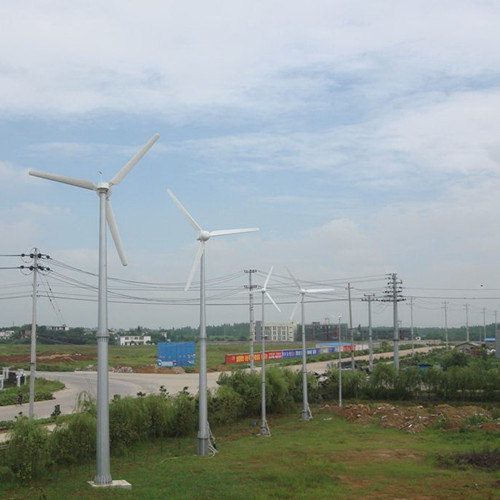

10kw Horizontal Wind Turbine Generator for Grid Power

10kw Horizontal Wind Turbine Generator for Grid Power
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Application of Wind Turbine Generator 10kW Power:
1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;

Company Strong Strength:
1) High Technology--Won gold award of 37th Eureka World Invention Exposition in Brussels seven patents;
2) High Quality--CE, BV, UL, ISO Certificate;
3) Hight Service--Long time warranty with Unique Service department.

Model No.H8.0-10KW
Configuration3 Blades, Horizontal axis, Upwind
Rotor Diameter8.0 m / 26.2 ft
Swept Area50.27 m2 / 541.1 ft2
 Direction of RotationClockwise looking upwind
Blade MaterialFiberglass reinforced composite
Rated Power10 kW @ 10m/s
Battery Bank Voltage240 Vdc
System Output Voltage110/220V single phase or 380V three phase
Cut-in Wind Speed3 m/s
Rated rotating rate200 r/min
Working Wind Speed3-25 m/s
Survival Wind Speed50 m/s
AlternatorPermanent magnet alternator, SCF technology
Alternator Weight287 kg / 632.7 lbs
Energy monitoring & User controlSiemens PLC controller with touch screen
GearboxNone, Direct drive with front generator design
Over Speed RegulationAuto Yawing & Hydraulic Braking (optional)
Shutting Down MethodManual & Automatic electromagnetism Braking
 Warranty 2 years

Prod Model: H8.0-10000W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Generator Type: Permanent Magnet Generator
Generator Weight: 287kg
System Output Voltage: 110/220VAC Single Phase
Certificate: CE, BV, ISO
Start-up Wind Speed: 3m/S
Working Wind Speed: 3-25m/S
Survival Wind Speed: 50m/S
Over Wind Speed Control: Electromagnetism Brake, Hydraulic Brake, Yawing
Shut Down Method: Auto or Manual
Tower Selection: Freestanding Tower or Hydraulic Tower
Number Of Blade: Three Blade
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Phase: Three Phase
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.

We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.

There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.

All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.

Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.

Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
