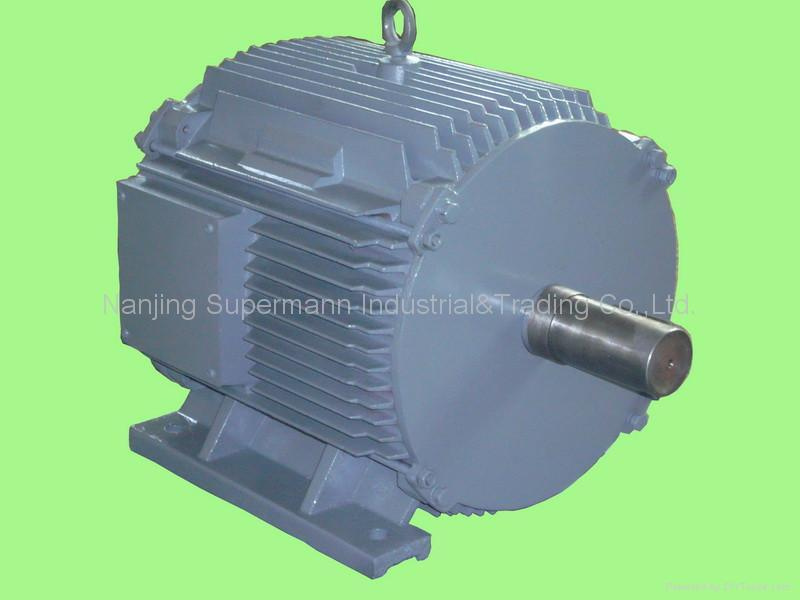

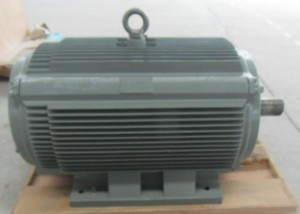

10kw Horizontal Permanent Magnet Generator/Alternator
| Price: |
US $ 1600-6200/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
(1)Low speed permanent magnet generators, leaving out reduction box, generating high voltage at low speed.
(2)High efficient PM generators, optimal design, compact structure, no carbon brush, no spark, do not need excitation. Protection Class: IP44. Prevent water, mud or dust getting into the generator, long life.
(3)No excitation control box, sample structure, high reliability.
(4)Small cubage, light weight, high energy density, suitable for special situations.
(5)Running effectively in the whole speed range, high generating efficiency.
(6)Using embedded type rare-earth magnet steel, suitable for bumping, reduplicate startup, and reversible operation.
(7)Adopting imported oil-contained bearings, maintenance free, high reliability, long life.
(8)The voltage, speed ,power of the generator can be customized. The shape can be changed, using spine shaft, biaxial stretch, front edge output ways.| 10kw | 30rpm | 400V 3phase | 12hz | 48 | 315 | 1360 |
| 10kw | 50rpm | 400 | 26.7hz | 32 | 280 | 750 |
| 10kw | 100rpm | 220~440V | 13.3hz | 16 | 250 | 410 |
| 10kw | 125rpm |
|
| 22 | 225 | 330 |
| 10kw | 250rpm | 220V | 50hz | 24 | 200 | 160 |
| 10kw | 1000rpm | 230V/380V | 50hz | 6 | Y160 | 136KG |
| 1500rpm | 230V/380V | 50hz | 4 | Y160 | 126KG |
| Prod Model: |
YGDL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rotating Shaft: |
Horizontal |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Resistance |
| Phase: |
3 Phase |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
