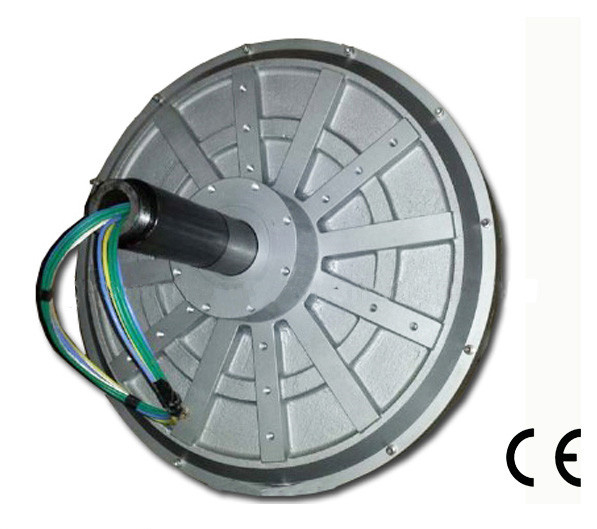

10kw Coreless Permanent Magnet Generator

10kw Coreless Permanent Magnet Generator
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
 They are always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low RPM.

Low rated rotate speed, Low start wind speed, Low weight and small size, High efficiency

(1) Torque Patent Technology: use newest "Precise Coil" technology. No hysteresis and gear notches effect make the start torque very low <1N.M

(2) Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.

(3) Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.

(4) Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.

(5) Gearless, direct drive, low RPM generator.

(6) High standard, quality components for use in harsh and extreme environments for wind turbines

(7) High efficiency and Low mechanical resistance energy loss

(8) Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.


Model
0.5KW-2001KW-1801KW-2002KW-1202KW-180
Rated   Power0.5KW1KW1KW2KW2KW
Rated   Rotate Speed                                                   200 RPM180RPM200RPM120RPM180RPM
Rated   Voltage                                               56VDC84vdc56vdc115dcv115dcv
Rated   Current912A17.9A1017.4
Efficiency>85%
Wending   MethodY
Insulating   Resistance100Mohm Min(500V DC)
Leakage   Level<5 ma
Start   Torque<0.1N/M<0.3 N/M<0.3 N/M<0.5 N/M<0.3 N/M
Phase   Type3 Phase
StructureOut rotor
StatorCoreless wire coil
RotorRare Earth Permanent Magnet
Generator   Shell Diameter320380380550450
Generator   Shell Length232241241330258
Weight2032327551
Shaft   drameter4550507859
Generator   shell materialAluminum alloy
Shaft   materialCarbon steel
BearingDeep groove ball bearing

Prod Model: GDG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Axis Type: Vertical
Number Of Blade: Multiple-Blade
Rotating Shaft: Vertical
Stress Way Of Blade: Resistance
Phase: 3 Phase
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
