Intelligent control panel with more than 20 various protection systerms, such as Overclocking protection, low-voltage protection, high-voltage protection, overload protection, low oil pressure automatic shutdown protection, the protection of high speed diesel low-automatic protection.

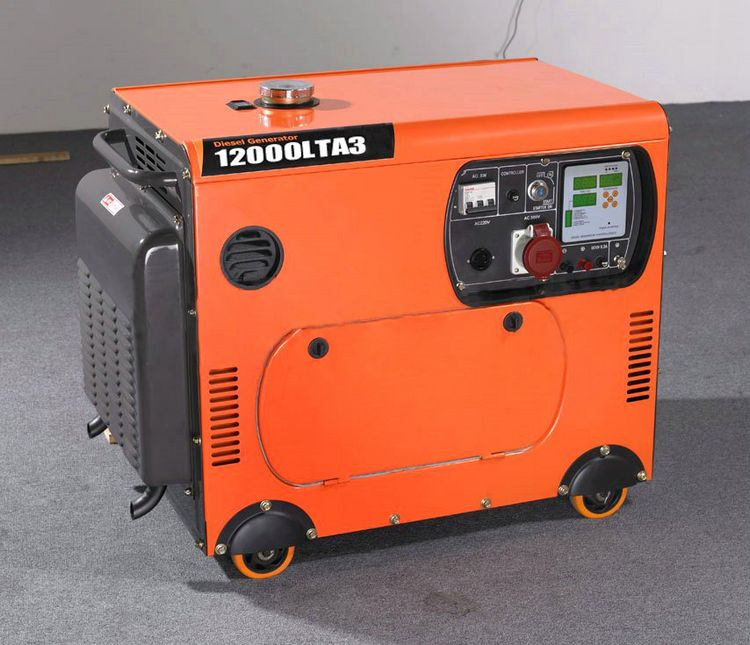

| Model | WS12000LTA | WS12000LTA3 |
| Rated frequency Hz | 50 60 | 50 60 |
| Rated output power( KW) | 9 10 | 9 10 |
| Max. power( KW) | 10 11 | 10 11 |
| Rated voltage( V) | 115/230 120/240 | 400/230 416/240 |
| Phase No. | Single | Three |
| Power factor (cosφ) | 1 | 0.8(lag) |
| Insulation | F | F |
| Pole No. | 2 | 2 |
| Exciting way | Brush, exciting-self voltage-constant (with AVR) | Brush, exciting-self voltage-constant (with AVR) |
| Panel type | Intelligent | Intelligent |
| Output socket | Single-phase socket\wiring terminal | Three-phase socket\single-phase socket |
| DC12V output | 12V, 8.3A | 12V, 8.3A |
| Dimensions:LxWxH (mm) | 985x660x740 | 985x660x740 |
| Net weight (Kg) | 245 | 245 |
| Noise (7m)dB(A) | 70 | 70 |
| Structure type | full-closed.silent | full-closed,silent |
| Engine model | LP2V86 | LP2V86 |
| Type | V-twin, two-cylinder, four-stroke, DI | V-twin, two-cylinder, four-stroke, DI |
| Cylinder No. bore xstroke (mm) | 2-86x72 | 2-86x72 |
| Total displacement ml | 836 | 836 |
| Rated power kW/ rated speed r/min | 12/3000 13/3600 | 12/3000 13/3600 |
| Compressed ratio | 20:01 | 20:01 |
| Cooling way | Air-cooled | Air-cooled |
| Lubricating way | Pressure & splashing | Pressure & splashing |
| Starting way | Electric | Electric |
| Fuel used | 0#(summer),-10#(winter),-35#(cold winter)light diesel | 0#(summer ),-10#(winter),-35#(cold winter)light diesel |
| Oil used | SAE10W30(CD grade above) | SAE10W30(CD grade above) |
| Lubricating oil capacity (L) | 1.7 | 1.7 |
| Starting motor capacity (V-kW) | 12V 1.4kW | 12V 1.4kW |
| Dynamo capacity (V-A) | 12V 8.3A | 12V 8.3A |
| Battery capacity (V-Ah) | 12V 45AH | 12V 45AH |
| Fuel consumption (g/kW.h) | ≤270 ≤290 | ≤270 ≤290 |
| Fuel tank capacity of the generator( L) | 25 | 25 |
| Continuous operation time of the generator(H) | 8.5 8 | 8.5 8 |
Longfar I/E Co., Ltd., is located in Nantong city of Jiangsu province. The modern enterprise has been specializing in the research and development, manufacturing and exporter and sales of 3-230HP light diesel engines and 1-30KW light diesel generator sets and other relative products.
Now series 20HP-30HP V-twin air-cooled diesel engines sold by our company filling up the blank in the international market. As patent products, they are well sold in the domestic and foreign markets and get highly appreciated by our clients.
New series air-cooled diesel engines with V-twin air-cooled diesel engines with two cylinders are widely applicable to different markets, including diesel lawn mowers, diesel generator sets, diesel water pump sets, transportation vehicle, boat propeller, tiller, pump system and other universal machinery.
With SAE connection dimensions, BOSCH injector, SKF main bearing, pressurized lubrication and vertical & horizontal shafts outputs, series LP2V86 diesel engines are the ideal power for stationery and mobile machinery, characterized by light weight, low noise, low fuel consumption, low emission, etc. Our products realize the fact that the fuel for the gasoline machinery and the lawn mower is replaced by the diesel, which reflects that we have ranked among the leading places in the light and high-speed diesel engine field.
Insisting on the principle of Independent innovation, Endless seeking, our company strives to manufacture the first-class products in the world with the leading technology.
We assure you that our products are of high quality with the best price and super after- service.
