Home Generator Products 10kw 60Hz 3 Phase Home Use Silent Type Diesel Generator

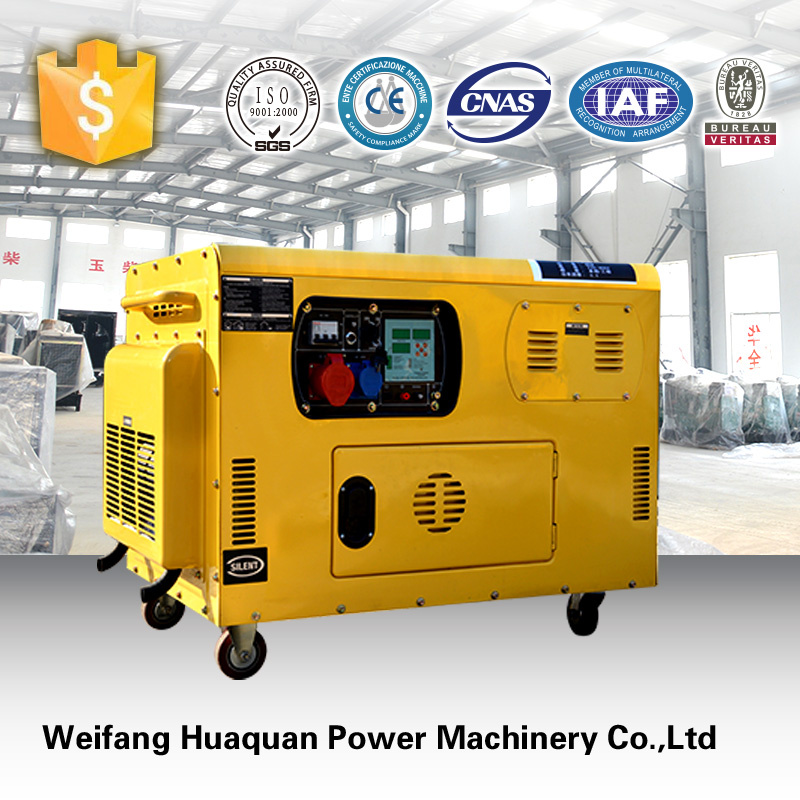

10kw 60Hz 3 Phase Home Use Silent Type Diesel Generator

10kw 60Hz 3 Phase Home Use Silent Type Diesel Generator
Price: Negotiable/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

About Our Company

1. Offer the main Power range from 10kva~1500kva.

2. Adopt the famous engines like Weichai engines, Deutz engines, Steyr engines, Cummins engines, Perkins engines, Isuzu engines, Ricardo engines, Changchai engines, Yuchai engines, Jichai engines etc. These are widely used all over the word.

3. We only adopt standard high-level quality alternator, to produce the high-level diesel generators.

4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.

5. All spare parts serviced directly by our company.

6. We are confirmed as the OEM factory by many those engine factories and alternator factories.

1.Generator set parameter

ModelHQ10GF

Rated power10KW/12.5KVA

Maxp Power11KW/13.8KVA

Basics electric parameter50Hz/60HZ ,3 p 4 w,400V/230V

Rated speed1500rpm/1800rpm

Power factorLag0.8

Insulation ClassH

Protection ClassIP23

Gross Weight220KG

Dimension(L*W*H)870*630*7000mm(Open)Silent:1090*670*910mm

2.Engine parameter
Engine ModelR2V820/ChinaCylinder Qty2
Engine TypeV type.Four-stroke,Aire cooled,InjectionBore*Stroke  86X70mm
Rated power11kw/13.7kvaDisplacement812ml
Rated Speed1500rpm/1800Full load consumption2L/h
Speed regulationMechanicalIntake methondNatural
3.Alternator parameter
BrandShanghaiRated Frequency50Hz/60HZ
ModelSTC-10Rated output400V/230V
Rated Power8KW/10KVAExciting ModeBrush
Rated current18AVoltage RegulationAVR
















Generator Set Data



Voltage Regulation:≥±5%
Voltage Regulation, Stead State:≤±1%
Sudden Voltage Warp (100% Sudden Reduce):≤+25%
Sudden Voltage Warp (sudden Increase):≤-20%
Voltage Stable Time (100% sudden Reduce):≤6s
Voltage Stable Time (Sudden Increase):≤6s
Frequency Reduce:≤5% adjustable:≤1.5%
Frequency Regulation, Stead State:≤0.8%
Frequency waving:≤+12%
Sudden Frequency Warp (100% Sudden Reduce):≤0.8 %
Sudden Frequency Warp (Sudden Increase):≤-10%
Frequency Recovery Time (100% sudden Reduce):≤5s
Frequency Recovery Time (Sudden Increase):≤5s


Sales Promises

Huaquan provides a full line of brand new and high quality products.Each

and every unit is strictly factory tested Warranty is according to our

standard conditions:12 months or 1000 running hour's ,subject to the

earlier one .Service and parts are available from our factory


Diesel Generator, home use generator, power generator, standby generator, portable diesel generator, 5kw diesel generator.

Feature:

    Reliable quality for long life
    Circuit breaker protects overload operation
    Low oil shut down protection system
    AVR alternator provides stable voltage and current
    One year warranty with free spare parts

Packing, Delievery,Payment, Warranty:
Packing: Canton Packing(Colour Packing can be choosed)
Delievery: 25-30days after receipt payment
Payment: T/T or L/C at sight
Warranty: 1 year


For Choice:
1) Power Output/Power Capacity: 3Kw 5kw
2) ATS
3  Three Phase
4) Remote start
5) Digita panel
6) Hour meter


FAQ:

1. Q:What is your MOQ  of this item?
 A: Sample order is acceptable.

2. Q: What is the lead time?
A: As usually, 25-35 days after receiving TT deposit or L/C. But we will finish order with shorter time for your urgent need.

3. Q: Where is your loading sea port?
A: Fuzhou, China.

4. Q: Is it all right to make customer's own brand name?
A: We can be your OEM manafacture with your authorization of brand..

5. Q: What is your company available production capactiy?
A: One 40HQ container can be finished per day. The more quantities, the same delivery time.




Warranty:

(1) Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date.

(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.
Prod Model: HQ10GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 50/60Hz
Rated Power: 10kw
Rated Voltage: 220/380/400
Rated Current: 90A
Cylinder No.: 2
Cooling System: Air Cooled
Type: Basic Diesel Generator
Installation Method: Portable
Stroke: Four Stroke
Cooling Method: Air Cooled
Output Type: AC Three Phase
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw

Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.

Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.

Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
