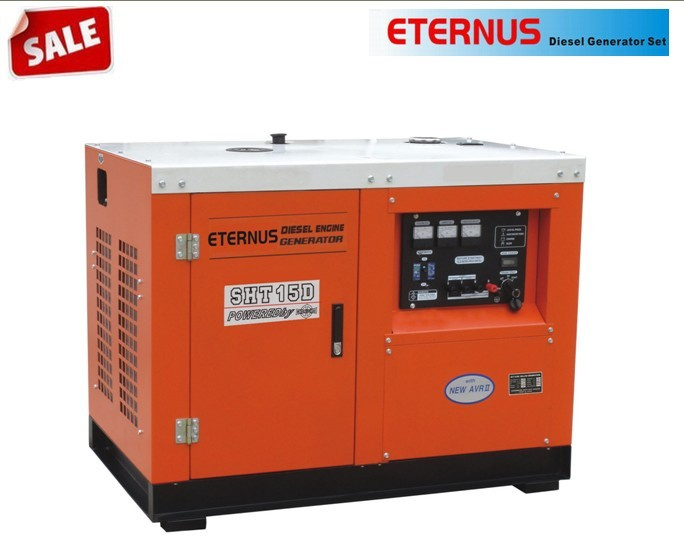

10kw 10kVA Alternator Generator Diesel Generator (SHT15D)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Piece |
| Pay Type: |
L/C,T/T |
PRODUCT DETAILSDiesel Generator (SHT15D)
1) Engine: Changchai CZ380Q
2) Engine type: Water cooled, 4-stroke, three cylinders
3) Starting system: Electric start
4) Displacment: 1357CC
5) Frequency: 50Hz
6) Rated voltage: 220V
7) Rated power: 13.5kw
8) Max. Power: 14.8kw
9) Fuel tank capaity: 30L
10) Phase: Three
11) Poles: 2
12) Drivetrain: Direct-coupled
13) Sound level dB(A)/7m: 77
14) 100% copper coil
15) AVR | Model | SHT13D | SHT15D | SHT20D | SHT23D | SHT25D | SHT30D |
| Dimensions(mm) | 1350× 750× 800 |
| N. W(kg) | 400 | 410 | 425 | 450 | 480 | 490 |
| Generator |
| Rated output | 10.8kw | 13.5kw | 15.2kw | 17.5kw | 20.3kw | 25.0kw |
| Max. output | 12.4kw | 14.8kw | 17.6kw | 19.3kw | 23.5kw | 27.5kw |
| Frequency | 50Hz |
| Phase | three |
| Factor | CosΦ =0.8 |
| Voltage Tegulation Syatem | AVR |
| Poles | 2 |
| Dirvetrain | Direct-coupled |
| Voltage | 380v/220v |
Insulation
| Stator & Rotor: F grade |
| Engine |
| Model | CZ380Q | CZ480Q |
| Speed | 3000rpm |
| Type | Water cooled, 4 stroke, three cylinders | Water cooled, 4-stroke, four cylinders |
| Displacement | 1357cc | 1809cc |
| Starting system | Electric start |
| Oil consumption(1/h) | 5.2 |
| Fuel tank capacity(L) |
|
| Sound leveal db(A)/7m | 76 | 77 | 78 | 79 | 80 | 80 |
COMPANY PROFILEJIANGMEN BAODELI MECHANICAL INDUSTRY CO.,LTD. Is a HONKONG-funded enterprise,which is located in the Pearl River Delta of Guangdong nearby HongKong,Macao and Taiwan with convenient transport service.BAODELI is specialized in research,developement,manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems.BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001:2008,CE,SASO,3C and JB/T 10304-2001ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for HONDA,VANGUARD,MITBISHI and KOHLER engines with professional comprehensive performance test systems,the products all are comply with international standards of ISO8528 generator testing. The main products are 2KW ~ 18KW gasoline generator sets with HONDA,KOHLER and VANGUARD engines.And 8 KW ~20KW diesel generator sets wits MITSUBISHI,Cummins and Changzhou diesel engines.The units are professional design,light,low noise,durable. BAODELI strictly implements Japanese technoloogies,process assembly,compact units,powerful output,electric AVR adjustment,stable voltage,simple operation,convenient maintenance and so on. The generator sets are widly used in majority enterprises such as telecon,bank,railway,oil field,construction,army,security systems etc. Our products had sold in domestic market and exported to Europe,South America,Southeast Asia,Hongkong and Taiwan etc. Science and technology as guide,strive for survival on the basis of quality as the tenet of BAODELI,which are offering the environment protection and high quality products.
| Prod Model: |
SHT15D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
10kw 10kVA Alternator Generator Diesel Generator ( |
| Generator Set: |
Yes |
| Engine: |
Honda/Kohler/YAMAHA/Vangard/Cummins/China Engine |
| Fuel: |
Gasoline/Diesel |
| Output Power: |
0-30 Kw |
| Frequency: |
50/60 Hz |
| Cooling System: |
Forced Air Cooling |
| Current: |
AC/DC |
| Certificate: |
CE, ISO 9001:2008, Saso, Tlc |
| Lead Time: |
30 Days |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
COMPANY PROFILE
JIANGMEN BAODELI MECHANICAL INDUSTRY Co., Ltd. is a HONKONG-funded enterprise, which is located in the Pearl River Delta of Guangdong nearby HongKong, Macao and Taiwan with convenient transport service.
BAODELI is specialized in research, developement, manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems. BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001: 2008, CE, SASO, 3C and JB/T 10304-2001
Our company was established in 2004, in generator manufacturing industry has 10 years of technical research, specializing in the production of gasoline and diesel generators, water pumps and various kinds of garden tools.
ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for Honda, VANGUARD, MITBISHI and KOHLER engines with professional comprehensive performance test systems, the products all are comply with international standards of ISO8528 generator testing.
The main products are 2KW ~ 18KW gasoline generator sets with Honda, KOHLER and VANGUARD engines. And 8 KW ~20KW diesel generator sets Wits MITSUBISHI, Cummins and Changzhou diesel engines. The units are professional design, light, low noise, durable.
BAODELI strictly implements Japanese technoloogies, process assembly, compact units, powerful output, electric AVR adjustment, stable voltage, simple operation, convenient maintenance and so on.
The generator sets are widly used in majority enterprises such as telecon, bank, railway, oil field, construction, army, security systems etc.
Our products had sold in domestic market and exported to Europe, South America, Southeast Asia, Hongkong and Taiwan etc.
Science and technology as guide, strive for survival on the basis of quality as the tenet of BAODELI, which are offering the environment protection and high quality products.
