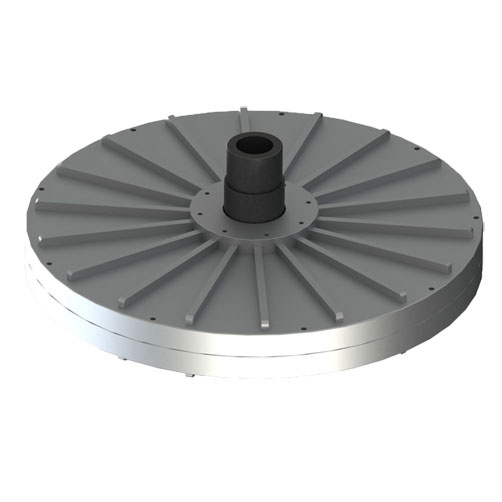

10kw-100rpm Generator (wind generator 100W-10KW)

10kw-100rpm Generator (wind generator 100W-10KW)
Price: US $ 1/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
High efficiency at low speed
No mechanical drive losses, no rotor copper losses due to the permanent magnet excitation and no stator eddy current losses in the ironless (coreless) stator
The efficiency of Maglev generator, depending on the model, is up to 98%.
Small dimension and weight
The Maglev generator is uniquely light weight and compact, construction is simple. The generators use much less metal in their construction, while also being highly durable and having a long life.
The generator's small weight and dimensions make it possible to reduce the size and price of the whole wind turbines.
The high specific capacity (output capacity per unit weight) significantly outperforms those from competing producers. This means that with similar dimensions and weight
 Small maintenance costs
Direct drive, no gearbox, oil-free system, low temperature rise
The highest energy efficiency at low speeds in the industry means that the generators can support any type of wind turbine with the widest range of wind speed.
The use of air-cooling reduces maintenance costs and also significantly strengthens the autonomy of power units
 Low starting torque
Maglev generators have no cogging torque and torque ripple, so the starting torque is very low, for small wind turbine , the starting wind speed is less 1m/s.
Superior reliability
 low noise, less vibration, no mechanical belt, gear or lubrication unit, long life
Environmentally friendly
The 100% environmentally clean technology and materials used in production during its long service life and the future recycling are absolutely harmless for the environment.

 Applications

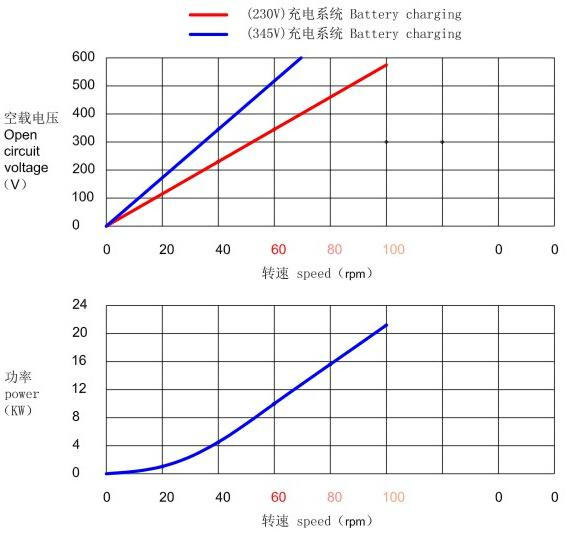

ELECTRICAL SPECITICATION
Rated Output Power10KW
Rated Voltage115V/380V
Rated Speed100rpm
Phase3-Phase,
StatorCoreless
Start Torque<0.5n/m
Maximum Power21KW (100rpm)
Rated Frequency20HZ
Efficiency 91%
Weight270kg
Housing Material  Aluminum ( Alloy )
Prod Model: WKG-10000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Speed: 100rpm
Hefei Wind Wing Energy Technology Co., Ltd. is the earliest one of the R & D wind energy generation equipment in China. Our company develops under the support of Chinese Wind Power Association, depends on Chinese Academy of Sciences Institute of Automation the long-term technical guidance and the close cooperation. We take the "the national initiative energy crisis subject" as our development goal. Now we have a strong R&D group, and researched and developed a profession leading WIND AND SOLAR SUPPLEMENT new energy generating system.

People are paying attention to our products, for the features: Green energy, environmental protection, regenerative and natural energy, etc. Our systems have widely applied in so many fields: City view, communication station, military army, science & education, weather department, fishing vessel, irrigation, oil well, seawater desalination, open country inspection, and so on.

As the first domestic enterprise developing the WIND AND SOLAR SUPPLEMENT new energy, we have passed ISO9001: 2000 quality and management system certification and EU CE certification. Our WIND AND SOLAR SUPPLEMENT new energy range systems are faithful and popular in the domestic and foreign clients, becoming the profession leading enterprise.

We always persist in the enterprise culture of "being a creditable person, live a worth while life", we insist on providing vast customers with the first-class goods, the top-notch technology heart and soul. We heartedly wish to intensively co-operate with old and new customers for greeting together with the challenge WIND AND SOLAR SUPPLEMENT new energy spring arrival!
