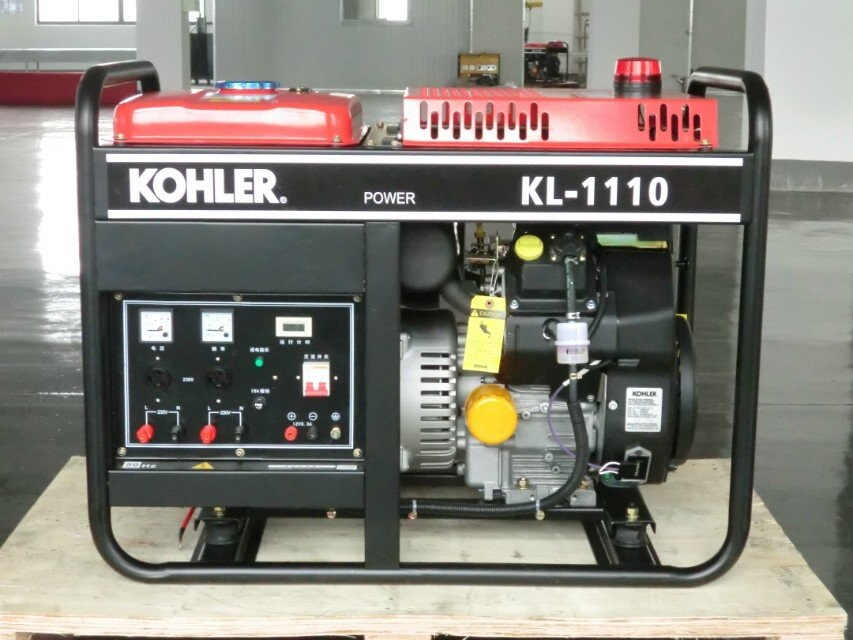

01, Assembled with original KOHLER petrol/gasoline engines;
02, New automatic voltage regulator ensures steady voltage output, with over loading protect function.
03, Low oil pressure alarm system, which can shut down the engine automatically.
04,Electric starting system allows fast starting of the set
| Model No.: | KGE10E | KGE10E3 | KGE12E | KGE12E3 |
| Phase | | Single | Triple | Single | Triple |
| Rated Power (KVA) | 8.0 | 10.0 | 10.0 | 12.5 |
| Max. Output Power(KVA) | 8.8 | 11.0 | 11.0 | 13.75 |
| AC Frequency (Hz) | 50 | 50 |
| AC Output Voltage (V) | 230 | 230/400 | 230 | 230/400 |
| Rated Current (A) | 34.8 | 14.4 | 43.5 | 18.04 |
| DC Output (V/A) | 12 / 8.3 | 12 / 8.3 |
| Power Factor | 1 | 0.8 | 1 | 0.8 |
| Engine Model | Pro CH640 | Pro CH730 |
| Type | | V-twin cylinder,Air-cooled,4-stroke OHV |
| Displacement (CC) | 674 | 725 |
| Max. Power (HP/rpm) | 15.3(20.5)/3600 | 17.5(23.5)/3600 |
| Starting System | KEY | KEY |
| Fuel Tank Capacity (Ll) | 25 | 25 |
| Packing Dimensions (mm) | 995*630*790 | 995*630*790 |
| Net Weight (KGS) | 150 | 158 |
| Packing | | Wdn Case | Wdn Case |
