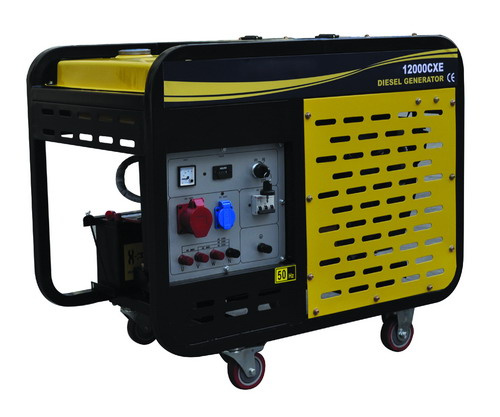

10 kVA (at 3 three phase) portable diesel generator air cooled type.
|
Model |
GP12000CXE |
|
Frequency(Hz) |
50/60 |
|
Rated power(KVA) |
9.0/10 |
|
Max. Power(KVA) |
10/11 |
|
Voltage(AC)(V) |
220/380, 230/400 |
|
Engine speed(rpm) |
3000/3600 |
|
Power factor |
CosΦ =1.0 |
|
Engine model |
GP286FE |
|
Type |
Double-cylinder, vertical, 4-stroke, direct injection, air-cooled diesel engine |
|
Continuous outpput(KVA) |
11.5/13 |
|
Bore× stroke(mm) |
86× 70 |
|
Displacement(L) |
0.812 |
|
Fuel tank capacity(L) |
18 |
|
Lube-oil capacity(L) |
1.7 |
|
Starting system |
Electric start |
|
Dry weight(kg) |
170 |
|
Dimensions(L× W× H)(mm) |
850× 620× 720 |
Started from last century, we are engaged in manufacturing and marketing of gasoline/diesel engines and power machinery. Our experience and know-how in this field enable us achieve a fast growth year on year. And to meet the increasing needs from overseas market, we have successfully expanded our product line to light-duty construction machines, garden & forestry machines powered by gasoline engines and diesel engines.
As an ISO certified exporter, we put quality principle at top of priority and meet the approvals of CE, GS, EPA standards. Our products have been exported to USA, Europe, South America, Southeast Asia etc. Today, we stand for our fame for durable and user-oriented products.
Our range of products:
Portable generator: Gasoline generator 0.65kVA~11kVA, air-cooled diesel generator 2kVA~12kVA, air-cooled silent type diesel generator 5kVA~12kVA;
Light construction machines powered by Honda or Robin engine: Plate compactor, compact roller, power trowel, concrete cutter, tamping rammer, concrete vibrator, concrete mixer, etc.
Garden & Forestry machines powered by 2 stroker and 4 stroke gasoline engines.
We have always been attaching great importance to an effective & efficient communication with our customers. We answer what they ask, supply what they want and think for what they need. Considerate cost-effective solutions to meet our customers' diversified sourcing needs is our primary concern.
Contact us now to see how well we can do for you.
