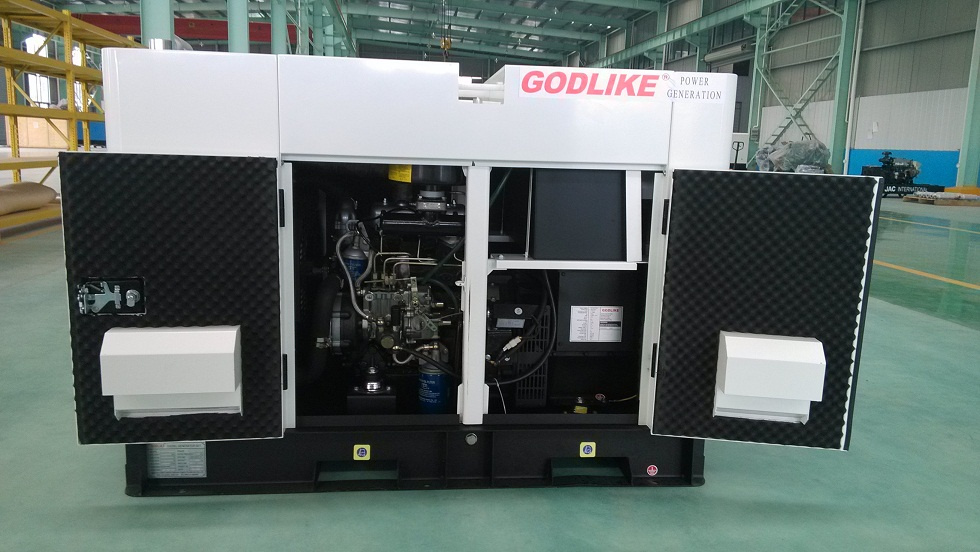

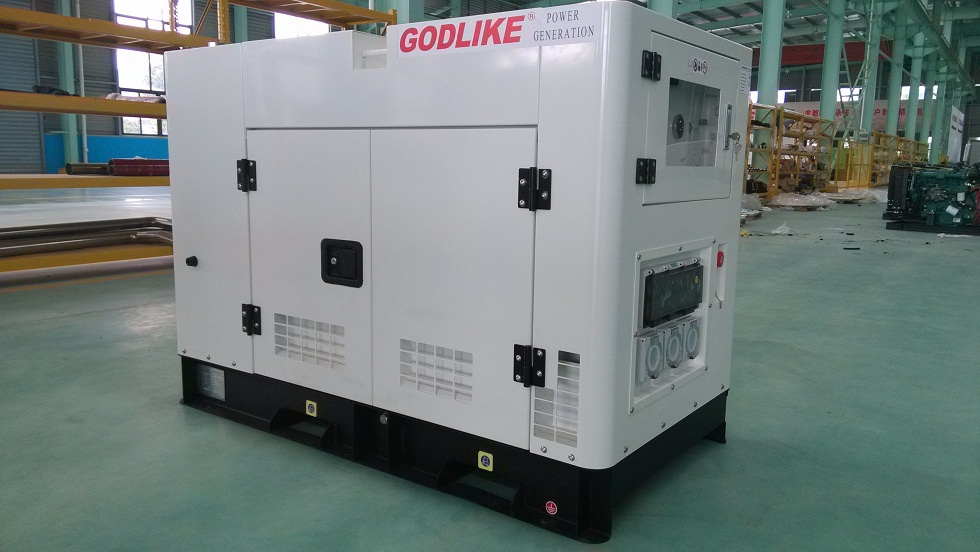

10kVA/8kw Silent Type Yangdong Engine Diesel Generator
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Specification of generator set
Generator model GDYD8*S
Prime power:10kva/8kw
Rated voltage:220v
Rated frequency:50HZ
Rated speed:1500
Engine brand:Yangdong
Engine model:YD380D
control panel smartgen 410
Mute decibels:about 65
Fuel consumption:220g/kwh
Fuel tank volume:40L
Emission levels:3.707
Speed governor electronic
Cooling system forced water cooling cycle
Alternator brand :copy stamford
Model:JDG164C
Number of phase:1
Number of bearing:1
Protection grade:ip23
Exciter type brushless ,self exciter ,AVR automatic voltage regulation ,100% copper winding wire
Instruction: class H
We take this machine to 116th canton fair ,all the data is real and accurate. we start it at the fair,attract many buyers.
Inspection and test
1. Each engine shall be tested at manufacturers workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. The engine and generator shall be tested separately in accordance with relevant standards specified above.
4. The completed and individually tested engine and generator shall be assembled onto the baseplate with all auxiliaries, instruments and controls for a complete test of the generator set.
| Prod Model: |
GDYD8*s |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1480*780*1050 |
| Engine Brand: |
Yangdong (Yd380d) |
| Prime Power: |
10kVA/8kw |
| Alternator: |
Jdg164c |
| Frequency: |
50Hz (1500rpm) |
| Voltage: |
220V |
| Phase: |
1 |
| Control Panel: |
Smartgen 410 |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
