Home Generator Products 10KVA/8.5KW/50HZ Silent Diesel Generator

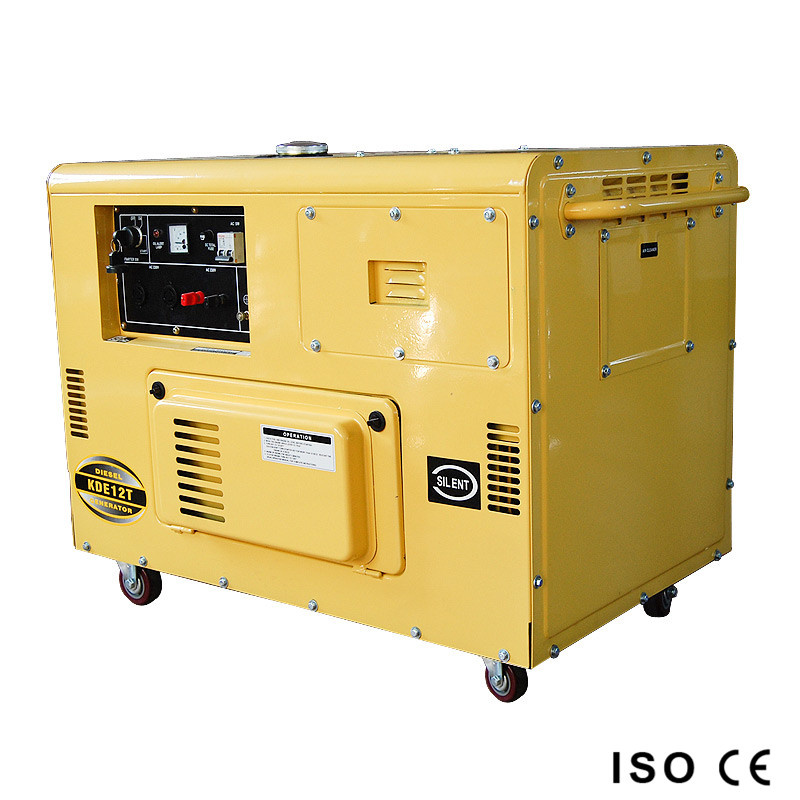

10KVA/8.5KW/50HZ Silent Diesel Generator

10KVA/8.5KW/50HZ Silent Diesel Generator
Price: US $ 1720-1730/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T
1. Factory directly supply
2. CE&ISO9001 approved
3. Various kinds&accept OEM design
4. Aviation Technology, Military Quality
5. Rapid starts
6.8..5KW SILENT DIESEL GENERATOR





Diesel generator set KDE12T
 Model  KDE12T
Frequency (Hz) 50 60
Output power (KVA) 8.5 9.5
Max. Power(KVA) 9.5 10.5
Voltage (V) 115/230 120/240
Current (A) 73.9/36.9 79.2/39.6
Engine speed (r/min) 3000 3600
Phase Single
Power factor(cosφ) 1
Excitation system Self-excited constant voltage
Noise level (7m)  DB (A): 72
Fuel tank capacity (L) 25
Structure Silent
Panel Ordinary
Output socket Two
DC12V output Terminal post
Engine Model  KA840
Bore*stroke (mm)  86 *72
Displacement (L) 0.863
Power (KW) 10.3/3000
Fuel consumption rate (g. KW/h) <340
Compression ratio 19
Lubrication system Spring
Engine starting system Electric starter
Diesel oil model  Summer: 0#, winter: -10#
Lube oil model SAE10W-30 (above CD grade)
Lube oil capacity (L) 1.65
Battery capacity(V-AH) 12V-36Ah
Net weight (KG) 245
Dimension(L*W*H) 1180×720×820
Prod Model: KDE12T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Method: Air Cooled
Stroke: Four Stroke
Installation Method: Portable
Type: Basic Diesel Generator
Output Type: AC Single Phase
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:

Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),

Air-cooled diesel generator set(2KW--8.5KW)

Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)

Air-cooled diesel generator light tower(400W-10000W)

Air-cooled gasoline generator (650W-5000W)

Water-cooled Diesel Generator(10kw-100kw),

Water pump unit(2 '', 3 '', 4 '')

Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.

Electric welding set, construction machinery, and gardenging machinery, etc.

Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.

We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.

Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
