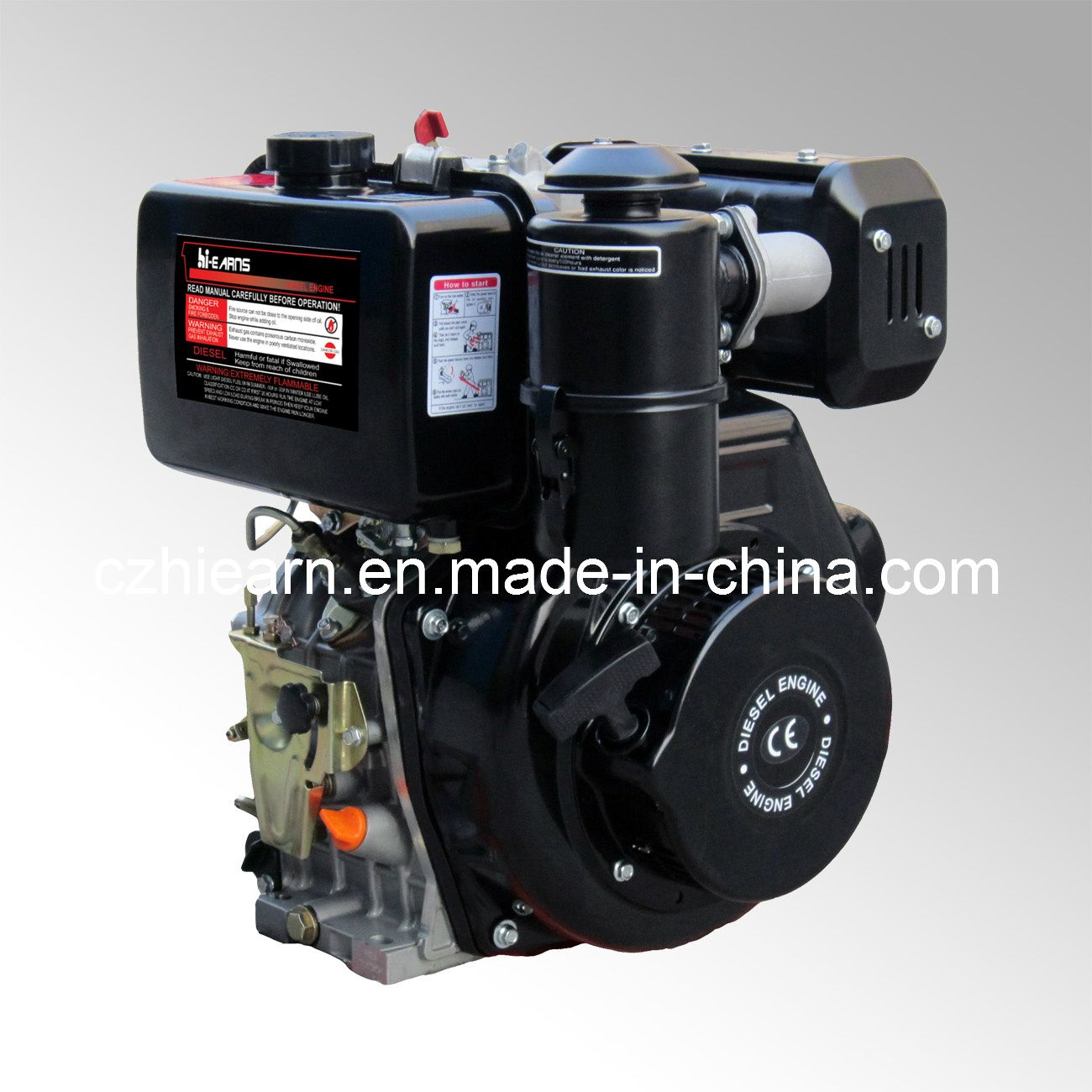

Engine model: 10HP 4-stroke power Diesel Engine featured generator (HR186FA)
Engine power: 10 HP 3000/3600 RPM
Can choose recoil or electric start system;
*All spare parts passed Strict and Accurate raw material detection(IQC);

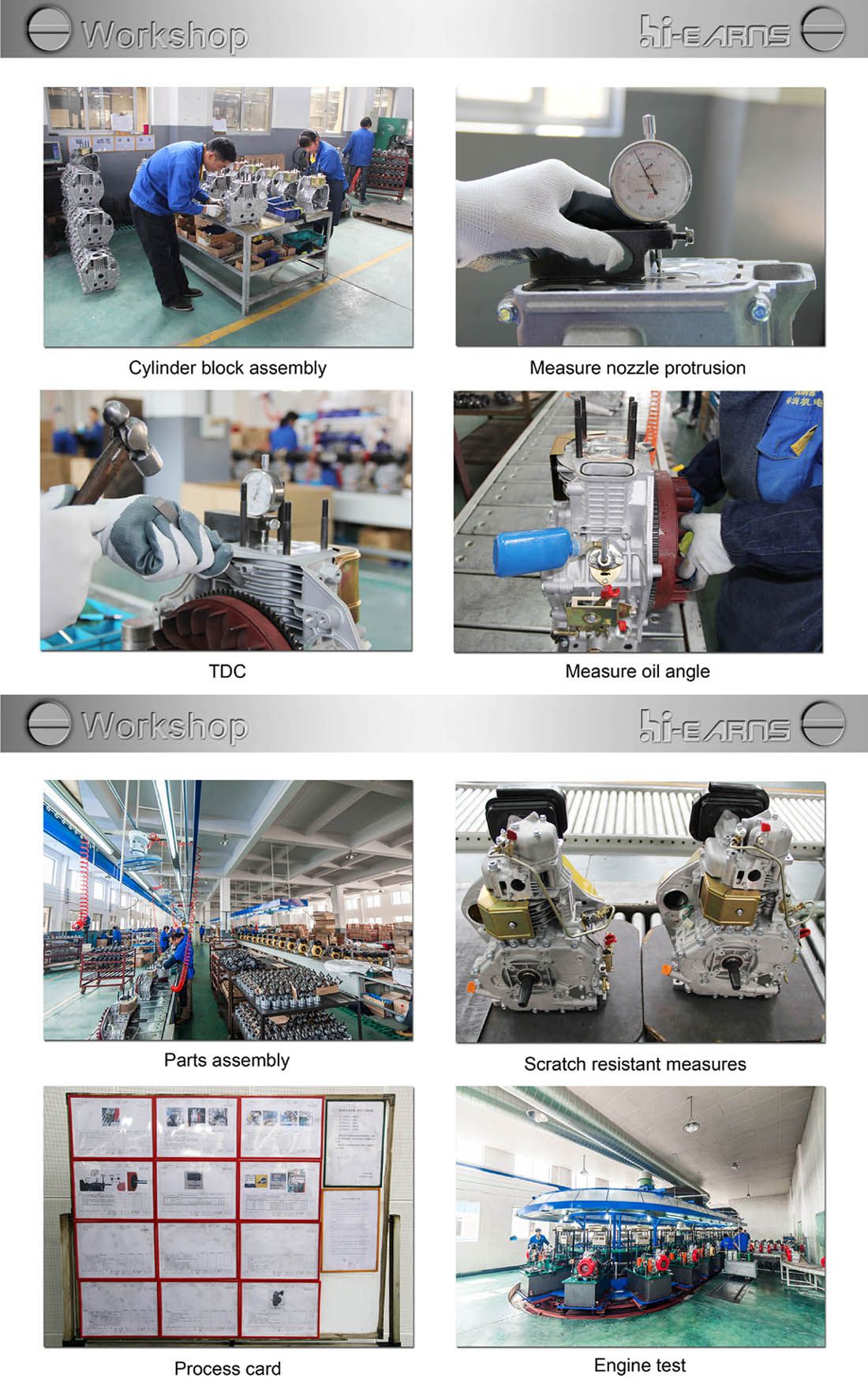

*Modern production line and advanced machines ensure a fast and exact spare parts combination!

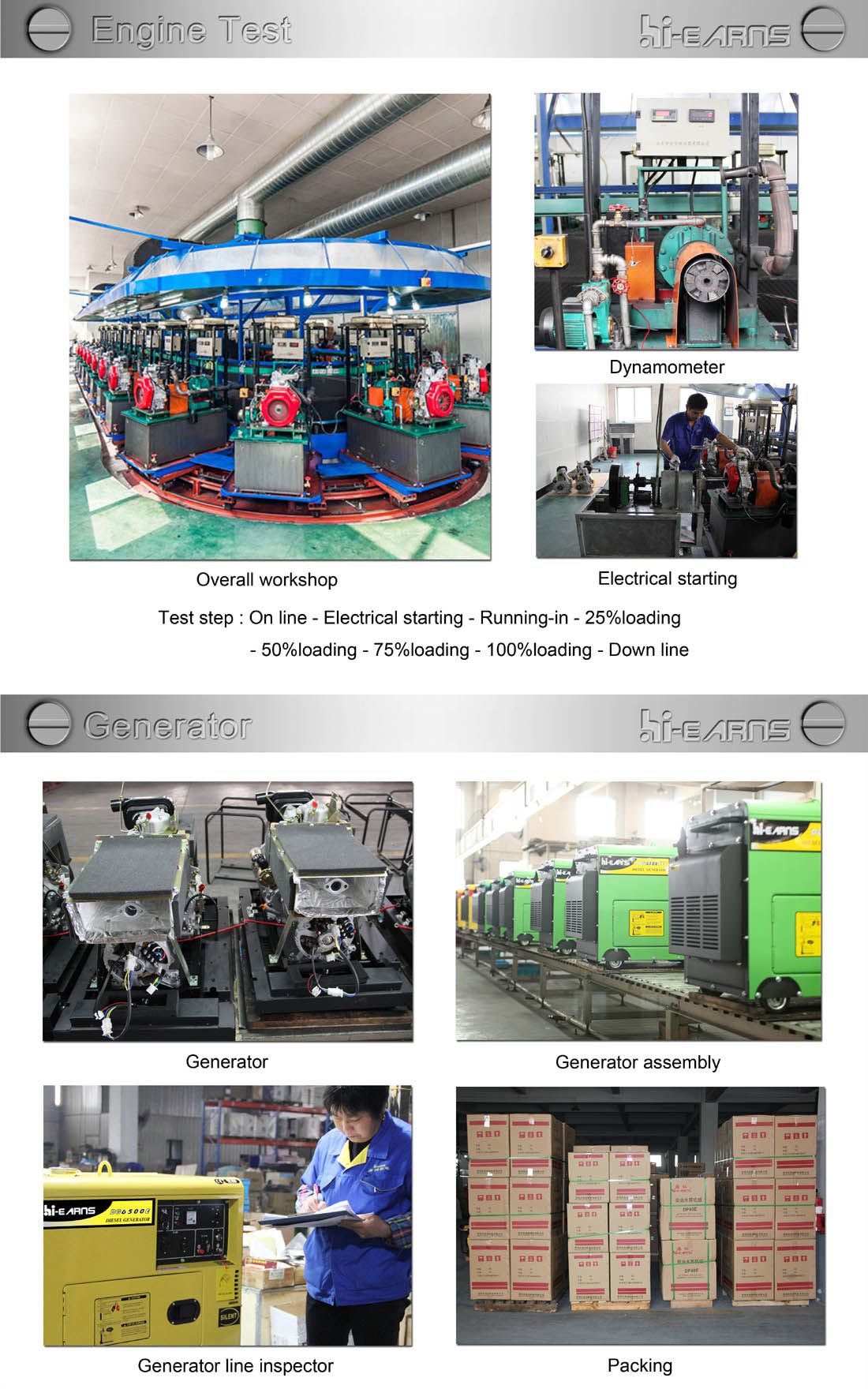

*Then the engines should pass our strict test standard by the Hydraulic torque dynamometer, advanced test machine ensure each engine have a 40 minutes test at least!
*At last, adjust the air valve, install the fuel tank, sticker. All finished products detection Match ISO standard.
*Froth with carton packing ensure engines beautiful and no damage!
We are professional manufacture of diesel engines(4-14HP), diesel generator(2-1000KW), diesel water pump(1.5-6Inch), I think we must have one type even more can match what you need!
Just send us your inquiry, we will high appreciate it!
|
Model |
HR170F |
HR178F |
HR178FA |
HR186F |
HR186FA |
HR188FA |
|
Type |
Single-cylinder, vertical, 4-stroke air-cooled diesel engine |
|
Combustion System |
Direct Injection |
|
Bore× Stroke(mm) |
70× 59 |
78× 62 |
78× 64 |
86× 70 |
86× 72 |
88× 75 |
|
Displacement capacity(cc) |
227 |
296 |
306 |
406 |
411 |
438 |
|
Speed(rpm) |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
|
Horse power(hp) |
4 |
6 |
7 |
9 |
10 |
12 |
|
Max. output(kw) |
2.8 |
3.0 |
4.1 |
4.4 |
4.3 |
4.6 |
6.3 |
6.9 |
6.5 |
7.1 |
7.5 |
8 |
|
Rated output(kw) |
2.5 |
2.8 |
3.7 |
4.0 |
3.9 |
4.2 |
5.7 |
6.3 |
5.9 |
6.5 |
7 |
7.5 |
|
Fuel |
o#or-10#light diesel oil |
|
Fuel oil tank volume(l) |
2.5 |
3.5 |
3.5 |
5.5 |
5.5 |
5.5 |
|
Lubricatiom oil volume(l) |
0.75 |
1.1 |
1.1 |
1.65 |
1.65 |
1.65 |
|
Fuel oil consumption rate(g/kw. h) |
285 |
≤ 283 |
≤ 285 |
≤ 278 |
≤ 280 |
≤ 280 |
|
Starting system |
Recoil or Electric |
|
PTO rotation direction |
It is clockwise as viewing from the flywheel end |
|
Dimension(mm) |
332× 348× 416 |
383× 412× 450 |
417× 470× 494 |
417× 470× 494 |
|
Net weight(kg) |
27 |
35 |
35 |
48 |
48 |
52 |
Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.
Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
