Products introduction Control system

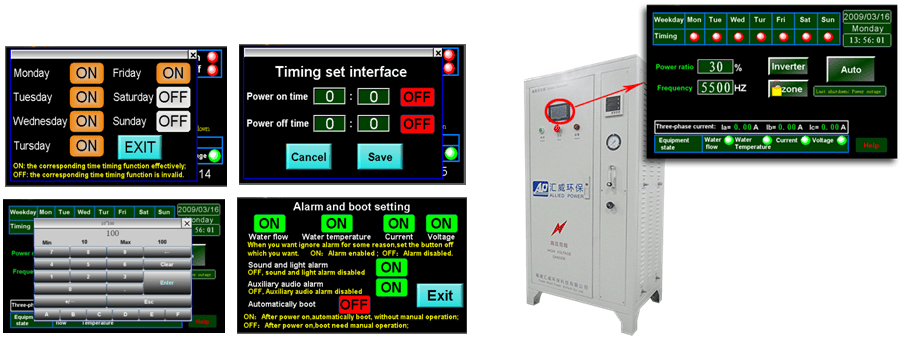

One-touch operation:Touch screen for human-machine interface which is automatically controlled by microcomputer.
Power System

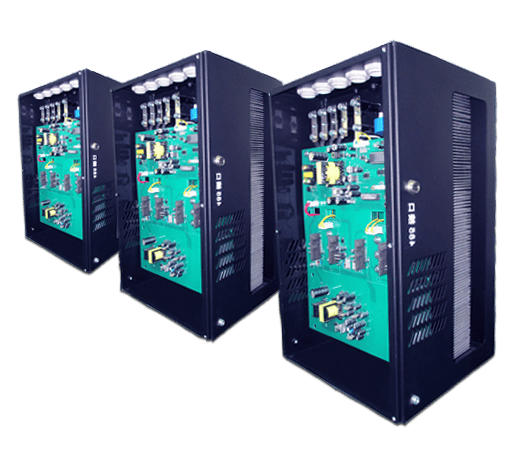

All Allied Power's ozone generators adopt high- frequency, high-voltage inverter power supply, The power system manufacture by our own, with the advantages of low comsumption, high efficiency, stability.
Ozone reaction system
Chamber:Material of chamber is Stainless steel 304, adopts advanced processing technology and CNC precision lathe with good seal performance.
Ozone generation unit: Unlike enamel tubes or traditional big quartz glass tubes, Allied Power introduces smaller quartz glass tubes, with the advantages of high concentration, less ozone output decay and don't need to replace tubes.
Corona discharge: With smaller quartz glass tubes, Allied Power's ozone generators ozone generate by double micro-gap corona discharge, chamber becomes smaller, efficiency become higher.
Efficiency& reliable
Power factor>0.95.
PFC≥0.95
The adverage power consumption of per kilogramozone output is about 7 degree.
Ozone concentration could reach 230mg/l with pure oxygen asgas feed.
Multiple abnormality protection. Light alarm system.
Easy operatiion
Ozone concentration adjustable.
Ozone production adjustable.
Time switch machine Settings, realize unattended.
Transport gas without any external equipments during certain scope.
Group control function, digital remote monitoring
Real-time analysis and system failure diagnosis.
About Us
With advanced technology, mighty R&D and hard work, Allied Power base on ozone generating mechanism and ozone application research, ozone equipment manufacturing, devote to environmental protection, against industrial pollution.
Allied Power has developed most efficient and reliable ozone generator with output from 10g/h to 50kg/h. Our ozone generators adopt medium dielectric barrier corona discharge (DBCD) technology, quartz glass tubes with micro-discharge chamber and SS304 tubes as dielectric medium, ensure high ozone concentration, stable operation. Not only high technology in ozone generating mechanism, we also own international patents on soft-switch power system. Our high frequency inverters power rated could over 440KW, high frequency reach 30KHZ.
Being applications in drinking water, wastewater, process water, industrial oxidation , bleaching, deodorization, waste gas treatment, space disinfection etc., our products have widely used in North America, South America, South-East Asia, Middle East and Europe.
Parameters
Air supply Ozone generator
Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
HW-A-10 | 10g | 0.1m3/h | 0.2kw | 8.3N*L/min |
HW-A-20 | 20g | 0.1m3/h | 0.4kw | 16.7N*L/min |
HW-A-30 | 30g | 0.1m3/h | 0.6kw | 25N*L/min |
HW-A-50 | 50g | 0.2m3/h | 1kw | 41.7N*L/min |
HW-A-80 | 80g | 0.3m3/h | 1.5kw | 66.7N*L/min |
HW-A-100 | 100g | 0.4m3/h | 1.7kw | 83.3N*L/min |
HW-A-150 | 150g | 0.6m3/h | 2.5kw | 7.5N*m3/h |
HW-A-200 | 200g | 0.8m3/h | 3.4kw | 10N*m3/h |
HW-A-250 | 250g | 1m3/h | 4.4kw | 12.5N*m3/h |
HW-A-300 | 300g | 1.2m3/h | 5.1kw | 15N*m3/h |
HW-A-500 | 500g | 2m3/h | 8.5kw | 25N*m3/h |
HW-A-800 | 800g | 3.2m3/h | 136kw | 40N*m3/h |
HW-A-1K | 1kg | 4m3/h | 17kw | 50N*m3/h |
HW-A-1.2K | 1.2kg | 5m3/h | 21kw | 60N*m3/h |
HW-A-1.5K | 1.5kg | 6m3/h | 26kw | 75N*m3/h |
HW-A-3K | 3kg | 12m3/h | 51kw | 150N*m3/h |
HW-A-5K | 5kg | 20m3/h | 85kw | 250N*m3/h |
HW-A-10K | 10kg | 40m3/h | 170kw | 500N*m3/h |
HW-A-20K | 20kg | 80m3/h | 340kw | 1000N*m3/h |
Oxygen supply ozone generatorProduct Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
HW-O-10 | 10g | 0.1m3/h | 0.1kw | 1.7N*L/min |
HW-O-20 | 20g | 0.1m3/h | 0.2kw | 3.3N*L/min |
HW-O-30 | 30g | 0.1m3/h | 0.3kw | 5N*L/min |
HW-O-50 | 50g | 0.1m3/h | 0.5kw | 8.3N*L/min |
HW-O-80 | 80g | 0.15m3/h | 0.8kw | 13.3N*L/min |
HW-O-100 | 100g | 0.2m3/h | 0.9kw | 16.7N*L/min |
HW-O-200 | 200g | 0.4m3/h | 1.8kw | 2N*m3/h |
HW-O-300 | 300g | 1m3/h | 2.5kw | 3N*m3/h |
HW-O-500 | 500g | 1m3/h | 4.3kw | 5N*m3/h |
HW-O-700 | 700g | 1.4m3/h | 6kw | 7N*m3/h |
HW-O-800 | 800g | 1.6m3/h | 7kw | 8N*m3/h |
HW-O-1K | 1kg | 2m3/h | 8.5kw | 10N*m3/h |
HW-O-2K | 2kg | 4m3/h | 17kw | 20N*m3/h |
HW-O-2.5K | 2.5kg | 5m3/h | 22kw | 25N*m3/h |
HW-O-3K | 3kg | 6m3/h | 26kw | 30N*m3/h |
HW-O-5K | 5kg | 10m3/h | 45kw | 50N*m3/h |
HW-O-10K | 10kg | 20m3/h | 85kw | 100N*m3/h |
HW-O-30K | 30kg | 60m3/h | 260kw | 300N*m3/h |
HW-O-50K | 50kg | 100m3/h | 440kw | 500N*m3/h |
Ozone water generatorProduct Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
HW-OW-10 | 10g | 0.1m3/h | 0.8kw | 1.7N*L/min |
HW-OW-20 | 20g | 0.1m3/h | 0.9kw | 3.3N*L/min |
HW-OW-30 | 30g | 0.1m3/h | 1.1kw | 5N*L/min |
HW-OW-50 | 50g | 0.1m3/h | 2.2kw | 8.3N*L/min |
Based on ozone technology, Fujian Allied Power EnTech Co., Ltd is a new high-technology enterprise which specializes in the line of ozone generation mechanism, ozone application, ozone material research and ozone equipment making. We cater to diversified industries and applications, which includes drinking water treatment, sewage treatment, swimming pools, public fields in hospital, pharmacy, paper making, printing and dyeing, etc. With an experienced Research & Development team, the company creates and produces the full series of ozone equipment based on the advanced technology and the right market location. We have the intellectual property of the whole series of ozone equipment core accessories. In a full range from the inverter to ozone discharge system, we apply a series of patented technology; We solve the matching problem between the power supply and discharge system to the full extent; We advance the efficiency and concentration of ozone generation. Then, the overall system of ozone generator has been recognized and appreciated by a lot of customers for its excellent reliability. Our company puts its business creed as "Allied technology, perfect quality. " We dedicates ourselves to the manufacture and technology innovation of ozone equipment and do our best for economic development and environmental protection.
